What Is the Rapid Injection Molding Process and How Does It Work?

Have you ever wondered how plastic items come into existence? I know I have! Let’s dive into the exciting world of rapid injection molding together.

Rapid injection molding is a faster manufacturing process using specialized machines and optimized mold designs to improve efficiency and reduce cycle times, enabling quick plastic part production, commonly used in the consumer electronics industry.

I am very excited to share my thoughts on rapid injection molding. This will include topics from choosing machines to designing cooling systems. Designers of all levels can really gain from knowing these details. This knowledge can truly improve your product development skills.

Visualize the joy of watching your designs quickly come to life. Rapid injection molding makes this dream possible! It is not just about speed. Precision and quality really help your products shine in the market.

What are the Key Advantages of Rapid Injection Molding?

Have you thought about how factories always produce high-quality products very quickly? Let’s explore rapid injection molding. This method offers incredible benefits. It truly transforms the industry.

Rapid injection molding offers fast production, shorter cycle times, improved product quality, and flexible design options, making it ideal for prototypes and large-scale production.

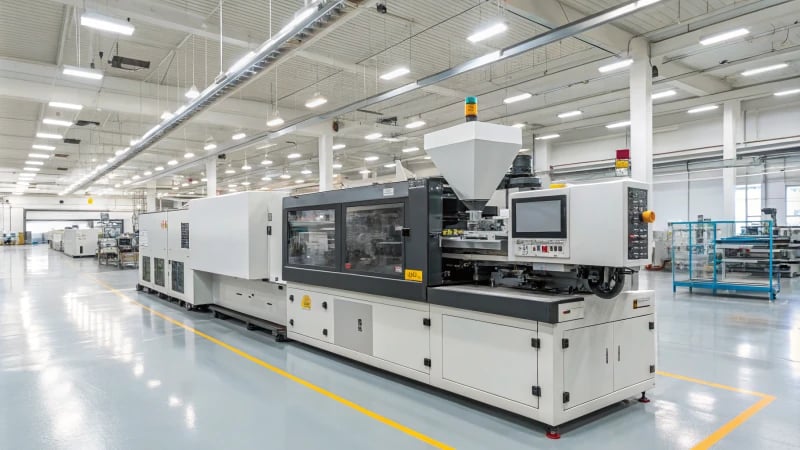

High-Speed Injection System Setup

I recall my first experience with rapid injection molding. It felt like entering a world where speed and efficiency ruled. I was involved in a project that needed quick results without losing quality. This is when I found the value of this technology. It seemed like I had unlocked a secret tool for design.

Rapid injection molding boasts remarkable speed due to its specially designed high-speed injection systems. This includes the careful selection and configuration of injection molding machines that can handle high pressures and speeds.

For example, these machines can achieve injection speeds of several hundred millimeters per second, ensuring efficient delivery of plastic melts to the mold.

Additionally, the choice of plastic raw materials is crucial; high-fluidity thermoplastics like polycarbonate (PC) and acrylonitrile-butadiene-styrene (ABS) are preferred. Proper pretreatment, such as drying the materials at specific temperatures, ensures optimal fluidity and quality.

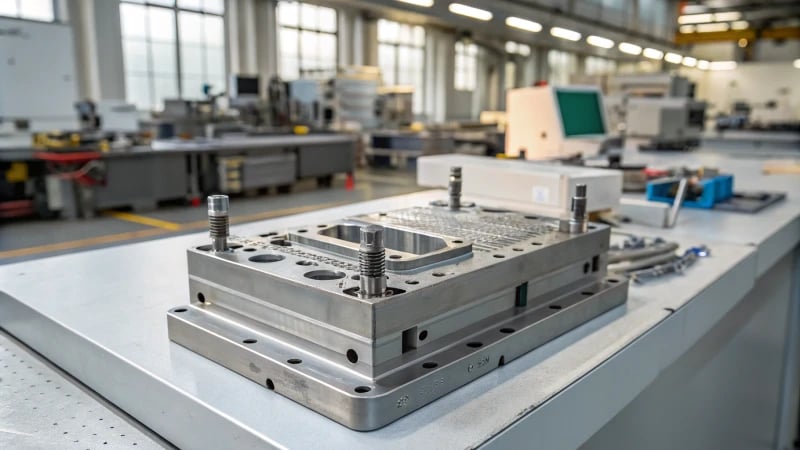

Mold Design and Setup

The mold design is also crucial. I once spent many hours optimizing a runner system for a project. This effort was significant. We shortened the melt flow path, reducing pressure loss and boosting production speed.

Runner System Optimization

In rapid injection molds, the runner system is optimized to shorten the melt flow path and reduce pressure loss.

This setup enhances the flow rate, allowing for faster injections.

Cooling System Design

Efficient cooling systems are essential for rapid production. Conformal cooling channels are used to ensure uniform cooling, significantly shortening cycle times.

Quick Injection Molding Operation

The injection process is thrilling to observe! High-speed filling of plastic into the mold looks like a perfect dance. It’s fast, accurate and avoids early cooling. This is vital for creating thin electronic housings.
Seeing a flawless molded part come out of the machine was very satisfying. No defects, just excellent quality! Better temperature control and rapid cooling systems led to faster cooling times than before. It was really amazing to witness.

Precise Pressure Holding and Rapid Cooling

A shorter pressure holding time is achieved due to improved temperature distribution, enhancing production efficiency by reducing cooling time by 30% – 50% compared to traditional methods.

Rapid Demolding and Cycle Production

Fast demolding keeps production smooth. I once worked with an optimized ejection system using hydraulic devices to quickly remove products from molds. The speed of completing one cycle and getting ready for the next was thrilling!
From my experience, these features not only speed up production but also keep quality high and costs low.
Efficient demoulding is a key factor in maintaining high production rates. An optimized ejection mechanism allows for quick removal of products from molds, which accelerates the entire cycle time.

Overall, rapid injection molding truly shines in manufacturing: it is efficient, effective and very versatile. If you really want to explore this topic more, there’s plenty more to learn!

How Do You Select the Right Injection Molding Machine?

Discovering the ideal injection molding machine seems daunting. But it is vital for reaching production success. Here are insights that helped me on this path. They had a big impact. A very big impact.

To select the right injection molding machine, evaluate shot size, tonnage, material compatibility, and production needs. Consider features like injection speed and cooling efficiency to enhance productivity, ensuring choices align with goals and budget.

Understanding Injection Molding Machine Selection Criteria

In the beginning of my journey in the manufacturing world, picking an injection molding machine seemed like searching for a needle in a haystack. I remember standing in the factory. Machines surrounded me. They all looked similar. Yet, each machine had different strengths and weaknesses. Over time, I learned something important. Selecting the right machine isn’t just about specifications. It’s about knowing your needs well. Each machine must fit those needs.

Here are some important factors I have learned to value:

1. Shot Size: Determine the amount of plastic material you need for each cycle. This will dictate the machine’s capacity and affect your production efficiency.
2. Tonnage: Assess the clamping force necessary to keep the mold closed during injection. Higher tonnage is essential for thicker products or those with complex geometries.
3. Material Types: Choose a machine compatible with the specific plastic materials you intend to use. High-speed machines are often preferred for thermoplastics, especially those with high fluidity like polycarbonate¹ and ABS².

Evaluating Machine Features

In addition to the basic criteria, various machine features can enhance productivity:

• Injection Speed: Machines designed for rapid injection typically have specialized systems that allow for higher speeds and pressures. Look for machines that can achieve several hundred millimeters per second in injection speed, as this can reduce cycle times significantly.
• Mold Compatibility: Ensure that the machine’s specifications align with the mold design, particularly for hot runner systems that maintain melt temperature and improve flow rates.

Analyzing Production Needs

Before making a selection, it’s vital to analyze your production needs thoroughly:

• Production Volume: Determine whether you need a machine for high-volume production or smaller batches. This will influence your choice between standard and specialized machines.
• Product Complexity: Complex shapes may require advanced mold designs and specific injection techniques, making it critical to choose a machine that accommodates these requirements.

Future-Proofing Your Investment

Consider long-term factors that could impact your decision:

• Energy Efficiency: With rising energy costs, selecting an energy-efficient injection molding machine can lead to significant savings over time. Explore options that incorporate advanced technology to optimize energy use.
• Maintenance and Support: Evaluate the availability of support and parts for the machine model you choose. Machines with robust support networks tend to minimize downtime and maintenance costs.

For additional insights on optimizing your injection molding processes, explore more about energy-saving techniques³ and material selection best practices.

What Materials are Best Suited for Rapid Injection Molding?

Have you ever thought about which materials truly improve your rapid injection molding projects? Let’s explore the best choices together. These materials provide efficiency and high quality in your work. High quality is important.

Polycarbonate, ABS, polypropylene, nylon, and polyethylene are ideal for rapid injection molding due to their excellent fluidity, thermal stability, and quick cooling properties.

Understanding Requirements for Rapid Injection Molding Materials

Rapid injection molding is a process that needs materials with specific traits. In my experience, the best materials have excellent fluidity, thermal stability, and they cool quickly.

Key Material Traits

• Fluidity: I remember watching molten plastic fill a mold for the first time. It was amazing! The way a material flows is vital in rapid injection molding. High-fluidity materials help the melt fill the mold quickly, reducing cycle times.

• Thermal Stability: Once, I worked on a project that failed due to poor thermal stability. I learned materials must withstand high temperatures without degrading. This prevents defects and keeps quality consistent.

• Cooling Rate: Watching a product cool quickly after injection is always exciting. Materials that cool rapidly can cut down production time, which is invaluable for high-volume manufacturing.

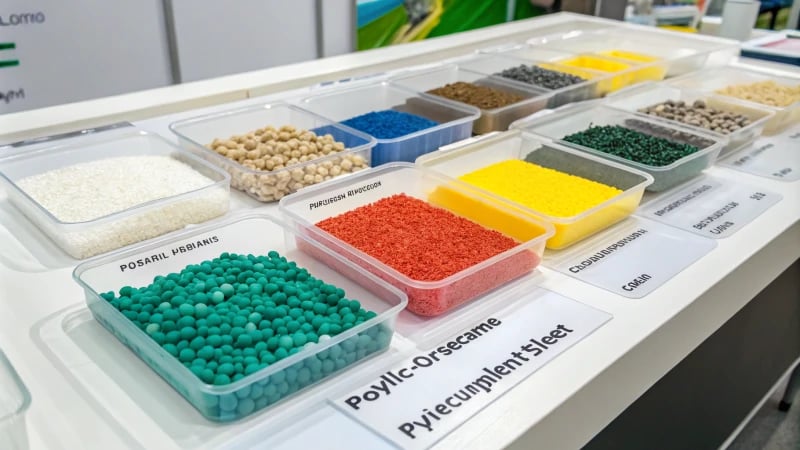

Top Materials for Rapid Injection Molding

Based on my experiences, some materials stand out as ideal for rapid injection molding:

Tips for Material Selection

When choosing materials for rapid injection molding, I found these tips really helpful:

• Analyze Product Needs: Think about your product’s purpose. For example, if you need transparency, polycarbonate is maybe your best choice. Learn more about material properties⁴.

• Understand Processing Needs: Every material is unique! For instance, ABS needs careful drying to avoid moisture-related defects. Explore drying techniques⁵.

• Balance Cost and Performance: Finding the right balance between cost and quality often feels tricky. High-performance materials look appealing but may be expensive. Find a balance.

More Considerations for Material Use

• Pretreat Raw Materials: Early on, I learned drying materials like PC before processing is very important. For PC, drying at 110-120℃ for 3-4 hours is needed to ensure good flow. Find out more about pretreatment⁶.

• Adapt Mold Design: Choose materials that match your mold design. If not, you might face longer cycle times and defects. I have witnessed it! Learn about mold design optimization⁷.

By knowing the traits and needs of different materials, I’ve made informed choices that improved both efficiency and quality in my rapid injection molding projects.

How Does Mold Design Impact the Rapid Injection Molding Process?

Have you ever thought about how mold design affects the rapid injection molding process? The mold’s design could either help the process or cause problems. Let’s explore the interesting connection between mold design and production results. Mold design truly matters.

Mold design is vital in rapid injection molding, enhancing flow rates, cooling efficiency, and demolding mechanisms, thereby increasing production speed and improving product quality.

The Importance of Mold Design in Rapid Injection Molding

Mold design plays a pivotal role in the rapid injection molding process, impacting both production efficiency and the quality of the final product. By optimizing the mold, manufacturers can greatly enhance the speed and effectiveness of their operations.

For example, an optimized runner system is essential for maintaining a consistent melt flow. The design of the main and branch runners can significantly influence pressure loss, which affects the overall speed of the injection process. Employing a hot runner system⁸ can keep the plastic in a molten state, ensuring a smoother injection.

Key Factors of Mold Design

Here are some critical aspects that demonstrate how mold design impacts rapid injection molding:

Runner System Optimization

The runner system’s design directly influences the flow rate of the melt within the mold. In rapid injection molds, optimizing the runner can minimize flow path length and pressure loss. Using a hot runner system allows the melt to remain in a molten state, thus avoiding cooling problems that can slow down production.

For instance, utilizing a pin-point gate design⁹ can enhance filling speeds while leaving minimal trace marks on the product surface.

Cooling System Design

Efficient cooling is crucial in rapid injection molding, as it impacts cycle time and product quality. Implementing conformal cooling channels that match the mold shape can ensure even contact with the cooling medium, leading to faster cooling rates.

• Benefits of Conformal Cooling:
  • Reduced Cooling Time: Can shorten cooling by 30% – 50% compared to traditional methods.
  • Enhanced Product Quality: Maintains temperature uniformity, reducing defects.

The Role of Ejection Mechanisms

Fast demolding is as essential as efficient filling and cooling. An optimized ejection mechanism, such as hydraulic or pneumatic systems, ensures quick and smooth ejection of parts from the mold. This aspect is crucial for maintaining high production rates in rapid injection molding environments.

• Key Benefits of Optimized Ejection:
  • Speeds up the overall injection cycle.
  • Reduces the risk of product damage during removal.

To summarize, mold design significantly impacts every stage of the rapid injection molding process. From runner systems to cooling efficiency and ejection mechanisms, thoughtful design choices lead to improved manufacturing outcomes and product quality. For further insights on optimizing your mold design for rapid injection processes, check this resource on mold optimization¹⁰.

What Steps Can Ensure Quality Control in Rapid Injection Molding?

Quality control in rapid injection molding is very important. It is not just a technical task. It shows our dedication to creating excellent products. Each item reflects this commitment. I follow specific steps for top-quality results every time.

Ensure quality control in rapid injection molding by focusing on quick injection system preparation, optimized mold design, precise filling processes, and efficient demoulding to improve product quality and reduce defects.

High-Speed Injection System Preparation

To really guarantee quality control in rapid injection molding, I learned a few important areas need attention. Preparing a high-speed injection system, designing the mold well, filling the mold accurately and removing the product efficiently are crucial steps. These aspects improve product quality and reduce defects. They ensure our creations meet high standards.

Injection Molding Machine Selection and Configuration: Choosing the right molding machine is like finding the perfect tool for a job. The machine must have a high-speed injection system that delivers strong pressure and fast speed. I remember setting up a screw with a high-torque motor. Watching it spin rapidly was thrilling. It showed how important it is to deliver the plastic quickly to the nozzle. Seeing systems reach speeds of several hundred millimeters per second is truly exciting!

Plastic Raw Material Pretreatment: Picking and treating plastic materials greatly affects quality. I usually go for thermoplastics like polycarbonate (PC) or acrylonitrile-butadiene-styrene (ABS) for their fluidity. I learned the importance of drying them properly early on; for instance, drying PC at 110-120°C for 3-4 hours is crucial. It’s a careful process but definitely worthwhile.

Mold Design and Preparation

Making an efficient mold design has become second nature and is essential for keeping quality control in rapid injection molding.

Runner System Optimization: The mold’s runner system impacts melt flow rate and evenness. Switching to hot runner molds was a revelation! Keeping the plastic molten speeds up filling and cuts defects drastically.
Here’s a simple comparison of runner systems:

Cooling System Design: Cooling is another key factor I appreciate deeply. Using conformal cooling channels that fit the product shape maintains uniform cooling and reduces cycle time significantly. This attention to detail boosts product quality.

Fast Injection Molding Process

Adopting best practices during injection is crucial.

High-Speed Injection Filling: Watching the plastic melt fill the mold at high speed is exhilarating! Fast filling prevents defects from early cooling, especially in thin-walled products like electronic housings. It’s fascinating to see the melt spread quickly in the cavity, keeping quality and appearance intact.

Precise Pressure Holding and Rapid Cooling: Managing pressure during holding was enlightening. I monitor shrinkage with precise pressure settings, cutting cooling time by 30%-50% compared to traditional methods due to efficient mold cooling systems. It’s rewarding to improve efficiency while keeping quality high.

Fast Demoulding and Cycle Production

Efficient demoulding methods have become routine, greatly improving overall production efficiency.

Optimized Ejection Mechanism: The ejection mechanism must act quickly! Using hydraulic or pneumatic systems removes products smoothly from the mold, enabling rapid transitions into the next cycle. Optimizations like these can truly transform production speed and efficiency.

Organizing my approach around these principles not only improves quality control but also boosts production efficiency. For those involved in manufacturing and product design, these steps are vital in achieving excellence and innovation.

Conclusion

Explore the rapid injection molding process, focusing on its efficiency, machine selection, mold design optimization, and material choices for high-quality plastic production.
