Welcome to the deep dive. Today we're going to be looking at the, like, the super detailed world of precision machining for mold design. So you guys shared some excerpts from an article called how can you enhance machining accuracy for parting surfaces in mold design? Hmm. And honestly, it's a lot more interesting than it sounds at first. Like, think about it. The perfectly smooth surface of your phone, all the tiny details on your car's dashboard, even a simple LEGO brick, all of these start with a mold. Right. And the accuracy of that mold, like down to the microscopic level, determines the quality of whatever you end up with.
Yeah.
We're going to focus specifically on something called parting surfaces, which is the point where the two halves of the mold come together. Apparently, getting those parting surfaces right is really, really important.
It is, yeah. Absolutely critical. You can almost think of it like a puzzle. If the pieces don't fit together perfectly, the whole picture is off. And with mold design, if the parting surfaces aren't accurate, you can run into a whole bunch of problems. You can end up with parts that don't line up. Right. Excess material, like, what's it called?
Flask.
And it can even make the mold super difficult to put together and take apart. Yeah. Ultimately, it all leads to a final product that's just not as good.
So it's not just like a little imperfection we're talking about here. Inaccurate parting surfaces can actually, like, mess up how the final product works.
Exactly. Yeah. It affects everything from, you know, how well parts fit together to the overall, like, the performance and durability of the thing you're making. Basically, precision in those parting surfaces is the foundation for making, you know, a high quality, reliable product.
That makes total sense. So how do manufacturers actually achieve this, like, crazy level of precision? The article mentioned something called CNC machining centers. Are those like the, like the robots of the manufacturing world, the super precise ones?

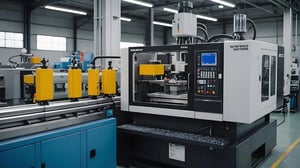

They're pretty close. Yeah. These CNC machining centers, they're kind of like the workhorses of mold making. They're capable of some serious accuracy. We're going talk about positioning tools with accuracy of + or -0.005 millimeters.
Okay. I gotta admit, I have no idea how small that is.
Yeah.
Can you, like, can you put that into perspective for me?
Imagine a human hair. We're talking five times thinner than that.
Wow, that's tiny.
They actually have these online measurement systems built in that give them real time feedback while they're working. So they can make tiny little adjustments as they go to stay that accurate.
That's like they're. They have eyes, microscopic eyes, constantly checking their work. The article also talks about using the right tools. Is that really that important when you've already got these super precise machines?
Oh, absolutely, yeah. Just like, you know, a surgeon wouldn't use a kitchen knife for a delicate procedure, mold makers need specific tools for all the different tasks. So for complex curved surfaces, they often use these things called ball end milling cutters. And those are specifically made to smoothly follow the curves. You know, leaves a clean finish with, like, barely any residue.
So it's not just about having a fancy machine. The tools themselves actually matter a lot. What about the material of the tools? Does that make a difference?
Definitely. Especially for high speed cutting because the tools are under so much pressure and friction. So for that, carbide cutters are really the best. They're hard and they resist wear. So they're perfect for staying precise even under, like, extreme conditions.
That makes sense. You need a tool that can handle making these really detailed molds. So we've got the super precise machines and the specialized tools. We're all set for perfect molds then, right?
Well, not quite. There's another layer of complexity. It's all about how those tools are actually used.
Okay, now I'm really interested. What do you mean by how the tools are used? Sounds like there's more to it than just turning on the machine.
Yeah, it's all about something called cutting parameters. These parameters basically tell the tool how to interact with the material you're machining. It's kind of like a really precise dance between the tool and the material. There are three main ones. Cutting speed, feed rate, and depth of cut.
Okay, break those down for me. What do those actually control? Sure.
So cutting speed is how fast the tool is spinning. Feed rate is how quickly the tool moves through the material. And then depth of cut is how much material is removed with each pass.
So it's not just like a, you know, set it and forget it type of thing?
No, not at all. Each of those parameters has to be adjusted perfectly. You have to consider the material and what you're trying to make. For example, faster cutting speed might seem like it would give you a smoother finish, but it can also wear down your tool faster, which then affects the overall precision.
Oh, so there's a trade off there. It's about finding that perfect balance. How do manufacturers actually figure out the best settings for each mold? Seems like there's a lot of room for error.
There is. Yeah. That's where the expertise of the machinists comes in, they use their experience, they do a lot of testing and even simulations to figure out the best combo of parameters for each job. It's a balancing act between getting the precision right, the surface finish, and making sure the tool last.
So they're like the conductors of this, this microscopic orchestra, making sure all the instruments are playing together. What happens when you need to go faster? Say you're doing mass production? Does that mean you have to sacrifice accuracy?
Not necessarily, no. There are these advanced techniques that actually let you go faster, A and D, be more accurate at the same time. One of them is called high speed cutting, or hsc.
Wait, hold on. Going faster and being more accurate, how does that even work?
It seems counterintuitive, right? But HSC works because it reduces cutting forces and vibration. So by spinning the tool incredibly fast, the cutting action actually becomes smoother and more controlled, which gives you a more precise surface and a faster production time.
Wow. So it's not just about speed. It's about using that speed to create a more stable and precise cutting process. That's incredible. What happens when HSC isn't the right technique or you're working with, like, super hard materials?
For those cases, there's another really interesting technique called precision electric discharge machining, or edm.
Edm? Okay, now you've got my attention. How does that work?
Imagine eroding material with, like, tiny little lightning bolts, but controlled with incredible precision. That's basically edm. It uses electrical discharges to shape even the toughest materials, getting details that would be impossible with regular cutting tools.
It's like a microscopic lightning sculptor. That's pretty cool.
It is, yeah. EDM is especially good for working with those super hard mold materials that would destroy normal tools. It opens up a lot of possibilities for mold design and complexity.
This is also fascinating. It sounds like you need a mix of cutting edge technology and incredible skill to get this level of precision in mold making.
Oh, absolutely. It's a real testament to, you know, human ingenuity and our constant drive to make manufacturing processes better and more refined.
I bet our listener is glued to their seat right now, just soaking all this in. But even with all this technology and skilled machinists, things can still go wrong. Right. What happens when a mold doesn't quite meet those. Those super tight tolerances?
You're right. Nothing's perfect. That's why quality inspection is such a crucial part of making molds. It doesn't matter how sophisticated your machines or tools are, you still gotta check that the final product is exactly right. And for that, we Use another incredible piece of tech called a coordinate measuring machine or C NM cmm.
Okay, tell me more about these machines. Are they like the quality control superheroes of mold making?
You could say that, yeah. CMMs are like the precision detectives of manufacturing. They use probes to measure the dimensions and positions of all the molds features and make sure they match the design perfectly.
How precise are we talking here?
CMMs can measure down to plus or minus 0.001 millimeters. That means they can spot deviations even smaller than the CNC machines can make.
Wow. That's pretty impressive. So what happens if the CMM finds something wrong? Do they just scrap the whole mold and start over?
Not always, no. While scrapping is the last resort, skilled machinists have a bunch of techniques to fix these tiny flaws.
So it's like a microscopic tune up for the mold?
Exactly. They might use hand grinding for surfaces that are a little uneven or even EDM to adjust hard to reach areas or tiny details.
I'm starting to realize that this whole process is a crazy mix of cutting edge tech. And like the careful touch of a skilled craftsperson.
It is. Yes. This constant interplay between pushing the limits of precision with these advanced machines and then relying on human experts to make sure the final product is perfect.
I'm already looking at everyday objects in a completely new light. I never realized how much complexity goes into making something as simple as, like a plastic bottle cap.
It's a hidden world that most people don't even think about. But once you understand how mold making works, it changes your whole perspective.
I totally agree. This deep dive has been a real eye opener, and we're just getting started. We'll be back in a moment to dive even deeper into the world of precision machining. Don't go anywhere. There's so much more to explore. Welcome back. Before the break, we were Talking about how CMMs are like quality control detectives, catching imperfections that are just ridiculously small. It's incredible. You mentioned that expert machinists have some tricks for fixing those flaws that the CMM might find. It's not like they just toss the whole mold out and start over. Right? Right.
No. Scrapping a mold is a last resort, Especially after all the time and effort that's already gone into it. Think of it more like a microscopic tune up. So for little imperfections on the surface, they can use hand grinding to smooth things out. It's a super delicate process. It's a real blend of high tech precision. And like the steady hand of a.
True craftsman, it Sounds like an art form in itself. Combining that precision, like the touch of a real artisan. What about those really hard to reach spots with the really intricate details? Hand grinding can't be the solution for everything, can it?
You're right. Yeah. That's where EDM comes back in our microscopic lightning sculptor. It's not just for the initial shaping. EDM can also be used for these, like, unbelievably precise adjustments. It's almost like having a microscopic eraser that can remove material with pinpoint accuracy.
So EDM is like a multi tool. It can handle both the big shaping and those tiny corrections. It's amazing how much control they have over those electrical discharges. All this really shows you how much attention to detail goes into making these molds. Makes you really appreciate the effort behind even the simplest plastic products.
It does, yeah. Mold making is this whole hidden world of precision and expertise. It takes a real team effort involving engineers, machinists, quality control specialists, all working together to create the tools that literally shape our lives.
It's like a perfectly choreographed dance. Everyone playing their part to achieve this insane level of accuracy. Makes me wonder, what does it take to become one of these master mold makers? Like, what kind of skills and training do you need to get into this world of microscopic precision?
It's a really specialized field. You need this unique mix of technical know how, patience, and a super meticulous eye for detail. Mold makers aren't just pushing buttons. They need a deep understanding of the materials, the machining processes, and the quality control principles. They also got to be adaptable, you know, good at solving problems, because every mold has its own unique challenges.
So it's a good career path for people who like working with their hands, who like solving problems, and who, like, thrive in that kind of environment where everything has to be perfect.
Exactly. Yeah. And don't forget the satisfaction of seeing your creations come to life. You know, those everyday objects that people use and rely on, it's a real tangible connection between their skill and, like, the stuff that fills our world.
That's right. Knowing that the phone in my hand or the container holding my lunch started with a mold made by a skilled person, it gives you a whole new level of respect for those objects. This whole deep dive has been. It's been eye opening.
I'm glad to hear that. And, you know, it's not just about appreciating how complex the process is. Understanding these principles can help you ask better questions, make better decisions. Whether you're involved in designing products or you're just a Curious consumer.
That's a great point. Whether you're an engineer designing a new product or just someone trying to make sustainable choices, knowing the basics of mold making can be really helpful. It helps you understand what goes into a product's quality, how durable it is, even its environmental impact.
Exactly. Yeah. It's about connecting the dots between design, manufacturing, and the final product. It lets you think more critically about the things you use every day and make better choices.
This whole conversation has given me a totally new perspective on, like, everything around me. It's like seeing the world through a different lens. One that shows you all the hidden craftsmanship behind so many everyday things. Speaking of seeing things differently, are there any new trends or technologies on the horizon that are going to change mold making?
That's a great question. And the industry is always evolving, always looking for ways to improve. One area that's really exciting right now is the development of new materials for molds. There's this growing need for molds that can handle higher temperatures and pressures, and materials that are more sustainable and environmentally friendly.
Yeah, it makes sense that materials would be a key focus. As technology and manufacturing processes get better, the materials have to keep up. Can you give me some specific examples of these new materials and how they're being used?
Sure. So one example is the research being done on these advanced metal alloys. These alloys are like super strong and durable, but they're also lighter and more resistant to wear and tear, which makes them perfect for things like aerospace and automotive, where performance and efficiency are really important.
So it's this constant search for that, that sweet spot between strength, weight and durability. What about the push for more sustainable materials? Are there any breakthroughs happening there?
Yeah, there are some promising developments in that area. Researchers are looking into using bio based polymers and composites as alternatives to traditional mold materials. These materials come from renewable resources, which makes them a much more eco friendly option. They're still pretty early in development, but they have a lot of potential for making mold making more sustainable.
It's good to hear that sustainability is a priority in this field. Are there any other trends or technologies that you're particularly excited about?
One that's really shaking things up is 3D printing. It's been around for a while, but the improvements in materials and printing techniques are making it a real contender for making molds, especially for prototyping and small scale production.
I can see how 3D printing would be a game changer. It gives you so much more flexibility and speed in the design and prototyping phase. Do you think it's going to replace traditional mold making completely.
I don't think it'll fully replace traditional methods, at least not anytime soon. But as 3D printing technology gets even better, we could see it playing a much bigger role, maybe even for mass production in some industries.
It sounds like the future of mold making is wide open. What an exciting time to be involved in this field.
It is. Yeah. It's an industry that's driven by innovation, always pushing the limits.
Yeah.
And it's all happening behind the scenes, quietly shaping the products that we use every day.
We've covered a lot of ground today, from the precision of CNC machining to the potential of 3D printing and the search for sustainable materials. It's amazing how much goes on behind the scenes to make the things we often take for granted. But we're not done yet. We'll be right back after a quick moment to wrap up this Deep Dive and leave our listener with some final thoughts to ponder. Welcome back to the Deep Dive. We've been on quite a journey today, exploring the world of precision machining for mold design.
It has been. Yeah. A real eye opener.
Before we wrap up, I want to touch on something we talked about earlier. The importance of, like, understanding this stuff, not just for manufacturers, but for anyone involved in designing or developing products.
Absolutely. Knowing how mold design works and what affects the accuracy can really help you make better decisions throughout the whole process. Like imagine a designer who knows the ins and outs of different molding techniques. They can create designs that look great and are easy to manufacture. It's like they're speaking the same language as the people who are actually going to be making their designs a reality.
Yeah. It sounds like that would make things so much smoother and more efficient. Fewer mistakes, fewer redesigns later on.
Exactly. Yeah. And it's not just about avoiding problems. Knowing this stuff can actually spark innovation. By understanding the possibilities and limitations of mold making, you can push the boundaries and come up with some really creative solutions.
That's so true. It's like a whole new world of design possibilities opens up when you know you have the tools and techniques to make even the most ambitious ideas actually work.
Exactly. It lets you think outside the box, challenge the norms, and create products that are truly innovative.
So whether you're an engineer, a designer, an entrepreneur, or even just someone who's curious about how things are made, understanding mold design can be a game changer.
It is. Yeah. It's a journey of discovery that leads to better decisions, better products, and just a deeper appreciation for the craftsmanship. Behind the things we use every day.
We've explored so much today. The precision of CNC machines, hand finishing, the crazy capabilities of EDM, the potential of 3D printing. And honestly, I feel like we've only just scratched the surface.
Yeah, that's the beauty of it. There's always more to learn, more to explore, more to discover. The world of manufacturing is constantly evolving, always pushing the limits of what's possible.
So as you go about your day, take a moment to just like, look around you. The phones, computers, cars, appliances, all of it shaped by the invisible hand of mold making.
And remember, behind every smooth surface, every intricate detail, there's a story of precision innovation and human ingenuity.
That's a fantastic way to wrap up our deep dive into the world of mold design and precision machining. Thanks for joining us. Until next time, keep exploring, keep learning and keep wondering about the hidden complexities that shape our world.
