Hey everyone, and welcome back for another deep dive. Today we are talking all about extrusion.
Extrusion?

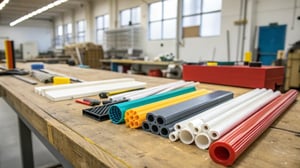

Yeah, extrusion. You know, like making pipes and tubes and window frames and all that. All that stuff. Basically anything with a continuous shape.
Oh, okay.
I see we've got some excerpts from articles all about the extrusion process, the materials, and even some really cool advancements.
Okay, cool.
So are you ready to get extruded?
Uh huh. Yeah, let's do it.
All right, so to kick things off, can you give us a, like a simple breakdown of how extrusion actually works? I mean, for someone who's never seen it before.
Sure. Yeah. So imagine you have like a lump of clay.
Okay.
And you want to make a long, thin snake. You push it through a hole with your fingers. Right. Extrusion is kind of like that, but on an industrial scale and with much cooler materials, obviously. So you take your raw material, could be plastic, metal, even food, heat it up until it's soft and moldable, and then you force it through a specially shaped die, which gives it its final form.
Okay, so that explains the continuous shape part.
Right.
But why is, why is choosing the right material so important?
Yeah.
Is it just about like how meltable it is?
Well, it's, it's definitely more than that. The materials properties play a huge role in the final product. Strength.
Okay.
Flexibility and, and even how it looks and feels. So think about PVC pipes.
Yeah.
They're lightweight, durable, and, you know, relatively inexpensive, which is why they're used so much in plumbing. But you wouldn't use PVC for, you know, airplane parts.
Right? Yeah.
You need something much stronger, like aluminum.
Oh, yeah.
Which has an incredible strength to weight ratio.
Yeah, that's, that's interesting you say that because I've always, I've always kind of thought about aluminum as being kind of like flimsy, but I guess, I guess not. When it's used in the right way.
Right. Yeah. It all depends on how it's processed and what you're using it for.
Interesting. So each material has its own kind of superpower.
Yeah.
And choosing the right one is key to making sure the extruded product can actually do its job.
Exactly.
Now I've heard that even something as simple as a pipe needs careful design.
Oh, yeah.
Is that where this whole dye thing comes in?
That's exactly right. So the dye is basically like a mold, but instead of creating a single object, it forms a continuous shape.
Right.
And the design of that die is really crucial for determining the final dimensions.
Okay.
And Even how the product will perform.
So, for example, in a pipe, the die has to. It has to ensure a perfectly circular cross section.
Yes.
And a consistent wall thickness to handle all that water pressure.
Exactly.
Yeah.
You don't want weak spots or inconsistencies.
So it's more than just squeezing the material through. Right. You really need control over the whole process.
You need a lot more control than you think. Yeah, yeah. Temperature, pressure, even the speed at which the material is pushed through it all affects the final product.
Wow. Okay.
You have too much pressure, and you could end up with, you know, defects or material might tear.
Oh, right.
Not enough heat and. And the material might not flow properly. It's a very delicate balance.
That makes a lot of sense.
I remember we were working on a tight deadline once.
Oh, no.
And the pressure wasn't set right. We ended up with a batch of window frames that were just slightly off.
Oh, wow.
And we had to redo the entire run.
Ouch. That's. That's got to be costly.
It was. Yeah. Definitely learned the importance of those process parameters the hard way.
Yeah. Yeah, I bet.
But speaking of challenges, designing the die itself, it really is an art form. You know, think of it like this. You're trying to shape molten plastic or metal into a very specific form. And that form might be simple, like a pipe, or incredibly complex, like an intricate window frame with multiple chambers and grooves and all that.
So you're not just pushing it through a hole. It's more like sculpting.
Exactly.
With liquid metal or plastic.
That's a great way to put it. Yeah. Dye designers use sophisticated software to simulate how the material will flow.
Oh, wow.
And they have to make sure everything comes out just right. They have to consider factors like material shrinkage as it cools, the desired wall thickness, and even how the product's going to be used in the end.
So it's a really fascinating blend of science and engineering.
It really is. Yeah.
Wow. This is. This is blowing my mind. I never realized there was so much thought and precision behind these, you know, like, everyday objects. I'm starting to see extruded products everywhere now.
Yeah.
It's like now that I know what.
To look for, they really are everywhere. Yeah.
So we've been talking about, you know, traditional extrusion. What about those advancements you mentioned earlier?
Oh, yeah.
What's changing in the world of extrusion? What's new?
Well, for starters, we're seeing a rise in co extrusion. Co extrusion, which allows manufacturers to create multi layered products with different properties. Okay, so think of a pipe with an inner layer that's resistant to chemicals.
Right.
And an outer layer that's super tough. It's like giving the product superpowers.
Superhero pipes. I love it. Are there any other innovations on the horizon that you find particularly exciting?
One word. 3D printing.
Oh, okay.
Integrating 3D printing with extrusion opens up incredible possibilities for creating really complex shapes that were previously impossible.
Okay, hold on. 3D printing and extrusion? How does that even work?
Well, imagine a 3D printer that extrudes molten plastic or metal instead of laying down thin layers.
Okay.
You could create intricate, custom designed products with amazing precision and almost no waste.
That's. That's incredible. So. So it sounds like the future of extrusion is all about pushing the boundaries of what's possible both in terms of the, the materials we use and the shapes we can create.
Absolutely. And we're also seeing a shift toward more sustainable materials like bio based plastics and recycled materials, and a growing emphasis on automation and smart technology to, to make the whole process more efficient and environmentally friendly.
This is seriously cool stuff. We've covered so much ground already from the basics of extrusion to some pretty mind blowing advancements. I'm eager to dive even deeper into all this.
Me too. And I think our listeners are in for a real treat.
Yeah, I think so too.
As we explore some of the more specialized applications and mind boggling innovations in the world of extrusion. Stay tuned.
Be right back. Welcome back. Before the break, we were getting Pretty hyped about 3D printing and extrusion teaming up. It sounds like something straight out of a, like a sci fi movie.
It kind of does, doesn't it? But it's actually becoming a reality. This combination could really change how we think about manufacturing.
Okay.
Imagine creating like custom designed medical implants, you know, perfectly tailored to a patient's anatomy.
Wow.
Or. Or building really complex aerospace components with minimal waste.
So instead of like mass producing generic parts, we could create like bespoke solutions. Shark tight for all sorts of industries. Yeah, that's amazing. But while we're on the topic of innovation, what about those specialized applications you mentioned earlier?
Oh, right. One area where extrusion is really pushing boundaries is in the creation of micro extrusion products. Micro extrusion, These are like incredibly tiny components used in everything from, you know, medical devices to, to electronics. Think about the tiny needles used in insulin pumps.
Oh, okay.
Or the intricate circuits in smartphones.
Whoa. So we're talking about like shrinking down the extrusion process to create parts that are like almost invisible.
Exactly. And the precision required is mind blowing. It's like threading a needle with a strand of hair.
That's incredible.
But the results are really revolutionizing several fields.
Okay. I have to admit I'm kind of obsessed with this idea of micro extrusion now.
Yeah.
It's like a whole secret world of tiny extruded wonders.
It is. And it's just one example of how extrusion technology is constantly adapting and evolving to meet new challenges and create innovative solutions.
This has been such an eye opening, deep dive so far.
Yeah.
I'm starting to like, see the world in a whole new way. Noticing extruded products everywhere I go.
That's the beauty of learning about these kind of hidden processes, isn't it? It makes you appreciate the ingenuity and complexity behind these seemingly ordinary objects we see every day.
Absolutely. But before we get too carried away with all the amazing things that extrusion can do, we should probably touch on the. The environmental aspects.
Yeah, of course.
Is extrusion a sustainable process?
That's a crucial question. Like any manufacturing process, extrusion does have an environmental impact. The energy needed to melt the materials and power the machinery is a significant factor. But the industry is definitely taking steps to become more sustainable.
So what are some of the ways that extrusion is becoming more eco friendly?
Well, one focuses on improving energy efficiency. Companies are exploring ways to optimize process parameters, use more efficient heating systems, and even incorporate renewable energy sources.
That makes a lot of sense. Less energy used means a smaller carbon footprint.
Exactly.
Are there any other initiatives aimed at at reducing the environmental impact?
Absolutely. Another major area is waste reduction. Extrusion can generate scrap material, especially when switching between products or setting up the dye. So companies are implementing strategies to minimize this waste by optimizing material usage, improving process control, and even exploring ways to recycle or repurpose the scrap that is generated.
So it's a. So there's a two pronged approach. Reduce energy consumption.
Yes.
And minimize waste. What about the materials themselves? Are there other more sustainable options for extrusion?
Definitely. We're seeing a growing trend towards using bio based plastics which are derived from renewable resources like plants and recycled materials as well.
That's a fantastic idea. Not only does it reduce reliance on fossil fuels, but it also gives new life to materials that would otherwise end up in landfills.
Exactly. It's a win win for the environment and for the industry.
It's inspiring to see how sustainability is becoming such a key Driver of innovation in the extrusion world. It feels like a positive step towards a, a more eco conscious future.
I agree. And with the advancements we've, we've discussed like 3D printing integration and the, the use of sustainable materials, the, the future of extrusion looks, looks both exciting and responsible.
Okay. We've, we've covered so much ground today from the magic of micro extrusion to the, to the importance of sustainable practices. I feel like I could talk about extrusion all day. But before we wrap things up, is there anything else you think our listeners should know?
Well, I think the key takeaway here is that extrusion is more than just a manufacturing process. It's a fundamental technology that shapes our world in countless ways, from the infrastructure that supports our cities to the medical devices that improve our health. And as we've seen, it's a technology that's constantly evolving, driven by innovation and a commitment to a more sustainable future.
That's a great point. It's easy to overlook the ingenuity and impact of these hidden processes that are all around us. But after this deep dive, I don't think I'll ever look at an extruded product the same way again.
Me neither. It's been a fascinating journey, and for anyone who's curious to learn more, there are tons of resources available online. You can dive deeper into advanced extrusion technologies, explore the latest developments in sustainable materials, and even see how extrusion is being used to create innovative products across a wide range of industries.
Well, on that note, I think it's, it's time to wrap up this part of our deep dive. Stay tuned, because in the final part, we'll be tackling some listener questions.
Oh, great.
And exploring even more fascinating aspects of this incredible technology. And we are back for the final part of our extrusion adventure. I'm still, I'm still buzzing from all the cool stuff we've learned. You know, we've talked about the basics, the advancements, even the environmental impact. But now it's time to hear from you, our listeners. We got some, some awesome questions, so let's dive right in.
Sounds good.
Yeah. So first up is Sarah. She's wondering about the challenges of designing those super complex dyes. Oh, yeah, you know, the ones that create intricate shapes for things like window frames and medical devices. What are some of the hurdles that die designers have to overcome?
Well, it's definitely not as simple as just drawing a shape and cutting it out of metal. One of the biggest challenges is, is ensuring that the material flows evenly through the die.
Okay.
You don't want any, like, bottlenecks or areas where the material could get stuck.
Right, right.
Or you'll end up with a, with a deformed product.
So it's kind of like designing a water slide.
Right.
You want a smooth, continuous ride without any sudden drops or sharp turns.
Exactly, exactly. Dye designers, they have to think about the viscosity of the material, the temperature.
Okay.
The pressure, and how all those factors will affect the flow. They use sophisticated computer simulations to model the process.
Wow.
And optimize the dye design for a smooth and consistent extrusion.
It sounds like a very delicate balancing act. What other factors do they need to consider?
Well, the dye also has to be strong enough to withstand the heat and pressure involved in the extrusion process.
Oh, right, yeah.
We're talking about, you know, molten metal or plastic being forced through a tiny opening.
Yeah.
So the, the dye material needs to be incredibly durable.
So it's. So it's not just about shaping the material.
Right.
It's also about making sure the dye itself can. Can handle the heat.
Exactly. Dye designers often use special types of steel that are, that are heat resistant.
Okay.
And can withstand, you know, extreme conditions.
Wow. It's amazing how much thought in engineering goes into something seemingly simple like a die. Thanks for the insight, Sarah.
Of course.
Okay, let's move on to John's question. He is wondering about the limitations of extrusion. Are there certain shapes that just can't be made using this process?
That's a good question, John. It makes me think about those Play DOH toys.
Oh, yeah.
Where you squeeze the dough through different shaped holes.
Right. Yeah.
To create different shapes. You know, you can make a snake, a star, a spaghetti strand, but you can't make a bowl.
Right. Yeah.
And that's one of the key limitations of extrusion. It's great for creating shapes with a constant cross section, like pipes, rods, or tubes. But it's not so good for making shapes that change along their length.
Right.
Like a, like a sphere or a cone.
So you're saying that extrusion is like a master of continuous profiles. Yes, but it has its limits when it comes to more complex three dimensional forms.
That's right. For those kinds of, those kinds of shapes, you would need to use other manufacturing processes like, like molding or machining.
Makes sense. Thanks for. Thanks for clearing that up, John.
Yeah.
Okay, let's see what, what Maria has on her mind. Ria is asking about sustainability, which is something we touched on earlier. She wants to know more about the environmental considerations associated with extrusion.
That's a really important question, Maria. And it's definitely something that the industry is taking very seriously. As we mentioned, extrusion can be energy intensive and there's the issue of waste material. But companies are actively working to reduce their, their environmental impact.
So we talked about, you know, energy efficiency and waste reduction, but are there, are there any other ways that the industry is becoming more sustainable?
Absolutely. One area that's, that's really exciting is the use of bio based plastics.
Yeah.
Which are, which are made from renewable resources like plants.
Okay.
These materials can be just as strong and durable as traditional plastics, but they have a much, much smaller carbon footprint.
So. So it's like swapping out fossil fuels for plants as the building blocks.
Yeah.
For, for these materials. That's, that's pretty awesome.
It is. And we're also seeing increased use of recycled materials in extrusion.
Okay.
This helps to, you know, reduce waste.
Right.
And lessen the demand for virgin materials.
It sounds like the future of extrusion is all about finding that, that sweet spot between innovation and sustainability.
I couldn't agree more. The industry is really embracing new technologies and materials to create products that are not only high performing, but also environmentally responsible.
Well, that brings us to the end of our deep dive into the fascinating world of extrusion. It's been an incredible journey exploring this process that, that shapes so many aspects of our lives.
It really has. We've covered everything from the basic principles to the mind blowing advancements and the crucial role of sustainability.
I hope our listeners feel as energized and informed as I do. Who knew there was so much to discover about something as seemingly simple as shaping materials?
Right. It just goes to show that there's always more to learn, even about the things we see every day.
So the next time you see a pipe, a window frame, or even that tiny needle in a medical device, take a moment to appreciate the ingenuity and complexity of the extrusion process that made it possible.
And remember, the world of extrusion is constantly evolving. So keep exploring and stay curious.
That's a wrap on another deep dive. Thanks for joining us. And until next time, keep those brains
