All right, so get this. We're going deep today.
Ooh, deep into what?
Well, into something that's literally all around us all the time.
Okay, I'm intrigued.
It's injection molding machines.
Those things that make, like, every plastic thing ever?
Pretty much, yeah.
Yeah.
You know, our listeners, they love this stuff.
Yeah.
They want to know all about these mechanical marvels.
So I guess we've got our work cut out for us then.
We do. I got a whole stack of technical paper and articles. Yeah, so many. But you know what our mission is?
Demystify this whole world.
Exactly. This world of injection molding machines, you.
Know, and, like, how they shape. Well, everything, basically.
Okay. But let's start with something I was thinking about.
Okay, what's that?
Like, you can't just use any old injection molding machine to make anything.
You're so right. It's not a one size fits all kind of deal.
Right. Like, imagine trying to make a tiny little earbud.
A machine meant for, like, I don't know, huge car parts.
Exactly. So how do they even categorize these things?
Well, one big way is by their power source. Oh, that makes sense. Like, you've got your hydraulic machines, your electric, even pneumatic.
Hmm. Okay. So each one has its pros and cons, I'm guessing.
For sure. Like hydraulic machines. They're the classic.
Oh, the old reliable.
Exactly. Known for their power, you know, real workhorses.
And they're good at. What was it called?
Clamping force.
Yeah, clamping force. Like holding the mold together.
Right. While all that hot liquid plastic gets injected in.
Which makes sense. You need a lot of force for that.
You do. But then you've got those electric machines.
Which are getting more popular now.
Totally. Especially with energy costs being what they.
Are and everyone talking about being eco friendly.
Yeah. Sustainability is huge now.
So those electric ones must be more efficient.
Way more. We're talking like, up to 70% energy savings.
Whoa, 70%? That's wild. But why wouldn't everyone just switch over then?
Good question. It comes down to cost, basically.
So they're probably more expensive to buy upfront.
They are, yeah. Hydraulics.
Cheaper initially, but I bet those energy savings add up over time.
Big time. And electric machines need less maintenance too.
So it's like short term cost versus long term gain.
Exactly. And that actually reminds me of something from one of the articles that talked about this company that made the switch to electric machines. Not quite. They just went for machine with a larger shot size.
Shot size? What's that?
So it's the amount of plastic injected in one go.
Oh, I see. And why did they do that?
It actually gave them better quality products in the end.
Wow. So it's not just about speed, it's about doing it. Right.
You got it. And all these little choices have these ripple effects.
Yeah. Each decision impacts the next for sure.
But remember we talked about power sources being one way to categorize them?
Right, right.
But there's other ways, too. Like their appearance, for one.
Oh, interesting. And how they melt the plastic.
You're on a roll. That's called plasticization.
Plasticization, right. So what even is that exactly?
Think of it like this. You've got those little plastic pellets.
Raw material.
Yeah. And the machine basically melts them all.
Down into, like, a gooey mess.
Exactly. A hot liquid mess ready to be molded.
So how do they actually melt it?
Well, there are a few different methods.
Oh, I bet there are.
The most common one nowadays is the reciprocating screw method.
That sounds complicated.
It's basically a rotating screw that pushes and milks the pellets.
Like a. I don't know, a fancy meat grinder, but for plastic.
Yeah. Yeah, it's kind of like that.
Okay, and what are the other methods?
There's the plunger method, which is older, not as efficient.
Makes sense. What else?
And then you have the screw plunger method.
Oh, so like a combo of the two.
Exactly. Tries to get the best of both worlds.
Clever. But I'm curious. Why not just use the most common one then?
It really depends on the specific type of plastic you're using.
Ah, so different plastics need different approaches.
Yeah, different melting points, different. What's it called?
Viscosity.
That's the one. Like, you wouldn't melt chocolate and butter the same way.
Okay, so matching the method to the.
Material, that's key for good results.
But what happens if you mess that up?
Oh, you can end up with some real problems.
Like what?
Imagine your phone case. Right?
Yeah.
It could have a weird texture, be weak in some spots.
No one wants that.
Nope. And it could all be because of bad plasticization.
Wow. It's all connected.
It really is. And speaking of connections, there's one last piece to this puzzle.
Okay, what's that?
It's how they hold the two halves of the mold together.
Ah, to keep the plastic from leaking out, right?
That's part of it, yeah. But it's also about making sure the plastic fills every little bit of the.
Mold to get a perfect shape.
Exactly. And this is called the clamping method.
So from what I read, there are a bunch of different methods.
There are, You've got toggle clamping, direct pressure.
Oh, and what were the others?
Two plate and then full electric clamping.
Wow, that's a lot of options.
And just like everything else we've talked.
About, each one has its own quirks.
Yep. Advantages and disadvantages. All depends on what you need.
So like toggle clamping, that's a good.
One for it's fast and pretty cost effective. That's its main thing.
But not the best. If you need, what was it?
Super precise control over the clamping force.
Right, right. And what about direct pressure then?
Well, that gives you more control over the force, which is good for preventing defects. Like, have you ever seen those little plastic burrs on things?
Oh yeah, those are annoying.
That's called flashing. And it can happen if the clamping force isn't strong enough.
So direct pressure helps keep everything tight.
Yeah, it basically squeezes the mold shut really well.
So if you want a super clean.
Precise product, direct pressure might be the way to go.
Makes sense. But what about for big molds?
For those you might go for a two plate system.
Ah, okay. And full electric clamping.
That's for if you want the best precision, any energy efficiency.
So top of the line stuff basically.
But it's amazing how much goes into this. Right?
I know. I'm starting to look at plastic things totally differently.
It really is a hidden world and we've only just scratched the surface.
It is. There's so much more to explore.
So much.
We'll have to dive even deeper in part two of this deep dive.
Absolutely. We've got tons more to uncover.
Can't wait.
Me neither.
Okay, so we're back, back again.
Deeper into the world. Injection molding.
Deeper indeed. Last time, you know, we covered the basics.
Tower sources, the different types of machines.
Right. The big picture stuff.
But now I want to know the nitty gritty.
Exactly what are those specific things that manufacturers like obsess over?
Ah, you want to know the secrets of the trade?
Uh huh. Kinda, you know, like when they're choosing a machine.
You're right. It is like picking the perfect tool.
For a very specific job.
And you know, one of the first things they'll look at.
What's that?
Shot size.
Shot size. Right. Remind me again what that is.
It's basically how much plastic the machine can inject in one go.
Oh, like in a single shot.
Exactly. Imagine filling up a water balloon.
Okay. Yeah.
You want the right amount of water, Right.
To make it the perfect size.
Too little, it's floppy. Too much, it pops.
Makes sense. And it's the same with plastic.
Same deal. You need the right amount for each part.
So, like, a tiny earbud would need a way smaller shot size than a.
Big old toy, for example.
Makes sense. But choosing the right shot size, that.
Also affect the quality of the final product.
Oh, yeah, right. Remember that example we talked about?
The company that got better quality just from changing their shot size?
Exactly. It's crazy how these little decisions can make such a difference.
They really do. Okay, ready for another technical term?
Hit me.
Tonnage.
Tonnage. Okay, that sounds heavy.
It is. It's all about force. Clamping force, to be exact.
So, like, how strongly the machine holds the mold together.
You got it. You don't want all that hot plastic squirting out everywhere.
That would be a mess. So tonnage is basically making sure the.
Mold is shut tight while the plastic.
Gets injected to get a clean, precise product.
You got it. We're talking some serious force here.
How much force are we talking?
Imagine squeezing a watermelon with your bare hands.
Ooh, that's a lot of force. And what if they underestimate the tonnage?
Well, one article had this story about a company, right? They messed up their tonnage calculations, and the mold wasn't held tight enough. Plastic leaked everywhere. Total waste of material.
Oof. That's got to be expensive.
Big time. So, yeah, tonnage, it's important.
Lesson learned. Okay, so we've got shot size, We've got tonnage.
What else? Hmm. What about platon size?
Platon size. Okay. That's a new one.
So the Platons, they're these big metal plates, okay. And the mold gets attached to them.
So they're like, the foundation of the whole thing.
You could say that. Yeah. And if they're the wrong size, well, what happens? Too small, and you're limited in the size of molds you can use. Ah.
So you might not be able to make the parts you need.
Exactly. But if they're too big, that's gotta.
Be a problem too. Right.
You're wasting space, wasting energy.
Like trying to cook a tiny egg in a huge pan.
Perfect analogy. It's all about finding that sweet spot.
Not too big, not too small. Just right.
Just right. It's a goldilocks situation.
I'm seeing a pattern here. But, you know, speaking of different sizes.
You'Re thinking about horizontal versus vertical machines.
Yeah. Most of what we've talked about so.
Far, it's all been, like, assuming A horizontal machine.
Right. Which seems to be the most common type anyway.
Yeah, for good reason. They're easier to use. Really more stable too, because of their center of gravity.
Oh, that makes sense.
And they're great for automation. You know, all those robots working away.

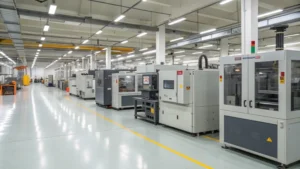

I can just imagine rows and rows of them churning out parts.
Like a well oiled machine. Literally.
But I bet those horizontal machines take up a lot of space.
That they do. So if you're tight on space, vertical.
Machines might be better.
Definitely. They have a smaller footprint. Plus they're good for.
For what?
Insert molding.
Oh, right, right.
That's when you add in other components, like a metal part into the plastic.
Ah, so that's how they make those phone cases with the metal rings.
You got it. But vertical machines, they can be trickier.
Trickier how?
Gravity can mess with the mold alignment sometimes.
Oh, I didn't think of that. So again, it's all about choosing the.
Right tool for the job. No easy answers.
And speaking of choices, we talked about those power sources before.
Hydraulic, electric, pneumatic.
Yeah, those must factor into all these decisions too, right?
Oh, absolutely. Hydraulic machines, remember, they're the muscle, strong and reliable, but they can also be.
Energy hogs and need more maintenance.
That's right. Electric machines, they're all about precision.
They're like the, I don't know, the brainier option.
Uh huh. Yeah. Energy efficient, quiet, all that good stuff.
And pneumatic machines, those are the.
The speedy ones. Lightweight, good for low energy use.
But maybe not for really heavy duty manufacturing.
Exactly. It's like a whole spectrum of personalities.
I like that way of thinking about it.
So many options and we haven't even touched on everything.
I know, right? It's a lot to take in.
Like mold compatibility. That's a big one.
Oh yeah. Making sure the machine can actually handle.
The mold without messing up the final product.
You don't want a square peg in a round hole situation.
Definitely not. One of the articles talked about a.
Project they ran into that problem.
Yep. Ended up costing them a fortune to fix it.
So, mold compatibility, check. What else?
Production volume, that's key too.
How many parts you need to make.
Exactly. High volume production. You need a machine that can keep.
Up fast cycle times, all that.
You got it. And of course, we can't forget the budget.
The elephant in the room.
The cost of the machine itself, but.
Also the running cost, energy, maintenance, all of it.
It's a balancing act.
Like sometimes it's worth spending more upfront.
For a more efficient machine.
Right. Saves you money in the long run, smart thinking.
These decisions, they have a ripple effect.
Not just on the company's bottom line.
But on sustainability, the whole picture.
Wow. This is way more complex than I ever imagined.
It is, isn't it? And we've just scratched the surface.
I know, but we've covered a lot of ground.
We have. And hopefully our listeners are starting to.
See those everyday plastic things in a new light.
Exactly. And in our final part, we'll bring.
It all together, connect the dots, some.
Final food for thought.
Can't wait. Okay, so we've made it to the.
Final part of our deep dive.
We've explored, I mean, really gone deep into injection molding machines, all those gears.
And levers and processes. It's a lot.
It is. But you know what really stood out to me?
What's that?
Is how much thought goes into making even simple plastic things.
Oh, absolutely. It's not just melting plastic and pouring it into a mold.
Right. There's so much planning, so many decisions.
Material choices, machine settings. It all matters.
Like a whole symphony of engineering. That's what it feels like.
It really is. Each piece playing its part to create the final product.
And it just makes me appreciate those everyday objects even more.
Me too. Knowing the journey those plastic parts took, it's pretty amazing.
So as we wrap up this deep dive, what's the big takeaway?
You know, the one thing we want our listeners to remember.
What should they be thinking about after they finish listening?
Hmm. I think it's this. Don't underestimate the complexity of the things around you.
Yeah. Like those plastic things we use every day. They're not just plastic.
There's a whole world of engineering behind them.
Human ingenuity and I think understanding that makes us more aware consumers too.
You're right. We start to think about the materials.
The energy used, even what happens to those products at the end of their life.
And that's becoming more and more important these days.
Absolutely.
Yeah.
Everyone's talking about sustainability being eco friendly.
In the injection molding industry. They're feeling that pressure too.
They have to adapt, find new ways to do things.
More recycled plastics, more energy efficient machines.
Right. And we saw some cool examples of that in the articles.
Oh yeah, that company using recycled ocean plastic. That was awesome.
It really shows how innovation can make a positive impact.
For sure. It gives me hope for the future of this industry.
Me too. So looking ahead, what other trends do you see shaping this world?
Well, sustainability is obviously huge, but also.
Automation, more robots on the factory floor.
Doing those repetitive tasks, freeing up humans for more creative work, right?
Like problem solving, coming up with new ideas.
And speaking of new ideas, material science is advancing rapidly.
New types of plastic, new possibilities.
Imagine plastics that are super strong but.
Also lightweight and made from renewable sources. That would be game changing.
It would. It's exciting to think about what the future holds.
This whole deep dive has been an eye opener for me, that's for sure.
I feel the same way. And for our listeners out there, the.
Next time you pick up a plastic gadget or a toy, take a moment.
To think about all the steps involved.
In making it, from those tiny pellets to the final product.
It's quite a journey, a testament to human ingenuity, to our desire to create.
And that's something worth celebrating, don't you think?
Absolutely. So keep asking questions, keep exploring.
Never stop learning about the world around you.
That's what it's all about.
Well said. Thanks for joining us on this deep dive into injection molding.
It's been a pleasure.
We'll catch you next time for another fascinating exploration.
We'll be here.
Until then, keep those gears turning and those molds filling.
And remember, there's more to plastic than meets the eye.
That's our show for today, folks. See you next
