All right, let's jump right into this deep dive on injection molding. And, you know, we're going deep today because we're getting into undercuts.
Undercuts?
Yeah, those little tricky bits that can really make getting a clean part out of a mold a challenge.
Yeah, they can really make things interesting.
Well, you sent me a bunch of really cool research on different ways to work with undercuts, and I gotta say, some of these solutions are seriously clever.
Oh, yeah. There's a lot of cool stuff out there.
We're talking sliders and lifters, even something called forced demolding, which, honestly sounds a bit intense when you just say it out loud.
Yeah. You think you're just going to force something out of a mold and hope for the best.
Well, let's break it all down and see what's what.
Sounds good.
So let's start with a simple example. Like you're trying to mold a container that has a handle on the side.
Okay.
That handle is going to create an undercut, right?
Yeah.
Because the mold needs to kind of wrap around that handle.
Exactly.
So how do you get that part out of the mold without snapping the handle off?
Well, that's where you bring in a slider.
A slider?
Yeah. So you can think of it like a drawer sliding out of a dresser.
Okay.
A slider and a mold is kind of similar. It's a separate piece of the mold that can move sideways.
Yep. I see.
So as the mold opens up, that slider moves out of the way and allows the part to come out cleanly, including that handle.
Oh, that's slick. So it's like the mold has a secret escape route for those undercuts.
Exactly. That's a great way to put it.
That's really cool. I'm trying to picture it all working.
Yeah, it's a clever solution.
But wouldn't that make the mold itself a lot more complicated to actually build, having all those moving parts?
It does. Yeah. Adding sliders definitely adds complexity and cost to the mold design.
Right, because it's basically like adding an extra moving part to a machine.
Exactly. And as with any machine, the more moving parts you have, the more chances there are for something to go wrong.
Makes sense. So sliders are great for external undercuts, like that handle we were talking about.
Right.
But what about those hidden ones on the inside of an object, like, say, inside a bottle cap? How do you get those out?

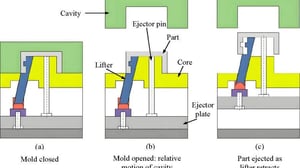

Well, for those, you call in the lifters.
Lifters?
Yeah. Instead of moving sideways like a slider, a lifter works on A diagonal. Imagine a tiny little arm that gently pushes against the undercut from the inside as the mold opens.
Okay.
It allows that part to release nice and clean. They're especially useful for those small, shallow undercuts you often find in things like bottle caps or snap fit libs.
Ah. So different types of undercuts call for different solutions.
Right.
But are there any downsides to using lifters based on the research you saw?
Well, one of the main challenges with lifters is that they can sometimes leave tiny little marks or blemishes on the part where they make contact.
Oh, right, where that arm pushes.
Exactly. It's usually not a big deal, especially if it's hidden. But it is something to consider if aesthetics are really important for that part.
Yeah. If you're going for that flawless look, you gotta weigh the pros and cons precisely.
It's all about finding the right balance for that specific product.
Absolutely. Now, I'm curious. Is there anything else from the research that stood out to you, like, any surprising solutions or challenges?
Well, one thing that really stood out was the importance of material choice when it comes to undercuts.
Oh, yeah? How so?
Sometimes you can actually avoid those tricky undercuts altogether just by choosing the right material.
Wait, so you're saying the material itself can be a workaround?
Exactly. Some materials are flexible enough to bend and deform a little bit without breaking. Like think about a rubber seal or a silicone baking mold. They can kind of twist and contort to release from undercuts and then spring right back to their original shape.
Oh, that's cool.
That's the basic principle behind what's called forced demolding.
Forced demolding?
Yeah.
It does kind of sound like you're forcing the part out against its will.
Right.
But I imagine it only works with certain types of plastics.
Yeah, definitely. You can't just force any material out of an undercut. It has to be something with a high degree of elasticity. Like those soft, rubbery plastics.
Right.
If you try to force a rigid plastic out of a mold, it would definitely crack or break.
So choosing the right material isn't just about how the final product functions. It's also about how easy it is to actually make the thing.
Exactly. It all ties together.
Was there anything from the research where that came into play, like a real world example?
Yeah, there was this interesting case study about a company that was designing a small, flexible hook.
Okay.
They were initially planning to use a rigid plastic and build this really complicated lifter mechanism into the mold.
Wow. Wow.
But during their Design review, they realized that if they just switched to a more flexible material, they could get the same functionality and simplify the molding process significantly.
So they basically just ditched the lifter altogether and let the material do the work.
Yeah, basically. It was a really neat example of how understanding those material properties can really open up new possibilities in design and manufacturing.
That's a great example. So we've talked about mechanical solutions like sliders and lifters, and we've touched on the role of material choice.
Right.
But I'm curious, is there a way to avoid these complex solutions altogether?
Oh, like designing the product so there aren't as many undercuts in the first place?
Exactly. Like, can you design for manufacturability in that way?
You absolutely can. And that brings us to the world of design optimization.
Design optimization.
It's a big one. It's kind of like solving the problem before it even becomes a problem.
Right.
If you can design a product in a way that minimizes the need for undercuts, you can save yourself a lot of headaches down the road.
Less head scratching, more high fives.
Exactly.
I like that.
Yeah.
But how do you actually go about designing for manufacturability like that?
Well, one strategy is to just simplify those complex features.
Okay.
Like those snap fit lids we talked about earlier.
Yeah.
You know, sometimes designers can get a little carried away with intricate buckle designs.
They get excited.
But you can often achieve the same functionality with a simpler design that doesn't require an undercut.
So it's about finding that elegant solution that works both for the user and the people making it.
Right. It's got to work on both ends.
Were there any examples in the research where simplifying the design made a big difference?
Yeah, there was this one case study. They talked about a company that was designing a housing for an electronic device.
Okay.
And the initial design had all these intricate grooves and recesses that would have required a ton of lifters and sliders.
Oh, wow.
But they ended up working with the engineers to simplify the design.
Oh.
Using more subtle curves and rounded edges instead of all those sharp angles. And it not only made the part easier to mold, it actually gave it a more aesthetically pleasing look, too.
So a better looking product and it's cheaper to make.
Exactly. A win win.
That's awesome. Okay, but what if you can't simplify the design? Like, what if you're dealing with a part that absolutely needs those complex features?
Well, in those cases, another design strategy is to break down those complex parts into smaller Simpler components. So instead of trying to mold one giant part with a bunch of undercuts.
Yeah.
You create several smaller parts without undercuts, and then you just assemble them later.
It's kind of like building with Legos.
Exactly.
Sometimes it's just easier to use a bunch of smaller pieces.
Right.
To create that complex shape.
It's all about finding the right approach.
Was there a real world example of that in the research?
There was. Yeah. One of the case studies talked about a company that was designing a complex medical device.
Oh, wow.
And their initial design involved this single part with tons of undercuts.
I can imagine.
But then they realized that if they broke it down into three smaller parts.
Okay.
Each with a much simpler geometry, they could actually eliminate most of the undercuts.
Wow.
So not only did that make the molding process way easier.
Right.
It also allowed them to use different materials for each part.
Oh, interesting.
Which meant they could optimize the properties of each part for its specific function.
So a more functional product and easier to make.
Yep. Another win. Win.
They really thought outside the box on that one.
It did.
It's amazing how this design optimization stuff can really make a difference.
It really is. It's a powerful tool.
So we've talked about the shaping complexity of the part.
Right.
But we also touched on how choosing the right material can play a big role too.
Definitely.
I'm guessing there's more to it than just flexibility, though.
Oh, yeah, for sure. For example, some materials shrink more than others as they cool.
Okay.
And if you're not careful, that can actually create unwanted undercuts.
Ah, so it's like a side effect.
Exactly. And then there's also the issue of wall thickness.
Wall thickness? What does that have to do with undercuts?
Well, if the wall thickness of a part isn't uniform, it can cool unevenly.
Okay.
And that uneven cooling can lead to warping and distortion.
Right.
Which in turn can create unintended undercuts.
So it's like a chain reaction.
Yeah. One design flaw can lead to a whole bunch of problems.
It sounds like there's a lot to keep in mind when you're designing for injection molding.
There is. It's a delicate balancing act.
That's what makes it interesting, right?
Absolutely. It's a fascinating feel.
So we've covered a lot here. Slider lifters, material choice, design optimization. It's clear there are a ton of different ways to approach those undercuts.
There are.
But now I'm curious. What about the future of injection molding? Are there any Emerging technologies out there that could change the way we think about undercuts altogether.
Well, there are definitely some exciting developments on the horizon.
Like what?
One that's particularly interesting is the use of 3D printing to create molds.
Wait, you can 3D print a mold? I thought 3D printing was mostly for prototypes.
It used to be, but the technology has come a long way. You can now print molds with incredibly intricate geometries.
Wow.
Geometries that would be impossible to create using traditional machining methods.
So, like, way more complex than what you could do before.
Exactly. It opens up a whole new world of possibilities for designing parts with undercuts.
So you could print a mold that already has all those sliders and lifters built in?
Exactly.
That's wild. That sounds like a game changer.
It is. It really is. It gives designers so much more freedom, and it can significantly reduce the lead times for creating those complex molds.
That makes sense. And is it still limited to just plastics, or can you 3D print molds for other materials too?
You know, it's not limited to just plastics anymore, really. You can use 3D printing with a wide range of materials now, including metals and ceramics.
Wow. So it's not just about making the molding process easier. It's about expanding the possibilities of what you can mold.
Exactly.
That's amazing. Anything else on the horizon that has you excited?
Another area that's really promising is the development of new bio based plastics.
Bio based plastics?
Yeah. These are plastics made from renewable resources like plants.
Oh, that's cool.
So it's a huge win for sustainability.
So less reliance on fossil fuels.
Exactly.
So we could be making all these complex molded parts with a much lower environmental impact.
That's the goal.
That's fantastic. But I'm guessing these new materials come with their own set of challenges, right?
Of course they do. Bio based plastics often have different properties than traditional petroleum based plastics. They might be more sensitive to temperature or have different shrinkage rates. Got it. So engineers and designers need to adapt their techniques to work with these new materials.
So it's a whole new learning curve.
It is, but it's an exciting one.
It sounds like the world of injection molding is constantly evolving.
It is. It's a very dynamic field, which is pretty cool.
It makes you wonder what kind of crazy products we'll be seeing in the future thanks to all these advancements.
It's really exciting to think about what's possible. Who knows? Maybe one day those tricky undercuts will be a thing of the past.
It's Amazing, isn't it? What is all this injection molding stuff.
Yeah.
I have to admit, before we started this deep dive, I really took it for granted.
Yeah.
Like, I knew it was how we made a lot of everyday objects, but I never really stopped to think about all the cleverness that goes into it.
It's one of those things that's easy to overlook when you're just surrounded by the end products. You don't always see the complexity behind the scenes.
Yeah. And we've seen a lot of complexity starting with those mechanical solutions for undercuts.
Right.
The sliders.
Those are cool.
Perfect for things like handles.
Yeah.
And buttonholes.
Yeah, they really are.
And then the lifters for those internal undercuts working their magic behind the scenes.
It's amazing how they get those parts out of the mold.
And then there's forced demolding, which still sounds a bit wild to me. It's a funny name, but it's such an elegant solution when you're working with those flexible materials.
It is. It shows you how understanding your materials can really lead to a much simpler process.
But for me, the most interesting part was the design optimization.
Oh, yeah.
It's like, why even bother with undercuts if you can design them out?
Exactly.
Simplifying designs, breaking complex parts into smaller.
Pieces, it's a whole different way of thinking about the problem.
And it really highlights the importance of designers and engineers working together.
Yeah. When they collaborate from the start, amazing things can happen.
And then there are those emerging technologies we talked about, like 3D printed molds.
Oh, yeah. That's a game changer, being able to.
Create molds with those super complex geometries.
Yeah. It opens up so many possibilities.
And then bio based plastics, which could really change the environmental impact.
Absolutely.
So we could be making all these complex parts in a much more sustainable way.
That's the dream.
It's really incredible to think about what the future holds for injection molding.
Yeah. It's a dynamic field.
It makes you wonder what kind of amazing products we'll be seeing in the next few years.
I can't wait to see what they come up with.
Me too. Well, I have to say I'm walking away from this deep dive with a whole new appreciation for injection molding.
Me too.
It's a hidden world of innovation.
It really is.
So next time you make up a water bottle or your phone or even just open a drawer.
Yeah.
Take a moment to think about all the engineering that went into making that object.
It's pretty cool when you think about it.
It really is. Thanks for joining us on this Deep dives,
