Welcome back, everyone. Ready for another deep dive?
Always.
Awesome. Today we're tackling injection molding, but not just the basics.
Oh, no, we're going big.
Literally. We're talking about those, you know, those everyday plastic objects we see everywhere. Phone cases, car parts, you name it.
Pretty much anything you can think of that's made of plastic, chances are it was made using injection molding.
Exactly. So we know it's used for all these small things, but what. What about the really big stuff? How big can we actually go with injection molding?
That's a great question. It's not as simple as just, you know, getting a bigger machine and expecting a bigger part.
Right, right. I figured there's got to be more to it. So what are we looking at here? What determines the size limits?

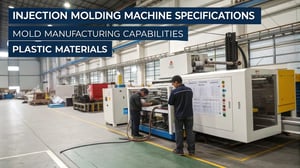

Well, you've got a few major factors. First, there are the limits of the injection molding machines themselves.
Okay, that makes sense. Bigger machine, more plastic, right?
Yeah, to a point. But it's not just about the size of the machine. There's also the mold itself. You know, the thing that the plastic is injected into.
Oh, right, the mold, of course.
Yeah. And then, of course, you have to consider the plastic material itself. Different plastics behave differently in the molding process.
So it's like a three way balancing act. Machines, molds, and materials.
Exactly. Each one presents its own unique set of challenges, especially when you're aiming for large scale production.
Okay, this is already getting pretty interesting. So let's start with those machines. What kind of limitations are we talking about there?
All right, well, first you've got something called the maximum injection volume, and that's pretty straightforward. It's literally the most molten plastic the machine can inject at once.
Okay, I get that. So that sets a hard limit right there.
Right. But then there's another factor that's a little less obvious, but it's super crucial. Clamping force.
Clamping force?
Yeah. Imagine this. You're injecting this hot molten plastic into a mold. Right. That plastic, it expands with a ton of force, like. Like a pressure cooker.
Oh, okay. I see where you're going with this.
So to keep the mold from, you know, bursting open, the two halves have to be clamped together with incredible force. And the larger the part, well, the more force you need.
Makes sense. So how much force are we talking here?
Oh, we're talking thousands of tons. Sometimes, like, it's the equivalent of two Boeing 747s pressing down on the mold. It's insane.
Whoa. Okay. I did not realize it was that intense. So even if you had this massive machine, that clamping force could still be a limiting factor.
Absolutely. Even with a huge machine, if it can't generate enough clamping force, forget about it.
Right, right. Okay. So the machine itself is important, but now I'm also thinking about that mold.
Yeah. The mold is a whole other can of worms, literally. Because as the size increases, maintaining that accuracy, that precision, it becomes exponentially more difficult.
So if we're talking about really big molds, what makes them so tricky to manufacture?
It all comes down to tolerances. We're talking about really precise measurements, often down to, like, the width of a human hair. And those have to be perfect across the entire surface of the mold. Any little deviation, and bam, you've got a warped part, unusable.
Wow. I can only imagine the frustration. You wait weeks for this huge mold, and then it's no good because of a tiny imperfection.
Exactly. It's heartbreaking, and it can be really costly, too.
So we have to factor in the mold itself. It's not just about making it big. It has to be absolutely perfect. What else makes these massive molds so challenging?
Well, the cooling system is super important too. Think of it like baking a cake. A giant cake.
Oh, I see where you're going with this.
Right. It's much harder to get a giant cake to bake evenly than a smaller one. Same with molds. If the cooling isn't perfect, you're going to get warping and inconsistencies in the final part, especially if it has, know, thick sections.
So even if I've got my massive injection molding machine and my perfect giant mold, I still have to figure out how to cool the darn thing.
Yep. It's like a delicate dance of temperature and timing.
Okay, so much to consider. And we haven't even talked about the plastic itself.
Right. The material choice. That's another huge factor in all of this.
Yeah. I bet different plastics behave, you know, differently, especially at these large scales. How does the material come into play?
One of the biggest challenges with really big parts is shrinkage.
Shrinkage.
Yeah. You see, as the molten plastic cools and solidifies, it contracts. Right. The problem is different plastics, they shrink at different rates.
I'm starting to see the issue here. So the larger the part, the bigger that difference in shrinkage becomes.
Exactly. You could end up with a part that's significantly smaller than what you intended, which is a big problem if you need precise dimensions.
So even if I nail the machine, the mold, the cooling, I could still mess it up. By picking the wrong plastic.
It happens all the time. That's why material selection is so critical, especially for these large parts. It's not just about strength or color anymore. It's about how the material behaves during that cooling phase.
This is way more complicated than I thought. It's like a giant puzzle where every piece has to fit perfectly to get the result you want.
That's a great way to put it. And it gets even more complex when you consider that some plastics are just inherently more difficult to work with than others. Some flow really smoothly into the mold, filling every little nook and cranny.
Right.
Others are, you know, thicker, more viscous. They're prone to getting stuck.
So for those really large, intricate parts, you'd really need that smooth, flowing kind of plastic.
Absolutely. You need something that's going to flow easily into all those intricate details. And this is where it gets really interesting. The choice of material isn't just about its properties. It's also limited by what the injection molding machine can handle.
Wait, hold on. So even if I find this perfect, super flowy plastic, my machine might not even be able to use it?
Yep, that's right. Some machines are just designed for specific types of plastics. You might need a super high flow material for a large, complex part. But if your machine can't heat it to the right temperature or inject it with enough pressure, well, you're out of luck.
So it's like this interconnected web of limitations. The machines, the molds, the materials, they all sort of influence each other. This is making my head spin a little.
I know, right? It's a lot to take in. But don't worry, we're going to break it all down.
I'm starting to feel a little overwhelmed by all these constraints. Are there any, like, any signs of hope for the future of large scale injection molding, or are we just stuck with these limitations?
Oh, no, there's definitely hope. There's so much exciting research and development happening in this field. We're seeing innovations in machines, molds, and materials that are pushing the boundaries of what's possible. We were talking about how material choice can be limited by what your injection molding machine can actually handle.
Right. Like finding that perfect plastic, but then your machine can't heat it up properly or inject it with enough pressure.
Exactly. It's all connected.
Yeah.
But there is some good news. We are seeing some really cool advancements that can really push the boundaries of what's possible with large scale injection molding.
Oh, that's good to hear. I was starting to feel a little pessimistic. What kind of advancements are we seeing?
Well, for one, we're seeing some furiously impressive injection molding machines being developed. These things are huge and powerful. Think of it like a. Like going from a regular kitchen oven to one of those massive industrial ovens.
Wow. Okay. I'm picturing something out of a sci.
Fi movie, pretty much. These new machines can handle much larger injection volumes, and they can generate incredible clamping force, which opens up a whole new world of possibilities for making bigger parts.
So bigger machines equal bigger parts. That makes sense. But what about those mold limitations we talked about? You mentioned 3D printing earlier. Is that playing a role in overcoming some of those challenges?
Oh, absolutely. 3D printing is really changing the game when it comes to mold making, especially for those intricate, large scale molds. Traditional methods can be. Well, they can be really slow and expensive for complex shapes.
Right, right.
But 3D printing offers this incredible flexibility and precision.
I can see how that would be a huge advantage for making large molds. Can you give me an example of how it might be used?
Sure. Let's say you're designing a kayak hull. You know, the whole thing, all those curves and contours as one single part.
Okay. Yeah.
Traditionally, to make a mold for that, you'd have to machine this giant block of metal. Super precise work takes forever. But with 3D printing, you could basically print the mold layer by layer.
Wow. So you're building up that complex shape piece by piece.
Exactly. It speeds up the whole process, and it gives you a lot more design freedom. You can create these really intricate shapes. It would be almost impossible with traditional methods.
That's incredible. It sounds like 3D printing could make creating these large, complex molds way more accessible too. Right. Not just for huge companies with tons of resources.
Exactly. That's the really exciting part, is opening up a whole world of possibilities for designers and engineers who might not have had access to those traditional mold making methods.
So we've got bigger machines, 3D printed molds. What about materials? Any breakthroughs on that front?
Definitely. There's so much research happening in material science, and it's not just about creating new plastics. It's about improving the properties of existing ones.
Okay, what kind of improvements are we talking about?
One big focus is on reducing shrinkage. Imagine a plastic that, you know, contracts very little as it cools.
Ah, that would make a huge difference, wouldn't it? Especially for those large parts where even a tiny bit of shrinkage can throw everything off.
Exactly. It would Allow for much greater dimensional accuracy. You wouldn't have to worry so much about that part ending up smaller than you intended.
What else are scientists working on?
Another big one is flowability. Some plastics are naturally thick and viscous, which can make it hard to completely fill large, intricate molds. It's like trying to pour honey versus trying to pour peanut butter.
Yeah, I get the analogy.
So researchers are developing new plastic formulations that flow much more easily. This would be a game changer for making those large, complex parts with lots of fine details.
So less shrinkage, better flow, maybe even improve strength and durability. Sounds like we're on the verge of a materials revolution in injection molding. It's all very exciting, but I do have to ask, are there any downsides to all these advancements? It can't all be sunshine and roses, Right?
You're right. It's important to consider the potential drawbacks. One thing we have to think about is the environmental impact.
Right.
Bigger machines require more energy to run, and producing new materials can also have a big carbon footprint. So we need to be very mindful of that and make sure we're developing these technologies in a sustainable way.
What steps are being taken to ensure that these advancements are environmentally responsible?
Well, there's a lot of focus on developing more energy efficient machines and exploring things like alternative energy sources to power them.
Okay, that makes sense.
Also, using recycled plastics is becoming more common, which helps to reduce waste and conserve resources.
That's great.
And then in terms of materials, researchers are looking into bio based plastics made from renewable sources, which could be a great alternative to traditional petroleum based plastics.
So it's not just about pushing the limits of what's technically possible. It's about being responsible and finding that balance between innovation and sustainability.
Exactly. As these technologies keep advancing, it's going to be more and more important to have those open and honest conversations about the trade offs. It's not always a simple equation.
Absolutely. Okay, so we've talked about giant machines, 3D printed molds, revolutionary plastics. With all that in mind, I can't help but wonder, what kind of massive objects do you actually see being injection molded in the future? If we could remove all those limitations, we talked about, what would be possible.
Well, that's where it gets really fun. It's all about imagination at this point. Think about things that are currently made by putting together lots of smaller parts. What if we could create those as one solid piece using injection molding?
Okay, I'm listening.
Imagine entire car chassis, boat holes, even structural components for buildings. All made with the precision and efficiency of injection molding. It's mind blowing.
Whoa. Okay. Building components, that's a whole other level.
I know, right?
Yeah, yeah.
Might seem a bit crazy now, but just think about the advancements we've already seen in the past few decades. Things that used to be science fiction are becoming reality. And as these technologies keep evolving, who knows what will be possible?
Yeah, you're right. It's easy to get stuck in our current way of thinking. Okay, so theoretically, we could have these massive monolithic structures created with injection molding, But I imagine there would be a ton of challenges to actually scaling it up to that level.
Oh, of course, there will always be challenges.
Yeah.
But that's what makes engineering so exciting, right? It's all about finding creative solutions to complex problems.
Absolutely.
I think with the right combination of ingenuity, technology, and a little bit of risk taking, we can overcome those challenges and create some truly amazing things.
I like that. A little bit of risk taking. Okay, so thinking about the potential impact on different industries, imagine the efficiency and cost savings of being able to create large, complex structures as a single piece. It's pretty mind blowing.
Absolutely. And it's not just about size either. It's about design possibilities. Imagine being able to create incredibly intricate designs with all these internal channels and complex geometries all in one piece. It would revolutionize so many industries.
I'm starting to see the bigger picture here. It's not just about making things bigger. It's about rethinking how we design and manufacture things. I bet our listener is already brainstorming ideas.
I hope so. But even with all these advancements, it's important to remember that it's not magic. We can't just press a button and have a giant, perfectly formed object pop out.
Right.
We still need to understand the underlying principles of injection molding. Material properties, mold design, cooling processes, all of that. It takes careful planning and expertise to make it work.
So the future of injection molding might be filled with these giant monolithic structures, but it's not going to be easy.
Definitely not. But the possibilities are truly exciting. And who knows, maybe one of our listeners will be the one to come up with that next breakthrough that takes injection molding to a whole new level.
That's a great point. It's inspiring to think that someone listening right now could be the one to, you know, make that next big discovery. So as we move into the final part of our deep dive, I want to leave our listener with a question to ponder. We've been talking about all these amazing possibilities with injection molding in the future. But let's bring it back down to earth for a minute. Why should our listener, who maybe isn't an engineer or a designer, why should they care about the size limits of injection molding? It's not like most of us are going to be designing giant, you know, injection molded parts anytime soon.
Well, I think it's a great example of human ingenuity. It shows how we're always pushing the boundaries of what's possible. Whether it's building those massive skyscrapers or creating tiny microchips, we're constantly shaping the world around us.
It's a good reminder that the world's always changing and evolving, and what seems impossible today Might be totally normal in a few years.
Absolutely. And beyond that, I think understanding the limitations of injection molding and how we're overcoming those limitations, it helps us appreciate how complex the whole manufacturing process really is. It's not as simple as just, you know, having a big machine or a fancy 3D printer. It's a whole system.
We've seen how advancements in material science and 3D printing and machine design, how they all come together to push those boundaries. Really fascinating.
Yeah. It's a great example of how different fields can work together to create something truly innovative. Those lines between disciplines are getting blurry, which is really exciting.
Definitely. So as we wrap up our deep dive into the size limits of injection molding, I want to leave our listener with this. The next time you pick up a plastic object, any plastic object, think about the journey it took to get there.
From that first idea, to choosing the materials, to creating the mold, to getting that injection molding process just right. Every step is a testament to human ingenuity and creativity.
And you never know, maybe looking at that simple plastic object will spark an idea. Maybe you'll be the one to come up with the next big thing in injection molding.
The possibilities are endless.
They really are. Thanks for joining us on this deep dive into the world of injection molding. We hope you learned something new and maybe even got inspired to think a little
