All right, let's do this. HDPE bottles, huh? You really want a deep dive into how these things are made?
Sounds like it.
Got a pretty specific file here too. How does an injection molding machine produce HDPE bottles? Txt. Somebody's been doing their research.
Yeah, it's a fascinating process, actually. More to it than you'd think.
I'm getting that feeling already. So we're going to figure out how these bottles go from little plastic pellets to. Well, the bottles we see everywhere. And why some are clear, some cloudy. All that good stuff.
Right. And the whole mold design thing is a whole other world.
Oh, yeah, that's what caught my eye. The source mentions some molds cost more than a car.
It's true. The engineering that goes into them is mind blowing. It's not just about shaping the bottle, it's the cooling, the ejection. So much more.
We're going to get into all that for sure. But first, got to start with the basics. What exactly is HDPE and why are we using it for so many bottles?
HDPE stands for high density polyethylene. It's a type of plastic that's known for its strength, flexibility and resistance to chemicals.
Okay, makes sense. So we're talking milk jugs, shampoo bottles. All that stuff needs to be tough.
Exactly. Plus it's recyclable, which is a big plus these days.
So it's like the superhero of plastics. Strong, versatile, eco friendly.
You could see that.
But okay, if HDPE is so great, why aren't all bottles made from it? Gotta be a reason, right?
Good point. It does have limitations. Not the best if you need something totally airtight, for example.
Ah, so like for delicate stuff that could get ruined by air.
Yeah, or liquids that are sensitive to light. Some bottles, especially really complex shapes, might be better made with different materials or methods altogether.
Right? Right. The source mentioned those super strict quality standards for HDP bottles, especially for like, medicine and food.
Oh, absolutely. We're talking about stuff that affects people's health. Can't have leaky medicine bottles. Right?
Definitely not. Big responsibility on the bottle makers though.
Sure.
Okay, before we go full on factory tour here, two main ways to make these bottles, right? Injection molding and blow molding.
You got it.
Could you give us a quick rundown of each before we get into the nitty gritty? Just so we're all on the same page?
Sure. So imagine you have a syringe, but instead of medicine, it's full of molten plastic. That's injection molding, in a nutshell. You heat the HDPE until it's liquid, inject it into a mold, let it cool, and boom, you have a bottle.
Okay. I'm picturing it. And blow molding. That's the one where it's like blowing up a balloon inside a mold, right?
Exactly. You start with a tube of molten HDPE called a paracin, put it in the mold, then air blows it up to match the shape.
Okay, cool. So which method is better?
Ah, that's the thing. Yeah, it depends. Each one has its own pros and cons. It all depends on what you're trying to make.

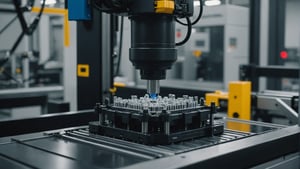

All right, challenge accepted. Let's break down injection molding. First, our source goes step by step, like we're right there on the factory floor. First up, material preparation. Sounds kind of boring, but I'm guessing it's more important than it seems.
Oh, it's crucial. First, gotta dry those HDPE pellets completely. Any moisture, even a tiny bit, can cause major problems during molding.
What kind of problems?
Think bubbles, weak spots in the bottle. Stuff you definitely don't want.
Got it. Dry them out. Then what?
Then you mix the dried HDPE with different additives depending on what the bottle is for.
So, like color?
Yeah, it could be colorants. Could also be UV stabilizers to protect the contents from sunlight. Or things to make it more impact resistant.
Huh. Like a custom recipe for each bottle. So I'm guessing consistency is key here, right?
Absolutely. If the mixing isn't perfect, you can get inconsistent color, weak spots, problems with how the plastic flows, all kinds of headaches.
Yikes. A recipe for disaster. Alright, so we've got our perfectly blended HDPE mixture. What happens next?
Then the real fun begins. Mold setup. This is where the precision engineering comes in.
Oh, yeah, that expensive mold we were talking about?
That's the one. We'll get into the details of mold design later, but for now, think of it as a super precise metal structure that determines the shape of our bottle.
Okay, I can picture that, but there's more to it than just the shape, right?
Right. You have to set up the mold to account for things like shrinkage. The plastic shrinks a bit as it cools, so you gotta plan for that.
So you're not just getting the shape right. You're predicting how the material's gonna behave the whole time.
Exactly. It's a delicate dance between science and engineering.
Okay, I'm hooked. So, molds in place. What happens next in the HDPE bottle saga?
Now it's showtime. The injection phase. This is where we take that perfectly Blended hdpe. Now a hot liquidy mess. And inject it into the mold.
Okay. Molten plastic. Sounds kind of dangerous.
Well, we were talking about temperatures from 400 to 550 degrees Fahrenheit.
Whoa, that is hot.
It's all carefully controlled, of course.
Yeah.
Gotta get that HTPE flowing just right.
I bet there's not a lot of room for error here, huh?
You're telling me. Pressure and speed. Gotta get both just right. Too slow, the plastic cools too fast in the mold, you end up with a short shot, a sure shot.
That's what not enough plastic gets in.
Exactly. The mold doesn't fill completely. Imagine a bottle, but it's missing the top or the bottom. Not good.
Definitely not what we want. What if the pressure's too high, though?
Then you get flashing. Excess plastic squeezes out of the mold. You get those little imperfections.
Ah, okay. So it's all about that perfect balance, making sure the mold fills evenly. No mishaps. What happens once it's full of this hot liquid plastic?
Cooling time. This is where things really start to take shape. Literally. You gotta cool the mold down to solidify the hdpe. And get this. Faster cooling usually means faster production. More bottles, quicker.
Oh, makes sense. Time is money on the factory floor, right?
You got it. But you can't rush it too much. If it cools unevenly, you get weak spots, warping, all sorts of problems.
Sounds like another balancing act. All right, so the bottles cooled down nice and solid.
Final step, ejection. Time to push that bottle out of the mold. Sounds simple, but if you mess this up, you can ruin a perfectly good bottle.
Oh, how so?
Those little threads for the cap, they can get messed up real easy if you're not careful with the ejection.
So from drying those little pellets to popping out the final product, every step needs to be precise. Amazing.
It's quite a process. And remember, this is just injection molding. We've still got blow molding to talk about.
Right? The balloon and the mold method. So that's better for those big containers, right? Like laundry detergent or those giant juice jugs.
Exactly. Great for hollow shapes, especially larger ones. But it's not as precise as injection molding. If you need tiny details, injection molding is the way to go.
Got it. So those little threads on a bottle cap, that's gotta be injection molded, most likely.
And that kind of precision is super important for industries with high standards, like pharmaceuticals. You gotta make sure that cap seals tight.
Right. No leaks allowed. So basically, injection molding for precision blow molding. For bigger stuff.
You got it. Sometimes they even use both methods on the same bottle. Like blow molding for the main body, then injection molding for a lid with a screw on top.
Huh. Combine the best of both worlds. Smart. You know, all this talk about molds, they're obviously a big deal and expensive. Can we talk more about that? What makes mold design so complex and costly?
Oh, absolutely. Mold design. It's the unsung hero of bottle making. For a high volume production line, a single steel mold can cost you. Well, think upwards of 0,000.
Seriously, 200 grand for one mold?
It's not just a chunk of metal, you know, it's precision engineering. They have to factor in everything. The wall thickness, the cooling process, how the bottle's going to get ejected. It's like a giant, complicated p. Okay.
I'm starting to understand why it's so pricey. So what are some of the key things they have to consider when they're designing these molds?
Well, one of the most important things is the cavity and the core. Those form the inside and outside of the bottle. Getting that wall thickness just right, that's critical.
Right? Because too thin and the bottle's weak. Too thick and it's wasting material.
You got it. And then there's the cooling system. We talked about how important that is. Well, that's built right into the mold itself.
Wait, so they've got like little pipes running through the mold for coolant?
Exactly. Got to have even cooling, no hotspots. And then there's the ejection mechanism. That's what pushes the bottle out. Has to be designed to release it perfectly without damaging it.
Man, that's a lot to think about. The engineers who design these moles, they must need to know everything about hdpe.
They do. They have to understand how it behaves at different temperatures, how it shrinks, everything.
Plus, they have to factor in the specific needs of the bottle. Like our source mentioned medical bottles needing those extra precise necks.
Right. Gotta make sure those caps seal tight. And then there's the material of the mold itself. Steel. Aluminum. Each has pros and cons.
Oh, yeah, what's the difference there?
Steel, it's the workhorse.
Yeah.
Super durable, lasts for millions of cycles, but it's expensive. Aluminum's cheaper, but it doesn't last as long.
So you gotta pick the right tool for the job. High volume production. You go with the steel, even if it costs more upfront.
Exactly. And here's a crazy part. They use computer simulations now to design and Test these molds before they even build them.
Wait, so they're like, virtually building the mold in a computer program?
Yep. They can see how the plastic will flow, how it'll cool, how the ejection will work. It helps them spot problems and tweak the design before they spend all that money building the real thing.
Technology is wild. Who knew there was so much science behind something as simple as a plastic bottle?
Right? And we haven't even talked about temperature control yet.
Oh, yeah, that was another thing that surprised me. I figured it was just heat it up, squirt it in, done. But it's way more complicated than that.
Way more. Temperature affects everything. How the HDPE flows, the strength of the bottle, how clear it is, even the chemical resistance.
So there's like a sweet spot for temperature at every stage?
You could say that too hot and you get problems like flashing or the plastic starts to break down.
Okay, and what about too cold?
If it's not hot enough, the plastic gets thick and dewy, it won't flow properly. You get incomplete filling those short shots we talked about.
So it's a constant dance. Finding that perfect temperature and making sure it stays consistent the whole time. And our source mentioned different types of HDPE have different temperature needs, too, Right.
It's not one size fits all. You got to pick the right HDPE for the job, then fine tune the temperature every step of the way.
So much precision. It's like. What's a good analogy? Baking a cake. You wouldn't bake a delicate cake at the same temperature as, like a super dense fruitcake. Right?
Perfect analogy. You gotta adjust based on the ingredients and what you're trying to create.
Next time I see an HDPE bottle, I'm gonna think of it as a perfectly baked cake.
I like it.
All this amazing technology, all this precision. But we can't ignore the elephant in the room, right? Plastic waste. It's a huge problem. How does HDPE stack up when it comes to being environmentally friendly?
That's the good news. HDPE is one of the most commonly recycled plastics out there. It could be melted down and made into new bottles or other stuff over and over again.
Okay, so that's good. Does that mean we're all good then? All those HDPE bottles are getting recycled. No problem.
Well, it's not quite that simple. Recycling rates vary a lot depending on where you are in, honestly, whether people actually put their bottles in the recycling bin.
So even though HDPE can be recycled easily, it still comes down to us doing our part. No escaping personal Responsibility, huh?
Pretty much. Technology can only do so much. It's up to all of us to close the loop and make sure this valuable material gets reused instead of ending up in a landfill.
Good point. Okay, before we wrap up this HDPE deep dive, what are the key things you want our listener to walk away with today?
First off, I hope they're amazed by how much goes into making something as simple as a plastic bottle. From the science to the engineering. It's mind blowing.
I know I am. I'll never look at a plastic bottle the same way again. And it's great to know that HDPE is recyclable. Gives me hope.
It should. And the industry's always evolving. New materials, new methods, all focused on making things more sustainable.
Any cool new stuff on the horizon you're particularly excited about?
Definitely. Keeping an eye on? Bio based plastics. These are made from renewable resources like plants.
Whoa, hold on. So we could be making bottles out of plants?
Exactly. And they could be just as strong and durable as regular plastic. Plus they can be biodegradable. Huge win for the environment.
Now that's what I call innovation. Alright, as we wrap up our HDPE adventure, what's the final message you want to leave our listener with?
Next time you grab an HDPE bottle, take a second to think about the journey it took to get there. All the science, the engineering, the human ingenuity. It's pretty amazing.
And remember, even though technology is awesome, our choices matter too. Recycle those bottles. Let's close the loop and build a more sustainable future one bottle at a time.
I couldn't have said it better myself.
And that concludes our deep dive into the world of HDPE bottles.
Thanks for joining us.
Wow. So we've covered a lot of ground today. It's amazing to think that something as simple as a plastic bottle can spark such a deep dive into science, engineering, and sustainability.
It really highlights how innovation is happening all around us, even in the most everyday objects. And believe it or not, the story of HDPE is still being written. There's a ton of research going on pushing the limits of what's possible.
I'm all ears. What kind of challenges are researchers tackling right now? What's next for the humble plastic bottle?
Well, one of the big ones is improving recyclability even further. We talked about those additives that give HDPE all its special properties, right?
Yeah. Color, UV protection, all that, Right.
Well, some of those additives can actually make it harder to recycle the plastic.
Oh, I see. So it's like you add stuff to make the bottle better, but then it's harder to break it down and reuse it.
Exactly. So researchers are trying to develop new types of additives that are more compatible with recycling. Got to close that loop.
Makes sense. Functionality and sustainability. Got to have both. What else are they working on?
Another big one is lightweighting. Basically using less plastic to make each bottle, but without sacrificing strength.
Less plastic, same performance. Sounds good to me. How do they do that?
Lots of computer modeling and simulation. Super high tech stuff. They're basically finding ways to design bottles with thinner walls, but still make them strong enough to do their job.
It's like those engineers are playing a super advanced game of Tetris, squeezing every bit of efficiency out of the design.
That's a great way to put it. And we can't forget about 3D printing. That's a game changer in the making.
Oh yeah, 3D printing. We touched on that earlier. So how could that revolutionize bottle making?
Imagine being able to print custom designed bottles on demand using only the exact amount of material you need. No waste, lower transport costs, endless possibilities for personalized packaging.
Wow. So instead of mass producing millions of identical bottles, you could create unique designs for different products, maybe even individual customers. The future is wild.
It is.
Okay, so as we wrap up our HD deep Dive, what's the final takeaway you want to leave with our listeners?
I'd say next time you see an HT bottle, don't just see a simple container. Think about all the science, the engineering, the human ingenuity that went into creating it.
It's a tiny marvel of modern technology, really. And the story's not over yet, not.
By a long shot.
Yeah.
So stay curious, keep learning, and who knows, maybe you'll be the one to come up with the next big innovation in plastic bottles.
And on that note, we'll wrap up our HDPE journey for today. Thanks for joining
