All right, looks like we've got a pretty hefty stack of stuff here, all about injection molding.
Yeah.
You really. You really want to get into the nitty gritty of this stuff, right?
I do. Yeah. I find it fascinating.
Yeah.
And there are so many, like, cool little details that most people don't realize.
Oh, absolutely. And it's like it's everywhere, you know, I mean, look around. And anything plastic, you know, how did it get made? You know, it's probably injection molded injection molding.
So it's. It's a pretty incredible process when you think about it.
Yeah.
You're basically taking these little plastic pellets, melting them down, and then forcing them into a mold under incredible pressure, and out pops whatever shape you want.
It's like magic.
It is kind of like magic, but there's a lot of science and engineering behind it to make sure it all works properly.
Absolutely. So let's start with the basics. I get we've got this study here you sent over. What factors influence the output of an injection molding machine.
Right.
And it talks about, you know, how to really crank up the efficiency.
Yeah.
Get those high quality parts quickly.
Exactly. Efficiency is key in any manufacturing process.
Right.
Especially these days when everyone wants things faster and cheaper.
For sure. For sure. Well, let's break down how this whole thing works.
Okay.
So you've got this machine, Right?

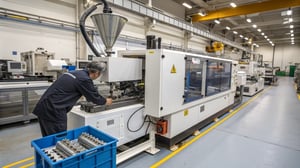

We got the injection molding machine.
The heart of the operation.
Absolutely. It's like a beating heart of the whole process.
And what are the essential parts of this machine?
So there are three main parts.
Okay.
You have the injection unit, the mold, and the clamping unit.
So the injection unit, I'm guessing that's where the plastic pellets go in.
Exactly. That's where the magic happens.
Good transformation.
The injection unit is responsible for melting the plastic and injecting it into the mold.
Okay. And how about the mold itself?
The mold is like the cookie cutter.
Okay.
It's what gives the plastic its final shape.
And I'm assuming it's got to be super precise.
Well, absolutely.
To get all those details right, the.
Mold has to be incredibly precise. Yeah. With all the right curves and cavities.
Yeah.
And it needs to be able to withstand the high pressure and temperature.
Wow. So it's not just some simple metal block.
No, not at all.
There's some serious engineering going on there.
It's a work of art in itself.
All right. And lastly, the clamping unit. What's its role in all this?
The clamping unit is the muscle okay. It holds the mold closed under immense pressure.
So it's got to be pretty strong.
It has to be incredibly strong.
Otherwise the whole thing would just burst open.
Exactly. Think of like a giant vise.
Got it. So we've got our injection unit melting and injecting the plastic, our mold, shaping it, and our clamping unit holding everything together.
Perfect summary.
Okay, now, your research highlighted three key areas that influence the output of this whole process.
Right.
Machine performance, mold design, and raw material characteristics.
Those are the big three.
All right, well, let's start with the machine itself. What are some of the performance factors we need to consider?
One of the most important factors is injection speed.
Okay. How fast we're pushing that molten plastic into the mold.
Exactly.
Makes sense.
You think faster is always better, Right?
Get those parts out quicker.
But it's not always that simple.
Really? Why not?
Well, you mentioned that study about factors influencing output.
Yeah.
They found that sometimes a slower, more controlled injection can actually improve the quality of the final product.
Huh. Interesting. Why would you want to slow things down?
Well, it all depends on the material you're using and the complexity of the mold.
Okay.
Sometimes if you inject too fast.
Yeah.
You can create internal stresses or trap air bubbles within the part.
I see. So it's about finding that sweet spot between speed and quality.
Exactly. It's a delicate balance.
And you mentioned the material matters too.
Absolutely. Different plastics behave differently when they're melted.
Right.
Some are more viscous than others, so some flow easily.
And some are more like trying to push honey through a straw.
That's a great analogy.
So it's not just about cranking up the injection speed. It's about understanding the nuances of the material and the mold design.
Precisely.
Okay, now, before we get too deep into those, you mentioned something earlier about the machine preparing the plastic.
Right.
Can you elaborate on that?
Sure. So we're talking about plasticizing. Plasticizing, essentially, how efficiently the machine melts and homogenizes the plastic granules before injection.
Okay. So it's not just about melting the plastic. It's about getting it to the right consistency.
Exactly. Think of it like turning a block of butter into a smooth, pourable liquid.
Okay, I can picture that.
You need the right temperature, the right amount of mixing, and the right amount of time to get it just right.
So if the machine is slow at plasticizing, that can create a bottleneck.
Absolutely. It doesn't matter how fast your injection unit is. If the plastic isn't properly melted and prepared.
Right. You'll end up with a lumpy mess Exactly.
And that can lead to all sorts of defects in the final product.
Okay. So we've got this carefully prepared molten plastic, and we're injecting it at the perfect speed. Now what. What role does the mold design play in all of this?
The mold is like the unsung hero of the whole process.
Really? How so?
Well, it's more than just a simple cavity.
Right.
It's a carefully designed system that guides the molten plastic to exactly where it needs to go.
Okay.
And controls how it cools and solidifies.
So it's like an intricate maze for the molten plastic to navigate.
Exactly. And there are all sorts of things to consider.
Like what?
Well, for example, the runner system, which is the network of channels leading from the injection point to the mold cavity.
Okay.
That has to be designed to minimize pressure loss and ensure even filling.
So it's not just about getting the plastic into the mold. It's about making sure it flows smoothly and evenly throughout the entire cavity.
You got it.
What about cooling? I'm imagining that plays a big role in how quickly you can cycle through parts.
Absolutely. The faster you can cool and solidify the part, the faster you can eject it and start the next cycle.
Makes.
And this is where things get really interesting.
How so?
We're not just talking about passively waiting for the plastic to cool down.
Okay.
We're talking about strategically placed cooling channels within the mold designed to create optimal temperature gradients and accelerate the solidification process.
So it's like having a built in air conditioner for your plastic part.
Exactly. And those cooling channels have to be carefully designed too.
I bet even slight variations can make a big difference.
Absolutely. They can affect the cooling rate, the quality of the part, and even the cycle time.
Wow. It's like a whole science in itself.
It is a science, and it's constantly evolving.
This is fascinating. I'm starting to see how efficiency isn't just about having a big, powerful machine.
Right.
It's about every element working together in perfect harmony.
That's a great way to put it.
All right. Now, let's not forget about the third element you mentioned. The characteristics of the raw materials themselves.
Right.
How does the type of plastic impact the injection molding process?
Well, different plastics have different melting points, viscosities, and shrinkage rates.
Okay. And I'm guessing all of those can affect how they behave during injection molding.
Absolutely. For example, some plastics are naturally more suited to injection molding than others.
Oh, really? Like what?
Well, polypropylene, for example, is known for its excellent flowability.
So it's easy to inject into the mold.
Exactly. It's like pouring water.
And what about a plastic that's not so easy to work with?
PVC is a bit more stubborn.
Okay.
Requires higher temperatures and pressures to process effectively.
So it's more like trying to push peanut butter through a pipe.
Pretty much.
All right, so we've got the right machine, the right mold, and the right plastic for the job.
Now you're getting it.
It's all coming together.
It's like putting together a championship team.
I like that analogy.
You need the right players and the right coach to win the game.
And in this case, the coach is the engineer who's designing and optimizing the whole process.
That's right. The engineer is the one who's calling the shots and making sure everything runs smoothly.
This is incredible. Right. I had no idea. There is so much to it.
It's a fascinating field, and we've only just scratched the surface.
I can't wait to dive deeper into optimizing this whole process for maximum efficiency.
Me neither.
But before we do that, let's take a step back and revisit this whole plasticizing thing.
Sure.
Can you break that down a little more for those who might not be familiar with the term?
Of course. So plasticizing is all about transforming those solid plastic granules into a molten flowable state.
Okay.
Imagine you have a bag of ice cubes.
Right.
To make them flowable, you need to melt them into water.
Right.
That's essentially what plasticizing does for plastic.
Got it.
The injection unit heats the granules, causing them to soften and transition into a viscous liquid state, ready to be injected into the mold.
So it's not just about melting the plastic. It's about achieving the right consistency for smooth and even flow.
Exactly. And achieving that ideal consistency requires a deep understanding of the specific plastic being used.
Makes sense.
Different plastics have different melting points, viscosities, and thermal properties.
So you can't just treat them all the same.
Nope. You have to adjust the temperature and the time to get it just right.
It's like cooking. You wouldn't use the same temperature and time to bake a cake as you would to roast a chicken.
Exactly. You have to tailor the process to the ingredients.
All right, so we've got our plasticized plastic ready to go. Now let's shift our focus back to the mold itself.
Okay.
You mentioned earlier that even subtle design elements can have a big impact on the final product.
Right.
Can you give me an example of how something seemingly minor can make a big Difference?
Sure. Let's talk about gate design.
Gate design.
The gate is the entry point where the molten plastic flows from the runner system into the mold cavity.
Okay.
Now, you might think that the size and shape of the gate wouldn't matter much.
Yeah.
But they can have a huge impact on the quality of the part.
Really? How so?
Well, a gate that's too small can create excessive pressure and turbulence, leading to defects like flow marks or even incomplete filling.
So it's like trying to force a river through a narrow channel. It's.
Exactly. You're going to get a lot of splashing and chaos.
And what happens if the gate is too large?
If the gate is too large, you can get slow filling, which can lead to premature solidification and other problems.
Ah, so it's all about finding that sweet spot.
Precisely. The ideal gate design strikes a balance between ensuring smooth and efficient filling while minimizing stress and turbulence in the molten plastic.
Not too big, not too small. Just right.
You got the Goldilocks zone of gate design.
I love it. So we've got the injection speed, the plasticizing, the gate design, all these little details that can make or break the final product.
And we haven't even talked about things like venting and cooling channel design.
There's so much to it.
There's a lot more to it than meets the eye.
I'm so starting to see how much thought and precision goes into crafting a successful injection molding process.
It's a fascinating field.
Absolutely. All right, well, let's take a break here, and when we come back, we'll delve into the exciting world of process parameter optimization.
Sounds good.
Stay tuned.
I'm ready to dive deeper.
Okay, so we've got the machine, the mold, the material, all these intricate pieces working together.
It's like an orchestra.
Yeah, yeah. Like a well oiled machine.
Exactly. And now it's time to fine tune that orchestra.
All right, so let's talk about process parameter optimization.
That's where the real magic happens.
Okay, break it down for me.
So we've got all these variables we can tweak.
Right.
Injection speed, melt temperature, holding pressure, cooling rates.
It's like a giant mixing board with all these knobs and dials.
Exactly. And we're trying to find that sweet spot.
Sweet spot for what?
For high quality parts and lightning fast cycle times.
Okay, so where do we start?
Well, one of the key parameters is injection pressure.
Injection pressure.
We talked about finding the right injection speed.
Right.
But the pressure we use to push that molten plastic into the mold is equally important.
Okay. And what happens if we get the pressure wrong?
Well, if the pressure is too low.
Yeah.
You risk short shots or incomplete filling.
So the plastic doesn't quite make it all the way into the mold.
Exactly. And if the pressure's too high. Yeah. You could end up with flash, where the plastic squeezes out of the mold seams.
Oh, I see. Like excess material.
Exactly. And that means more work to trim it off.
So it's all about finding that Goldilocks pressure.
You got it. Not too high, not too low, but just right.
Okay. What else do we need to tweak in this manufacturing orchestra?
Well, temperature control is another big one.
Temperature. We've talked about cooling the molded part quickly.
Right. But controlling the temperature of the molten plastic itself is equally important.
Okay, and why is that?
Well, if the plastic's too cold.
Yeah.
It won't flow properly.
Okay.
And you could end up with all sorts of defects.
Like what?
Surface defects, internal stresses, all sorts of problems.
And what if it's too hot?
If it's too hot, you risk degrading the material.
Oh, so it loses its strength and durability.
Exactly. It's a delicate balance.
Wow. It seems like there are so many things that can go wrong.
There are a lot of variables to.
Consider, but when you get it right.
When you get it right, it's a beautiful thing.
So how do engineers actually go about optimizing all these parameters?
Well, one approach is trial and error.
Trial and error.
You systematically adjust parameters and observe their results.
So it's a bit of a guessing game.
It can be, but it's also a learning process.
But I'm guessing that can be pretty time consuming.
It can be, especially for complex parts.
Are there any faster ways to do it?
Fortunately, there are more sophisticated methods.
Like what?
Like design of experiments, or doe. It allows you to test multiple variables simultaneously.
Oh, so you can see how they interact with each other.
Exactly. And that helps you identify the optimal settings more efficiently.
Okay, so DOE is like a shortcut to finding the sweet spot.
You can see that.
What about cutting edge technologies? Are there any being used in process optimization?
Absolutely. Artificial intelligence is starting to make waves in the injection molding world.
AI that's pretty cool.
It is. AI Algorithms can analyze vast amounts of data from the molding process, identifying patterns and correlations that humans might miss.
So it's like having an extra brain in the factory.
Exactly. And that allows us to make more.
Precise adjustments and hopefully avoid those costly mistakes.
Right. And it can even help us predict potential problems before they arise.
Now, that's impressive.
It's pretty amazing what AI can do these days.
So we've talked a lot about optimizing for speed and efficiency, but what about the quality of the parts themselves?
Quality is always paramount, of course.
But how do we measure it?
Well, one of the key metrics is dimensional stability.
Dimensional stability.
We want to make sure that the parts are consistent in size and shape.
Okay, so every part that comes out of the mold is identical.
Exactly. And that they meet the precise specifications outlined in the design.
So it's not just about making parts quickly. It's about making sure they're the right size and shape every single time.
You got it? That's dimensional stability.
All right. And what are some of the factors that can affect dimensional stability?
Well, shrinkage is a big one.
Shrinkage.
As the molten plastic cools and solidifies, it naturally shrinks.
Okay, that makes sense.
And the amount of shrinkage varies depending on the type of plastic, the whole design, and even the processing parameters.
So if we don't account for shrinkage, we could end up with parts that are too small or out of shape.
Exactly. It's like baking a cake that deflates in the middle if you don't cool it properly.
So how do we prevent that from happening in injection molding?
Well, one approach is to use materials with low shrinkage rates.
Okay.
But even then, we still need to factor in some degree of shrinkage when designing the mold.
So it's all about anticipating and compensating for that shrinkage.
Precisely. And we can also adjust processing parameters like holding pressure, pressure and cooling time.
To minimize shrinkage and ensure dimensional stability.
Exactly. It's all about fine tuning the process.
Okay, so shrinkage is one challenge. What are some of the other headaches that engineers face when trying to optimize injection molding?
Well, warpage is another common one.
Warpage. What's that?
Warpage is where the molded part twists, bends, or distorts out of its intended shape.
Oh, I see. So it's no longer the perfect shape we designed.
Right. And it's often caused by uneven cooling or internal stresses within the material.
So it's like a piece of wood that warps after getting wet.
Exactly. It's the same principle.
Okay, and how do you prevent warpage?
Well, it often comes down to optimizing the mold design.
So you might tweak the wall thickness or add some reinforcements.
Exactly. You can also manipulate the cooling process to ensure more even solidification.
So it's all about controlling those internal stresses and making sure the part cools evenly.
Precisely.
This is fascinating. It seems like every aspect of injection molding is interconnected.
It is. It's a complex system with a lot of moving parts.
The machine, the mold, the material, the.
Process parameters, they all play a role in achieving that perfect balance of speed, quality and efficiency.
It's like a giant puzzle where everything has to fit together just right.
That's a great analogy.
Okay, now let's step outside the box for a minute.
Okay.
We've talked about everyday objects like phone cases and Lego bricks, but I'm guessing injection molding is used to make some pretty amazing things that most people wouldn't even think of.
You're absolutely right. Injection molding is incredibly versatile.
So what are some of the more unconventional applications?
Well, one area that's particularly exciting is the medical field.
The medical field?
We're seeing injection molding used to create everything from intricate surgical instruments to implantable devices.
Wow. Like what kind of implantable devices?
Things like heart valves and artificial joints.
That's incredible. I never would have thought of injection molding being used for something so delicate.
It's amazing what you can do with this technology.
So what are the advantages of using injection molding in these types of applications?
Well, precision is paramount in medical devices, of course. And injection molding allows us to achieve incredibly tight tolerances.
So you can make parts with very specific dimensions.
Exactly. And we can create parts with very complex geometries.
So it's not limited to simple shapes?
Not at all. We can create all sorts of intricate features.
What about consistency? Are the parts all identical?
Yes, that's another key advantage. Injection molding provides a high level of consistency and repeatability.
So you know that every part that comes out of the mold will meet the same exacting standards.
Exactly. That's crucial for medical devices.
This is fascinating. It sounds like injection molding is playing a vital role in advancing medical technology.
It is. And it's not just limited to the medical field.
Oh, really?
Injection molding is also used in the electronics industry.
Okay, I can see that.
And the automotive industry makes sense. And even the aerospace industry.
Wow. So it's a truly versatile technology.
Absolutely. The possibilities are endless.
This has been an eye opening journey into the world of injection molding.
I'm glad you're enjoying it.
I am. I'm learning so much.
That's a fascinating field.
But before we wrap up, there's one more topic I want to touch on.
Okay.
Sustainability.
Ah, yes, a very important topic.
How is the injection molding industry adapting to the growing demand for eco friendly practices?
Well, that's a great question. And it's something that the industry is taking very seriously.
So what are some of the things that are being done?
Well, one major trend is the increasing use of recycled plastics.
Recycled plastics?
Instead of relying solely on virgin plastics, manufacturers are incorporating more and more recycled content into their products.
So those plastic bottles we throw in the recycling bin could actually come back as something new and useful.
Exactly. It's all about closing the loop.
And is the quality of recycled plastic as good as virgin plastic?
It's gone a long way in recent years.
So it's good enough for most applications.
For many applications, yes.
What about bioplastics? Are those being used in injection molding?
Absolutely. Bioplastics are derived from renewable resources like cornstarch or sugarcane.
So they're biodegradable?
Exactly. They break down naturally over time.
That's fantastic. So we've got recycled plastics and bioplastics.
Two great options for more sustainable injection molding.
What about energy efficiency? Is that being addressed?
Yes, definitely. Injection molding machines can be energy intensive.
So there's a lot of room for improvement there.
Exactly. Manufacturers are constantly looking for ways to reduce their energy consumption.
Like what?
Well, they're using more efficient heating systems, optimizing cycle times to reduce wasted energy, and even incorporating renewable energy sources like solar power.
So it's a holistic approach to sustainability?
It is. From the raw materials to the energy used to the disposal of the final product.
It's great to see that the industry is taking this seriously.
It's essential for the future of our planet.
I agree. So we've got recycled plastics, bioplastics and energy efficiency, all contributing to a more sustainable injection molding industry.
And the innovations don't stop there.
Oh, really? What else is on the horizon?
One area that's really exciting is multi material injection molding.
Multi material injection molding? What's that?
It involves combining different types of plastics within a single molded part.
Wow. So you can create products with unique properties and functionalities.
Exactly. Imagine a toothbrush with a soft, flexible grip and a rigid, durable head.
Okay, that's cool.
Or a smartphone case with a hard outer shell for protection and a soft inner lining to cushion the device.
That's amazing. So many possibilities.
The possibilities are endless.
What other innovations are shaping the future of injection mold?
Well, 3D printing is starting to make its mark.
3D printing? I thought that was more for prototyping.
It is, but it's also being used to create production molds.
Really?
Especially for small batch production.
So it's a way to quickly test out new designs.
Exactly. And it also allows for more complex.
Mold designs because you're not limited by traditional manufacturing methods.
Precisely. 3D printing opens up a whole new world of possibilities.
It's incredible how technology is constantly evolving.
It is, and it's exciting to be a part of it.
All right, well, this has been an absolutely fascinating deep dive into the world of injection molding.
I'm glad you enjoyed it.
I have. We've covered so much ground, from the basics to the cutting edge, and I feel like I've gained a whole new understanding of this incredible technology.
It's a fascinating field, for sure.
But before we wrap up, I want to leave our listeners with a challenge.
Okay. I like challenges.
As we've seen, injection molding is a powerful tool for creating a wide range of products.
It is.
But it's also a technology that comes with responsibilities.
Absolutely. We have to be mindful of the environmental impact.
Exactly. So as you go about your day, I encourage you to take a closer look at the plastic objects around you. Consider their design, their material, their purpose, and ask yourself, how could this product be made even better, more sustainable, more in harmony with our planet?
That's a great challenge.
It's a challenge for all of us.
We all have a role to play in creating a more sustainable future.
Well said. And on that note, we'll bring this deep dive to a close. Thanks for joining us on this journey of discovery.
It's been my pleasure.
We've. We've really gone deep, haven't we?
We have, yeah. It's amazing how much there is to learn about something that seems so simple on the surface.
Right. It's like you see these plastic parts everywhere, and you never really think about how they're made.
Exactly. But once you start digging into the details, it's really fascinating.
It is. I'm looking around right now, and I'm seeing injection molding everywhere.
I know, right?
My phone case, my computer mouse, even the light switch on the wall.
It's ubiquitous.
It is. And it's all thanks to this incredible process.
A process that involves a lot of science and engineering.
Oh, yeah. We've talked about the machines, the molds, the materials, the parameters.
It's a complex system, but when it all comes together, it's really impressive.
It is. So you've clearly spent a lot of time thinking about this. What sparked your interest in injection molding?
Well, for me, it's the combination of art and science.
Art and science.
Yeah. On one hand, you have the precision engineering, the meticulous calculations, the quest for optimal parameters. Exactly. But on the other hand, there's this element of creativity, problem solving, pushing the boundaries of what's possible.
I see what you mean. It's like a sculptor working with molten plastic.
Yeah. Shaping and molding it into forms that fulfill both functional and aesthetic purposes.
That's a great way to put it. So can you tell me about a time when you encountered a particularly challenging problem in an injection molding project?
Hmm, let me think. Oh, yeah. I remember one time we were working on a medical device component.
Okay.
And it had a very thin wall section.
Thin walls, those can be tricky.
They can. And we were having trouble with short shots. Short shots where the molten plastic wasn't completely filling the mold cavity.
Oh, so the part was coming out incomplete.
Exactly. And we tried everything we could think of to fix it.
Like what?
We adjusted the injection pressure, the injection speed, the temperature. We even tried different types of plastic, and nothing worked. Nothing seemed to work. We were stumped.
So what did you do?
Well, we finally realized that the problem wasn't the injection process itself.
Okay.
It was the mold design.
The mold design.
There wasn't enough venting in that thin walled section. Yeah. So trapped air was preventing the plastic from flowing properly.
Oh, I see. So the air was getting in the way.
Exactly. It was like trying to inflate a balloon with a tiny hole in it.
The air pressure builds up and prevents it from expanding fully.
Exactly. That's a great analogy.
So how did you fix it?
We added a few strategically placed vents in the mold.
And that solved the problem.
It did. The short shots disappeared, and we were able to produce perfect parts.
That's great. So sometimes the solution is simpler than you think.
Sometimes it just takes a fresh perspective.
Exactly. Now, you mentioned that you find the intersection of art and science in injection molding. Fascinating.
I do.
How does that play out in the design process itself?
Well, you need a solid understanding of the engineering principles.
Right. The science of it all.
Exactly. But you also need that creative spark, that ability to visualize how the molten plastic will flow and behave within the mold.
So it's like a chef who understands both the science of cooking and the art of cooking, creating delicious flavors.
That's a great analogy.
So it's a balance of calculation and intuition.
Exactly. And that intuition comes with experience.
Right. The more you work with it, the better you understand how it behaves.
Exactly. You start to develop a feel for it.
Now, speaking of the future, what trends or innovations in injection molding are you most excited about?
Well, one area that I think holds a lot of potential is artificial intelligence.
AI we talked about that a little bit in the last part.
Right. But I think we've only just scratched the surface of what AI can do for injection molding.
Like what?
Well, I think AI can play a big role in things like predictive maintenance, quality control, and even material selection.
So it's like having an AI assistant helping you every step of the way.
Exactly. And as AI gets more sophisticated, it's only going to get better.
That's pretty exciting.
It is. It's a really interesting time to be working in this field.
Well, this has been an absolutely fascinating deep dive into the world of injection molding.
It's been my pleasure.
I've learned so much, and I'm sure our listeners have, too.
I hope so.
It's incredible how something that seems so simple on the surface.
Right.
Is actually so complex and nuanced.
It is. There's a whole world of science, engineering and creativity behind every plastic part.
Well said. Well, on that note, we'll wrap up this episode of the Deep Dive. Thanks for joining us.
Thanks for having me.
And until next time, keep those minds curious and those questions
