All right, get ready to go small. Like, really small, because today we're talking about a world where tiny discrepancies can have huge consequences. We're diving into dimensional deviation in mold manufacturing.
Yeah, these are like microscopic gremlins that.
Can just throw a wrench into everything.
Into the whole process. Yeah.
You've sent over some really fascinating sources on this, and I'm really excited to get into it.
Yeah. It's a topic that often flies under the radar, but it's a really big deal.
Oh, yeah.
We're talking about the difference between a product that works perfectly and a costly recall or worse, a safety hazard.
Oh, wow. Okay, so for those who maybe aren't familiar, let's start with the basics. What exactly is dimensional deviation, and why should we care?

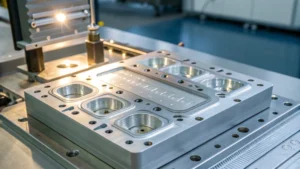

So think of it this way. A mold is like a blueprint for creating identical parts.
Okay.
But what happens if the blueprint itself has tiny errors? Those errors get replicated in every single part.
Right.
And that's where things get really interesting.
Okay.
Dimensional deviation refers to those tiny variations in size and shape that can have a ripple effect throughout the whole manufacturing process.
Okay. So we're not just talking about things looking a bit off, then. These tiny variations can. Can actually impact how well parts fit together, how the. How the product functions, and even. And even how long the mold itself will last.
Yeah, exactly. Precisely. You might be surprised to learn that in the world of precision injection molding, a deviation the width of a human hair can be enough to make a mold useless.
Really? Wow. Okay.
Yeah.
That's a pretty stark illustration of how, like, microscopic details can have these big consequences. Right, so let's play detective, then, and try and uncover the usual suspects behind this. This dimensional deviation mystery.
All right, well, one of the prime culprits is material behavior.
Okay.
Different materials, they have different personalities, so to speak. They expand and contract at different rates when heated or cooled.
Right.
And if those properties aren't carefully accounted for during the design process, it can lead to dimensional discrepancies down the line.
It makes you realize that mold making is as much an art as it is a science.
Yeah.
You need a really deep understanding of materials to predict how they're going to behave under all these different conditions.
Absolutely, absolutely. And I recall a project early in my career where we were working with a particularly tricky polymer.
Oh, yeah.
It had this unusual tendency to expand a lot when exposed to certain temperatures, and we hadn't fully factored that into our calculations.
Oh, no.
It ended up throwing off the dimensions of the mold, and it Caused a major setback for the project.
It's like baking a souffle. Get one ingredient slightly off and the whole thing collapses.
Yeah. A very apt analogy. And of course, we can't forget about the machines themselves. The equipment used to create these molds needs to be incredibly precise.
Yeah. Like a surgeon's scalpel.
Just like that. Yeah. Because if the machine that makes the mold is slightly off, every single mold it produces will also have that same error.
Right. Okay.
And it's not just about that initial accuracy. Maintaining that precision over time is crucial.
Yeah.
Regular maintenance is key. Even minor wear and tear on a machine can lead to dimensional deviations in the parts it produces.
It's like taking your car in for regular tune ups to prevent bigger problems down the road.
Precisely. Yeah. And then there's the design itself. Intricate designs with lots of fine details, especially those with multiple cavities, are inherently more prone to two dimensional variation.
So it's like the more complex the design, the more opportunities there are for tiny errors to just creep in.
Yeah, yeah, exactly.
And I imagine environmental factors like right temperature and humidity can also play a role.
You're absolutely right. Those fluctuations can cause materials to expand or contract unexpectedly, throwing off those intended dimensions.
Okay.
One of the sources mentions a case where high humidity levels in a, in a manufacturing facility caused significant swelling in the, in the material.
Oh, wow.
And it led to parts that were slightly larger than intended.
It's amazing how even the environment can conspire to create these dimensional deviations. It's a real battle against the elements.
Yeah.
So. So we've, we've uncovered a few of the culprits behind dimensional deviation. But, but what I'm really curious about is how these, these tiny discrepancies actually show up in the real world.
Yeah.
What. What are the tangible consequences?
That's where things get really interesting. One of the most immediate consequences is. Is difficulty in assembly.
Okay.
Imagine trying to fit together puzzle pieces that are just slightly the wrong shape.
Yeah. Frustrating. And, and I imagine it's not just annoying. It can have real consequences for, for the products. For the product's functionality and quality.
Exactly. Yeah. We're not just talking about a loose screw here. If critical components don't fit together perfectly, it can compromise the whole system.
The sources you sent over actually mention a few real world examples that really highlight the impact of dimensional deviation.
Absolutely. And one that comes to mind involves the automotive industry. There was a case where a. A minor dimensional deviation in a transmission component led to misalignment during assembly.
And I Bet that seemingly small issue had a domino effect, right?
Exactly. It caused increased wear and tear on the gears and eventually led to premature failure.
It makes you realize that something as seemingly insignificant as like a fraction of a millimeter can be the difference between a car running smoothly and ending up in the repair shop.
It definitely underscores why the automotive industry places such a. A high premium on precision.
Yeah.
And it's not just about cars. Think about electronics, where we're constantly pushing the limits of miniaturization.
So as devices get smaller and more intricate, those tolerances get even tighter.
Precisely. In the production of microchips, for example, even a deviation of a few nanometers, that's billionths of a meter.
Wow.
Can render a chip useless.
That's, that's mind boggling. Yeah, it's. It's incredible to think that we're, that we're working at, at such a microscopic level. So, so how do, how do manufacturers even begin to measure and control these, these minute variations?
That's where, that's where advanced metrology techniques come into play.
Okay.
One of the sources mentions a tool called a coordinate measuring machine.
Okay.
Or a CMM.
I've, I've heard of CMMs, but I'm, I'm a little fuzzy on how they work, so.
Think of it as a 3D scanner for physical objects. It uses a probe to map out the exact shape and dimensions of a part. Comparing it to the digital design, CMMs can detect discrepancies with incredible precision down to a few microns.
So it's like having a robotic inspector that can just spot those invisible flaws. It's fascinating how technology allows us to measure and control things at such a minute level.
And those measurements are crucial for maintaining quality control throughout the entire manufacturing process. One of the key concepts here is statistical process control, or spc.
Break that down for me. What is spc and why is it so important in the context of dimensional deviation?
It's essentially a method for monitoring and analyzing data from the manufacturing process to identify trends and variations. By tracking those measurements over time, manufacturers can spot subtle shifts that might indicate a problem even before it results in defective parts.
So it's like having an early warning system that can detect those tiny deviations before they snowball into major issues.
Exactly. It allows manufacturers to make adjustments to the process before those variations lead to scrap parts, rework, or even product recalls.
That makes sense. We've talked about the causes and consequences of dimensional deviation, but what about the financial implications? I imagine these issues can have a significant impact on the Bottom line, you're absolutely right.
Dimensional deviation can lead to increased production costs due to the need for additional resources, rework, and even scrap.
And those costs can add up quickly.
Precisely. One of the sources actually quantifies the impact, stating that dimensional deviation can result in a significant percentage increase in overall production costs.
That's a pretty compelling argument for investing in preventative measures.
Absolutely. And that's where the concept of cost of quality comes into play. It's essentially a way of looking at the total costs associated with preventing and dealing with quality issues throughout the entire manufacturing process.
So it includes everything from investing in training and equipment maintenance to, to the cost of fixing errors after they've occurred.
Exactly. And the key takeaway is that investing in prevention upfront can save money in the long run by reducing the likelihood of those costly defects and rework.
It's like that old saying, an ounce of prevention is worth a pound of cure.
Precisely. And this principle applies not only to dimensional deviation, but to quality management in general.
It seems like a holistic approach to, to manufacturing, recognizing the interconnectedness of all aspects of the process.
Absolutely. And it's an approach that's becoming increasingly important as products become more complex and customer expectations for quality continue to rise.
It's easy to overlook the level of precision involved in creating the everyday products we use. But after learning about all the factors that can contribute to, to dimensional deviation, I'm starting to see those objects in a new light.
It's a good reminder that behind every seemingly simple product is a complex web of engineering, design, and manufacturing processes all working in harmony to achieve that level of precision. And it's a reminder that even the tiniest variations can have a ripple effect throughout that, throughout that entire system.
So what does all this, what does all this mean for the future of manufacturing? Will we ever reach a point where we can completely eliminate dimensional deviation?
That's a great question, and it leads us into some exciting territory. While it's unlikely that we'll ever achieve absolute perfection, there are some emerging trends that are pushing the boundaries of precision even further.
Okay, let's, let's talk about those. What's, what's on the horizon for, for the world of, of dimensional accuracy? I'm all ears. Okay, give me a, give me a peek into what the, what the future holds for, for making things with, with incredible precision.
One of the most fascinating developments is the, the rise of, of smart manufacturing. Imagine a, a network of sensors embedded in molds and machines constantly gathering data, okay, on temperature, pressure, vibration, even, even wear patterns.
So it's like. It's like giving the manufacturing process a sixth sense, allowing it to. Allowing it to react to two changes in real time.
Exactly. And this constant stream of data isn't just about spotting problems as they happen. It's about predicting potential deviations before they even occur. Like a supercharged preventative maintenance system.
It's almost like having a crystal ball that can anticipate those tiny gremlins before they wreak havoc. I'm curious, what kind of impact will this have on the pursuit of dimensional accuracy?
It could be a game changer. This level of real time monitoring and analysis could help manufacturers achieve levels of precision and consistency we've never seen before, even in the most intricate designs.
So we're talking about taking the guesswork out of the equation and replacing it with data driven insights.
Precisely. And speaking of game changers, let's talk about 3D printing and how it's revolutionizing mold making. While it's still early days, 3D printing holds the potential to create molds with incredible complexity and precision that were simply impossible with. With traditional methods.
It sounds like, it sounds like 3D printing is giving, is giving designers like a magic wand to conjure molds with intricate details and unprecedented accuracy. What kind of advantages does this offer in terms of dimensional deviation?
One of the biggest advantages is the ability to create molds that are perfectly tailored to the specific needs of each product. This level of customization allows for greater control, control over dimensions and tolerances.
It seems like 3D printing could really open doors for smaller businesses and startups, allowing them to create high quality molds without needing those huge investments in traditional tooling.
You're absolutely right. That accessibility is one of the reasons 3D printing is being hailed as such a disruptive force in the manufacturing world. But even as these technologies advance, it's crucial to remember that the human element remains essential.
Right. Because no matter how sophisticated the machines become, it still takes skilled individuals to design, implement and interpret those systems exactly.
And thankfully, there's a growing emphasis on training and education to equip the manufacturing workforce with the skills they need to keep pace.
What kind of skills are we talking about?
Well, it's not just about knowing how to operate the machines. It's about. It's about understanding the underlying principles of precision and being able to adapt to new technologies as they emerge.
It seems like a deep understanding of dimensional metrology is becoming increasingly important for anyone working in this field.
Absolutely. And it's not just technical skills. It's about, it's about fostering problem solving. Critical thinking and a mindset of continuous learning.
So as we venture further into this world of high tech manufacturing, those human skills remain crucial. It's a fascinating balance between technological advancement and the need for skilled individuals who can harness those advancements.
Couldn't said it better myself.
Well, this has been a truly eye opening deep dive into the world of dimensional deviation. We've explored those, those hidden factors that can impact the quality, reliability and even the safety of the products we use every day.
And while those microscopic deviations might seem insignificant at first glance, we've seen how they can have far reaching consequences. But thankfully, we've also seen the incredible advancements and the dedicated individuals working tirelessly to minimize those imperfections.
After this deep dive, I'm going to look at everyday objects with a newfound appreciation for the intricate processes and the attention to detail that go into creating them.
It's a good reminder that even in a world increasingly driven by automation, the human touch remains essential in achieving that level of precision.
Well, on that note, I think it's time for us to wrap up this, the fascinating exploration for all our listeners out there. Keep exploring, keep learning and keep marveling at the world of making things. Until next
