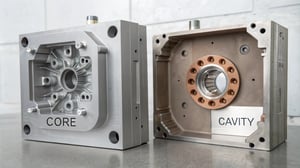

Alright. Looks like we're diving into injection molding today. Specifically the core and cavity sides. Tons of material here, definitely enough to get our heads spinning.
It's a whole world, really. Way more complex than most people realize.
So our mission today, I guess is to sift through all this info and figure out what really matters, you know, like what makes this process tick. Okay. I'm already seeing some fascinating stuff, like what even are the core and cavity sides?
So think of it like making a complex jigsaw puzzle. You've got two sides that fit together perfectly.
Okay. One makes the inside, the other makes the outside. Got it. But I bet there's more to it.
Way more. The cavity side is what gives the part its final shape and surface details. Like if you were making a phone case, the cavity mold would determine the placement of the buttons, the camera cutout, all those fine details.
Okay. And the core side, what's its role in all of this?
The core shapes, the internal features. Think of it as the backbone of the part. It creates things like screw threads, internal support structures, even those little bumps on LEGO bricks. Ah, so it's not just about the external appearance, it's about the functionality of the part too. This is starting to make sense. So if we mess up the design of either the core or cavity, what happens? Just a bad looking part or can it be more serious?
Oh, it can be way more serious. A poorly designed core can lead to weak points in the part, making it prone to breakage. And a flawed cavity design can cause all sorts of problems with the surface finish. Like sink marks or warping.
Sink marks? Is that like when the plastic kind of caves in?
Exactly. It happens when the material cools unevenly, leaving those unsightly depressions on the surface. Not exactly what you want in a high quality product. And warping, well, that's when the part twists or bends out of shape as it cools.
I'm starting to see how crucial it is to get this core and cavity design right. It's like a recipe. If you get the ingredients wrong, the whole thing falls apart. So what are these molds actually made of? Are we talking about some high tech, space age material? It depends. Some molds are made from tough, durable tool steels. Think P20 or H13 steel. P20 is good for moderate runs. But if you're cranking out millions of parts, H13 can handle that wear and tear.
Makes sense. Like picking the right tool for the job, huh?
Exactly. Now, if you need super fast cooling, beryllium copper alloys are the way to go. They're expensive, but worth it for high volume production.
Okay, so the material choice is about more than just durability. It's about how well the mold handles heat. That makes sense. Now, what about temperature? How did that play into all of this?
Temperature is the unsung hero of injection molding. It's like baking. Too hot or too cold, and your cake's a disaster. Same with plastic. The molten plastic needs the right temperature to flow properly into the mold. And then it has to cool down at a controlled rate to solidify perfectly.
So if the cooling isn't right, you can get those warping and shrinkage issues we talked about.
You got it. And here's where it gets interesting. The core and cavity actually cool at different rates.
Really? Why is that?
The core, with all its mass, holds heat longer like a cast iron pan. The cavity needs to cool faster to achieve those crisp details on the outside of the part. It's a delicate balance.
Okay, so it's a symphony of heat and precision, huh? The chords like the cellos holding those low notes, while the cavities the violins all bright and fast. I like that analogy. But what happens if the two sides don't line up perfectly? Is that a big deal?
It can be. Imagine putting together a puzzle where the pieces don't quite fit. You might get mismatched edges, gaps, even excess material squeezing out. We call that flash.
Flash. Okay, that doesn't sound good. So alignment issues are a major headache.
Major headache. And they can lead to all sorts of other problems down the line. Like think about trying to eject the part from the mold if the core and cavity aren't perfectly aligned. Ooh.
Yeah. It's like trying to get a muffin out of a tin with straight sides. It's going to get stuck.
Exactly. So designers need to consider draft angles, those slight tapers that allow the part to release smoothly.
Speaking of keeping things running smoothly, I'm curious about the maintenance involved in all of this. Are we talking constant cleaning and adjustments, or are these molds pretty self sufficient once they're made?
It's more like a well oiled machine. You gotta keep things clean. Yeah, but it's not just wiping them.
Down more than a quick scrub. Huh?
Right. Any residue can mess up the surface of your part. So regular cleaning's key and lubrication. Moving parts need that to avoid wear and tear. But the real stickler is alignment.
Alignment? Yeah. We were just talking about.
Even the tiniest misalignment can snowball into a whole bunch of defects.
Okay, so those draft angles Those are all about making sure the part comes out of the mold cleanly.
Spot on. Think about it. If you had a mold with perfectly straight sides, how would you get the part out?
Good point. So those angles are, like, built in escape ramps for the part.
That's a great way to put it. Without them, you risk the part sticking, warping, even breaking, especially with those complex shapes. You got to be really smart about those wrapped angles.
It's like those puzzle pieces that are almost impossible to get apart. So we talked about cooling before, but maybe we can dig a little deeper. What happens if you don't pay enough attention to core cooling? I mean, we said it holds heat longer, but so what?
It can really mess things up. If the core is not cooling. Right. The part might not solidify evenly. You could get those sink marks we talked about, or the cycle time could go way up.
Cycle time. Oh, right. That's how long it takes to make each part.
Yep. And in mass production, every second counts. Even a little delay in cooling can hit you in the wallet.
Okay, so it's not just about quality. It's about keeping the whole factory humming. Speaking of cycle time, I'm curious about how design choices can affect how long it actually takes to make a part.
Materials, A biggie there. Remember those beryllium copper alloys?
The Ferraris of the mold making world? Yeah, I remember.
They're amazing at transferring heat, which means the mold can cool down way faster. We're talking seconds shaved off each cycle and over a big run. That's huge.
So, like, if you're making a zillion bottle caps, choosing the right material for the mold could mean making, I don't know, thousands more per hour just from that one choice.
You got it. And there's even fancier stuff like conformal cooling that can optimize things even further.
Conformal cooling. I read something about that. It sounded pretty high tech.
It is. Instead of those boring, straight cooling channels, you make channels that follow the shape of the part. Like a custom fit cooling system.
Okay, so like, instead of just icing your whole arm, you put a cold pack right where it hurts.
Perfect analogy. Conformal cooling can really slash those cooling times, improve part quality, even reduce stress on the mold itself.
Sounds like a game changer.
It is really pushing the limits of what's possible. But even with all this fancy tech, you can still mess things up in the design phase.
Like, what kind of mistakes?
Wall thickness. That's a common one. You got to be consistent. If you've got a thin walled container, but one section's thicker. Guess what?
That section is going to cool slower.
Yep. And that can cause warping stress the whole nine yards. It's like trying to bake a pizza with uneven dough. Some parts are going to be raw, some burnt.
Okay. So even thickness is key. Got it. What else?
Venting. Super important. You need to let those trapped air and gases escape during injection. Otherwise, air pockets. And those can weaken the part, cause surface defects. It's like giving the air an escape.
Route so it doesn't get trapped and cause trouble. Makes sense. Any other design oversights that'll come back to bite you.
Forgetting about draft angles. Classic rookie mistake. And sometimes designers get so caught up in the shape, they don't think about how the heck the part's gonna come out of the mold.
They designed this intricate masterpiece, but then it's like, oops, can't actually make this.
Exactly. That's why you gotta have those designers and engineers talking. You need that creative vision, but also the practical. Know how.
Otherwise, you end up with a beautiful. That's a nightmare to manufacture. So it's a balancing act. Form and function.
Well said. Now, speaking of beauty, I bet you didn't realize you could learn to appreciate everyday objects in a whole new way just by knowing a bit about core and cavity design.
Oh, like I can look at a plastic bottle and tell how it was made.
Well, maybe not everything. But you can spot some clues. Like the palting line. That's the line where the two halves of the mold meets. And ejector pin marks. Those little circles from the pins that push the part out.
So it's like I'm a detective looking for fingerprints.
Exactly. And sometimes you can even tell how well a part was cooled. If you see sink marks or warping, that's a red flag.
Okay, so it's like a secret language I'm learning to read the hidden stories of these everyday objects. That's pretty cool.
It is. And it can actually help you make better design choices if you ever create your own molded parts.
Right, because you know what to watch out for.
Exactly. You're thinking about manufacturability from day one. How is this design going to translate into a real 3D object? That's the key.
Mind blown. Okay, I'm seeing a note here about shrinkage. What's that all about? Shrinkage. Like my clothes in the dryer.
Kind of think about baking cookies. They puff up in the oven, but when they cool, they shrink a bit.
Right, Right. But plastic's not dough, so what's the big deal here?
It all comes back to those different cooling rates. Remember, the core cools slower.
Yeah, like that cast iron pan analogy.
Exactly. So the core and the cavity, they might shrink at different rates.
Yeah.
And that can make the part warp or, you know, not be the exact size it should be.
Ah. So it's not just that the plastic shrinks, it's that it might shrink unevenly. And that's bad.
Very bad. A warped bottle cap, a phone case that doesn't quite fit. Nobody wants that.
Okay, so mold designers, they got to be thinking about this shrinkage thing.
Absolutely. They have to know how different plastics shrink. And sometimes they actually adjust the size of the core and cavity.
Like to trick it into shrinking the right way.
Exactly. They build in little wiggle room, so to speak, to compensate for that shrinkage.
Clever. So picking the right plastic probably helps too, right?
Big time. Some plastics are notorious shrinkers. Nylon, for example. Others like polycarbonate. They're much more stable.
So if you need a super precise part, you'd steer clear of those shrink happy plastics.
Probably a good idea. But there's always a trade off. Maybe that high shrinkage plastic is super strong or flexible, so it might be worth the extra hassle.
It's all about finding that sweet spot, the right material for the job, even if it means a little more work. Okay, this is amazing. We started with like, what, core and cavity, two sides of a mold. And now we're talking about shrinkage, cooling rates, material property.
It's a whole rabbit hole, isn't it? But that's the beauty of it. Once you start looking, you see these hidden details everywhere.
It's like learning a secret language. The language of plastic. Yeah, I'm going to look at all these everyday objects so differently now. So to wrap things up, I think the big takeaway here is that. What is the big takeaway?
I think it's about understanding the process, seeing the thought, the precision that goes into making even the simplest things.
Yeah, I'm totally with you. It's like we use these plastic objects every day, but we never really think about how they're made.
Exactly. And now, hopefully, our listeners will have a little peek behind the curtain. Appreciate the engineering, the design, the whole intricate dance of core and cavity.
And hey, maybe this deep dive will inspire someone to go design their own amazing plastic Wajama Cali. So there you have it. That's our deep dive into the world of injection molding. Thanks for joining us. We'll be back soon with another fascinating exploration. See you
