All right, so get ready. Cause today we're diving into a world that's honestly more interesting than it might sound at first.
Yeah.
Injection molding, Shrinkage.
It doesn't exactly sound exciting.
I know, right? Shrinkage. It doesn't exactly scream excitement, but trust me on this one, it's fascinating. This stuff is fascinating. And you know what else is?
Maybe facts.
Yeah. It impacts a ton of everyday objects.
A ton of everyday objects. Probably haven't even considered it.
That's right. We're talking everything from those little LEGO bricks you might have stepped on to the sleek casing of your smartphone.
Oh, yeah.
Understanding this seemingly simple concept of shrinkage is actually key to creating precise and functional products.
Precisely. Exactly. And today we're going to take you from, you know, shrinkage. What's that? To. Oh, that's why my water bottle is shaped that way.
That's a good way to put it.
Yeah. And we're using a blend of technical explanations and some real world stories. You know, the kind that make you go, wait, seriously?
Absolutely. All right, you ready to unlock the secrets behind the plastic stuff we use every day?
Let's do it.
Okay.
Let's start with the basics. Imagine you're baking a cake.
Okay.
As it cools down.
Yeah.
It shrinks a little. Right. That's essentially what happens with plastic after it's injected into a mold and hardens. The difference in size between the mold and the final cooled part.
Right.
That's what we call shrinkage.
Okay, that makes sense. I'm guessing it's not as simple as just measuring that difference though, right?
You got it. There's actually a formula for calculating shrinkage.
Okay.

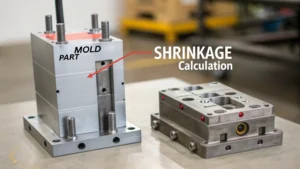

Shrinkage equals mold dimension minus part dimension divided by mold dimension.
Gotcha.
And while that might seem straightforward, the tricky part is that shrinkage isn't a one size fits all phenomenon.
Right.
Because there's a whole web of factors that can influence it.
So it's like a recipe where even the tiniest changes in the ingredients or baking time can totally change how your cake turns out.
Absolutely.
Okay, so what are the main culprits in this shrinkage recipe?
We can break those culprits down into three main categories. The type of material you're using, the design of the mold itself, and the specific conditions during the injection molding process.
Okay.
Each one plays a critical role in determining the final dimensions of your part.
Okay, so material, mold, and process. Got it.
You got it.
Let's break those down one by one.
Sounds good.
Starting with material. I know from experience that not all plastics Are created equal.
That's for sure.
I remember this one time, I was working on a project, and we switched from one type of plastic to another midway through, and bam. The shrinkage was totally different.
Yeah, that's a common pitfall, really. Different plastics have different molecular structures, and those structures dictate how they behave during cooling. Crystalline polymers like polyethylene, which is often used for those flimsy plastic bags, Tend to have a higher shrinkage rate.
Okay.
On the other hand, amorphous polymers like polycarbonate, which you find in those sturdy phone cases, Shrink much less.
Aha. So that's why my phone case feels so much more solid Than a flimsy takeout container. It's all about the type of plastic.
It all comes down to the material.
So material choice is the first ingredient in our shrinkage recipe. But what about the mold itself? I was reading that uneven wall thickness can cause some serious problems. Is it really as simple as, like, a lopsided cake?
That's a great way to visualize it. Uneven wall thickness leads to uneven cooling. And as we've already established, Uneven cooling means uneven shrinkage. That can cause warping, twisting, and all sorts of headaches. That's why uniformity in mold design is crucial.
So when it comes to mold design, we're aiming for consistency and balance. Are there any specific design tricks that can help prevent those lopsided cake scenarios?
Two key design elements that can significantly impact shrinkage are ensuring uniform wall thickness throughout the part and strategically placing the cooling system within the mold cooling systems.
So we're not just letting the plastic cool naturally, we're actively controlling the temperature.
Exactly. Think of it like a network of channels within the mold where coolant flows, Drawing heat away from the plastic as it solidifies.
Interesting.
This helps to ensure that the cooling process is as even as possible, which, in turn helps to minimize those unwanted variations in shrinkage.
Okay, that makes a lot of sense. So we've got the material in the mold itself, but you mentioned a third factor. Those processing conditions. What exactly do we mean by processing conditions, and how do they fit into this puzzle?
Processing conditions refer to all those variables that come into play during the actual injection molding process. Okay. Things like injection speed, pressure, and temperature. Think of them like the dials and knobs on a sophisticated machine.
Right.
Even slight adjustments to these settings can have a ripple effect on shrinkage.
Interesting. So it's not just about the mold itself. It's also about how we use it. I read that increasing injection speed Is like compressing a spring. More Quickly. But I'm guessing it's not as simple as faster is always better. Right?
You're right to be cautious there. While higher injection speed might seem like a good way to get the job done quickly, it can actually create problems.
Oh, really?
If the plastic is injected too quickly, it might not fill the mold completely, leading to gaps or voids in the final part. It can also cause the plastic to cool unevenly, leading to, you guessed it, uneven shrinkage.
Mm, I see. So finding the right injection speed is a balancing act.
Yeah.
Too fast, and you risk incomplete filling and uneven cooling. Too slow. And what happens then?
If the injection speed is too slow, the plastic might start to cool and solidify before it has a chance to reach all the nooks and crannies of the mold. This can also lead to incomplete filling and potentially even warping as different sections of the part cool and shrink at different rates.
Okay, so we need to find that sweet spot, that gold Goldilocks zone for injection speed. What about pressure? Does higher pressure always lead to less shrinkage?
Generally speaking, yes. Higher pressure during the injection process forces more material into the mold cavity, leaving less room for the plastic to shrink as it cools. This is especially important when working with materials that have a high shrinkage rate. But, of course, there's a trade off.
I was just thinking that there's always a catch, isn't there? What's the downside of cranking up the pressure?
Too much pressure can put a lot of stress on the mold itself, potentially leading to damage or even breakage. Oh, wow. It can also cause defects in the part, like flash or sink marks. Yeah. So like injection speed, finding the optimal pressure involves careful consideration of both the material and the mold design. It's about achieving a balance between minimizing shrinkage and avoiding these potential problems.
Got it. So it's a delicate dance of finding the right balance for both speed and pressure. What about the third factor you mentioned? Temperature. How does that tie into the whole shrinkage equation?
Temperature is crucial because it affects the viscosity of the plastic. Think of it like this. At higher temperatures, the plastic is more fluid, almost like water. At lower temperatures, it becomes thicker and more viscous, like honey.
Okay.
This viscosity directly impacts how the plastic flows into the mold and how it cools and solidifies.
Okay, that makes sense. So if the temperature is too high, the plastic might be too runny.
Exactly.
Leading to problems like flashing or uneven filling. And if it's too low, it might not flow properly into the mold at all.
Yeah, got it. It's all about finding that sweet spot where the plastic is fluid enough to fill the mold completely and evenly, but not so hot that it causes other problems.
Right.
And of course, we also need to consider the cooling rate. If the plastic cools too quickly, we risk those dreaded uneven shrinkage issues.
So temperature plays a role not only during the injection process itself, but also during the cooling phase. This is all starting to feel a bit overwhelming. There are so many variables to consider. Is there any way to predict and control all of this with some level of precision?
Fortunately, there is. That's where Computer Aided Engineering, or cae, comes in. CAE tools allow engineers to simulate the entire injection molding process virtually taking into account all these factors. Material properties, mold design, injection speed, pressure, temperature, cooling rates, and more.
Whoa. So it's like having a crystal ball for injection molding?
Pretty much.
You can actually see how tweaking those dials and knobs will impact the final product before you even make it.
Precisely. These simulations can help engineers visualize things like stress points within the part, predict potential warping, and even optimize the placement and design of cooling channels.
That's. That sounds incredibly powerful. So CAE tools can help us avoid those oops moments and ensure that our parts come out exactly as intended. That's the goal. But let's face it, even with the best simulations, mistakes can still happen. We've got some great real world stories about those oops moments, right?
Absolutely. Everyone makes mistakes. It's part of the learning process. But by sharing these experiences, we can help others avoid those same pitfalls. One common mistake is underestimating the impact of material differences.
I remember you telling me a story about a project where you switched from working with metals to plastics and made some assumptions about shrinkage that, well, didn't quite work out as planned. What happened there?
It was a classic case of wrong assumptions lead to wrong results. I spent years working with metals, and I just sort of assumed that plastics would behave in a similar way. I didn't fully account for the fact that polymers have very different thermal properties than metals.
Right.
Which means they shrink differently during cooling.
Makes sense.
The result? Parts that were warped and didn't fit together properly.
Oh, no.
It was a costly lesson, but it taught me the importance of really understanding the unique characteristics of each material.
So it's a reminder that we can't rely on our past experiences alone. We need to constantly be learning and adapting to the specific challenges of each material and process.
Absolutely.
You also mentioned environmental factors playing a role, didn't you? Have a story about a sauna warehouse.
Oh, yes, that was a memorable one. We were working on a project where the parts were being molded in a warehouse that wasn't properly climate controlled.
Oh, really?
Temperature and humidity fluctuated wildly, and we hadn't factored that into our calculations.
So what happened? Did the parts end up shrinking more or less than expected?
It was actually a combination of both, which was even more confusing.
Oh, wow.
Some parts shrank more than we anticipated, while others shrank less.
Oh, man.
It created a real headache when it came to assembly. That experience taught me the importance of considering not just the material and the mold, but also the environment where the molding process takes place. If you can't control the environment, you need to at least factor those variables into your design and process parameters.
It's like those baking shows where they say altitude matters.
Exactly.
You might have the perfect recipe, but if your oven's at a different elevation, everything changes.
It's true.
Speaking of things that can change, you also mentioned process variations as a potential source of mistakes. How can something as seemingly small as a tweak in injection speed snowball into a bigger problem?
Even seemingly minor adjustments to things like injection speed, pressure, or temperature can have a cumulative effect on shrinkage. And if those adjustments aren't properly documented, it can be incredibly difficult to track down the source of any problems that arise. It's like a chain reaction where one small change can trigger a cascade of unintended consequences. That's why meticulous record keeping is so crucial. By carefully tracking each variable and adjustment, you can create a sort of roadmap for your process and more easily identify the root cause of any deviations.
It's like being a detective for your own manufacturing process. Now, so far, we've talked a lot about reacting to shrinkage, how to minimize it, how to avoid mistakes. But I'm curious about the proactive side of things. What about optimizing the mold design itself to account for shrinkage right from the start?
That's a great point. And it all circles back to those three key factors we discussed earlier. Material choice, processing conditions, and mold design. When it comes to material choice, you can actually think of it like choosing from a menu of options, each with its own shrinkage rating.
A shrinkage rating. So I can literally look up a chart that tells me how much a particular type of plastic is likely to shrink?
Exactly. There are comprehensive material databases that provide detailed information about the properties of different plastics, including their shrinkage rates. By carefully selecting the right material for your application, you can minimize Shrinkage right from the start.
Okay, that makes a lot of sense. And then there are those processing conditions which we've already talked about in detail. Finding that sweet spot for injection speed, pressure, and temperature can make a huge difference. I especially like that suit case analogy for packing pressure. Getting everything just snug enough to minimize empty space.
Right.
But when it comes to mold design itself, what are some of the key considerations for minimizing shrinkage?
One critical aspect is gate design. The gate is the entry point for the molten plastic into the mold cavity, and its size and location can significantly impact how the material flows and cools.
So when it comes to gate size matters, I never would have thought about that.
It absolutely does. A larger gate allows for a smoother, more even flow of plastic into the mold, which helps to minimize the risk of uneven cooling and shrinkage. The location of the gate is also important. Ideally, you want to position it in a way that promotes balanced filling of the mold cavity, avoiding any areas where the plastic might pool or cool too quickly.
So it's all about strategic placement and finding that Goldilocks size. What about those cooling channels we talked about earlier? Is there anything specific about their design that can help minimize shrinkage?
Absolutely. The design and placement of cooling channels play a crucial role in ensuring even heat dissipation throughout the mold. You want to create a network of channels that effectively draws heat away from the plastic as it cools, preventing any hot spots or areas where the material might cool too quickly. All sorts of sophisticated designs and configurations for cooling channels, depending on the complexity of the mold and the material being used.
It sounds like there's a whole science to designing these cooling systems. It's amazing to think about all the intricate details that go into something as seemingly simple as a plastic mold. But even with all these strategies in place, I imagine there's still room for surprises. That's where those advanced techniques like CAE simulation and prototyping come in, right?
Precisely. CAE simulation, as we discussed earlier, allows engineers to virtually test different designs and processing conditions before any physical production takes place.
Right.
An incredibly powerful tool for predicting and minimizing shrinkage. And then there's prototyping, which allows us to test those simulations in the real world and make any necessary adjustments based on actual results.
It's like a two pronged approach.
Exactly.
Virtual testing with CAE and then real world validation with prototypes. Yep, that seems like a pretty robust way to minimize those shrinkage surprises.
But wait, we can't forget about those software tools.
Oh, yeah.
That are specifically designed to Predict shrinkage.
Those are becoming increasingly popular and sophisticated.
Really?
There are several software programs out there like Autodesk, Moldflow, Siemens NX and SolidWorks Plastics that use complex algorithms to predict shrinkage based on various factors, including material properties, mold design, and processing parameters.
So these tools are like a secret weapon for injection molders.
They can be very helpful.
They can actually tell you how much a part is likely to shrink before you even start the process. They can give you a very good estimate, which can be incredibly valuable for avoiding costly mistakes and rework. Right. Of course, they're not perfect, and you still need to rely on your experience and judgment, but they can definitely help to streamline the design process and reduce the risk of shrinkage related problems.
It's amazing to think about how technology is transforming the world of injection molding. It's like we have all these tools at our disposal to make the process more precise, efficient, and predictable. But beyond all the technical details, I think there's something really cool about understanding injection molding shrinkage. It's like you start to see the world differently.
I completely agree. Once you understand the principles of shrinkage, you start to notice it everywhere.
Yeah.
You pick up a plastic object and you can't help but think about how it was made, how the mold was designed, and how the material behaved during cooling.
Right.
It's like you've unlocked the secret code.
It's like becoming a shrinkage detective.
Yeah.
You start to see those subtle variations in thickness, those carefully placed ribs and supports, and you realize that they're not just random design choices. They're all there for a reason, Often to counteract the effects of shrinkage.
That's exactly it. And it really highlights the ingenuity and precision that goes into creating even the most mundane plastic objects.
So to recap our deep dive into injection molding shrinkage, we've covered a lot of ground today.
We have.
We started with the basics. Defining what shrinkage is and exploring those three key factors that influence it. Material choice, mold design, and processing conditions.
Right.
We then delved into some common mistakes, sharing real world stories about how even experienced engineers can fall into those traps. We talked about the importance of understanding material properties, accounting for environmental factors, and meticulously documenting process variations alconnect. And of course, we couldn't resist geeking out a bit on those advanced techniques and tools like CAE simulation shrinkage prediction software, and the art of mold design optimization. But beyond the technical details, we also touched on something more profound. The ability to see the world through a new lens. Recognizing the hidden hand of engineering and the objects that surround us.
I like that.
So here's a final thought provoking question for our listeners. What everyday object can you now look at differently? Armed with this newfound knowledge of injection.
Molding shrinkage, go explore the world around you. Examine those plastic objects and see if you can decipher the secrets of their creation.
And if you're really eager to see these concepts come to life, I encourage you to search for videos of injection molding in action. It's mesmerizing to watch molten plastic transform into intricate shapes right before your eyes. That's all for today's deep dive. But the exploration doesn't end here. Keep questioning, keep learning, and keep shrinking those knowledge
