Welcome back, everybody, for another deep dive. And today we're going to take a look at something that might seem a little. A little niche at first.
Yeah.
But trust me.
Oh, it is.
It's way more interesting than it sounds. Injection mold, parting surfaces.
Oh, yeah.
We've got a stack of sources here.
Yeah.
Articles, diagrams, even some patent filings, all about those seemingly simple lines where the two halves of a mold come together.
It's one of those things you probably never think about, but it's absolutely crucial for making all sorts of plastic products, from the everyday stuff to high tech components.
Exactly. And what's fascinating is that this one design element, the parting surface, impacts everything from how a product looks.
Oh, yeah.
And feels. To the complexity of the manufacturing process.
Absolutely. And it's this constant balancing act for designers. They have to consider the product's shape, the desired appearance, the properties of the plastic being used, and how the mold itself will be made and assembled.
Okay. So let's unpack this. Our sources really emphasize how the shape of the product is the driving force behind parting surface design.
It dictates so much. Think about just a simple water bottle. Yeah. Straight parting line around the middle works perfectly.
Right.
But then what happens when you add a handle?
Right.
Suddenly that simple line becomes a design puzzle.
Yeah. Because you can't just pull a mold apart with a handle sticking out.
Right.
It'd be like trying to get a gingerbread man out of a cookie cutter without breaking off his arm.
Exactly. That's where things like side core pulling mechan come in.
Oh, wow.
These are essentially moving parts within the hold that allow undercuts and complex shapes to be released cleanly.
Yeah.
Imagine tiny robotic arms within the mold gently pulling away to free the part.
So it's not just a line on a mold that can involve all these hidden mechanisms working in sync.
Right.
I'm already starting to see how complex this gets.
And we're just scratching the surface.
Right.
Things get even more intricate when you start factoring in the desired appearance of the product.
Right. Because nobody wants a big, ugly parting line ruining the look of their sleek new phone case.
Exactly. For products where aesthetics are paramount.
Right.
Designers go to great lengths to hide or minimize the parting line.
Yeah.
They'll try to place it in a natural crease or a less visible area.
Yeah.
But the real challenge is dealing with those pesky imperfections.
Oh, yeah.
That can form along the parting surface.
Like what? Fill us in on the enemies of a flawless finish.
One major culprit is flash.
Okay.
That's excess material that Squeezes out at the parting line like an unwanted seam.
I see.
It can be quite noticeable and often requires additional processing to remove.
Gotcha.
Then there are weld lines, faint lines that form where the molten plastic meets as the mold fills.
Okay.
They're often visible, especially on transparent objects, because they disrupt the way light passes through the material.
I bet. Transparent materials are a nightmare for mold designers.
Oh, yeah.
Every tiny flaw would be magnified.
You're absolutely right. It's like trying to build a house of cards in a windstorm.
Right.
Any imperfection can compromise the whole structure.
Wow.
That's why designers often use special gates for transparent materials.
I see.
These are carefully positioned openings where the plastic is injected into the mold by controlling the flow and pressure.
Right.
They can minimize those weld lines and improve clarity.
So it's like a delicate dance, directing the plastic to flow in the most aesthetically pleasing way.
It is.
But wouldn't that make the design process even more complex? I mean, we're already dealing with moving parts, hidden mechanisms, strategic placement of lines.
It definitely adds another layer of complexity.
Right.
But that's where the real ingenuity of mold design comes in. It's about finding that sweet spot where functionality, appearance, and manufacturability all come together.
Right. That makes sense. So we've talked about how the shape and appearance of a product drive a lot of the decisions around parting surfaces. But I'm curious, how does all this play into actually making the mold itself? I imagine it can get pretty challenging to manufacture some of these intricate designs.
You're absolutely right.
Yeah.
Choosing the right parting surface design, it's not just about aesthetics. It also has a huge impact on the manufacturing process. Simpler is almost always better from a manufacturing standpoint.
I guess that means those nice flat surfaces we talked about earlier are the easiest to work with.
Precisely.
Yeah.

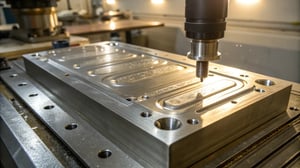

Plain surfaces are ideal because they can be machine using standard milling techniques.
Right.
It's straightforward, efficient, and generally less expensive.
Okay, so less expensive.
Yeah.
But what about those curved parting surfaces we see on products with more organic shapes?
Yeah.
I'm guessing those require a bit more finesse.
They certainly do.
Yeah.
Creating those complex curves requires specialized equipment and techniques.
Okay.
One common method is electrical discharge machining, or edm.
Okay. So instead of physically cutting the metal, EDM uses electrical sparks to erode it away. Right?
Exactly. Imagine it like tiny lightning bolts, carving out the shape of the mold with incredible precision.
Wow.
It's amazing for creating intricate details and complex curves.
Yeah.
But it also adds time and cost to the manufacturing process, so it's a trade off.
You gain design flexibility, but you pay for it in manufacturing complexity.
That's the constant balancing act of mold design.
I see.
And it's not just about shaping the mold halves. It's also about how those halves will be assembled and how the mold will function during the injection process.
Speaking of assembly, how do they make sure those two halves come together perfectly every time?
Yeah.
Especially with all these intricate details and moving parts. I'd imagine even a tiny misalignment could throw everything off.
That's where locating pins come in.
Okay.
These are precisely placed pins that guide the mold halves into perfect alignment, ensuring a consistent and accurate closure every cycle. It's like a fail safe mechanism built right into the mold.
It's fascinating how those small details play such a crucial role in the overall process. So we've covered shape appearance and now manufacturability.
Yeah.
What about the actual injection process itself? How does that influence parting surface design?
That's where things get really dynamic.
Okay.
We have to consider how that molten plastic is going to flow through the mold.
Right.
How it will cool and solidify and how we're going to get the finished part out without damaging it.
Okay. So paint me a picture.
Yeah.
What happening inside that mold as the plastic is injected.
Imagine molten plastic flowing like a river through the channels of the mold.
Okay. Like a river.
We have to make sure it reaches every nook and cranny of the cavity.
Yeah.
Filling it completely and evenly.
Okay.
And just like a river needs to flow smoothly without getting dammed up.
Right.
The molten plastic needs a clear path without any obstructions.
So the parting surface can act as a sort of guide for the plastic flow.
Exactly. The placement and shape of the parting line can influence how the plastic flows.
I see.
And we have to be mindful of creating any areas where the plastic might get trapped.
Right.
Or cool unevenly.
What about those undercuts and complex shapes we talked about earlier?
Yeah.
Aren't those potential trouble spots for the flowing plastic?
Absolutely. Think about it like this.
Okay.
If you have a narrow channel.
Okay.
And the plastic starts to cool and solidify before it reaches the end.
Right.
You'll end up with a short shot.
Right.
Meaning the mold isn't completely filled.
Yeah.
That's a big no no in injection molding.
So how do they prevent that from happening, especially with complex designs?
There are a few strategies. Yeah. One is to use multiple gates, essentially creating multiple entry points for the plastic to flow into the mold.
Okay. So multiple gates.
That helps distribute the flow more evenly and reduces the risk of short shots.
It's like creating multiple tributaries to feed that river of plastic.
Exactly.
Making sure it reaches its destination.
Another technique is called hot runner molding. Instead of injecting the plastic directly from the machine into the mold cavity.
Yeah.
It passes through a heated manifold system.
Right.
That keeps it at a consistent temperature and improves flow.
So it's like preheating the oven before baking a cake.
That's a great analogy.
Ensuring that everything cooks evenly.
And just like a cake needs to release any trapped air bubbles.
Nice.
The molten plastic needs a way to vent out any trapped air or gases that could cause defects in the finished part.
That's where those tiny vent channels come in again. Right. Creating those escape routes for the air.
Yes. Venting is crucial for ensuring a high quality finished product.
Right.
It's another aspect that's often carefully integrated into the parting surface design itself.
I see.
By subtly adjusting the way the two mold halves meet, you can create those tiny pathways for the air to escape.
It's amazing how much thought goes into something as seemingly simple as a line on a mold. But from what you've described, it's really the control center for the whole injection molding process.
That's a great way to put it.
Yeah.
And as you can imagine, there are always new challenges that push designers to get even more creative with their parting surface designs.
Okay, spill the beans.
Yeah.
What are some of those tricky situations that really test their ingenuity? So give us some real world examples of problems and how engineers solve them.
Well, let's imagine we're designing a mold for a thin walled part. Something like a smartphone case.
Okay.
One of the biggest challenges there is getting that molten plastic to flow evenly through those narrow channels without cooling and solidifying too quickly.
Because if it cools too fast, you end up with those incomplete fillings. The short shots.
Exactly. So how do you combat that?
Yeah, how do you?
One strategy is to use multiple gates along the parting line. Instead of forcing all that plastic through one small opening, you create multiple entry points.
Right.
Distribute the flow. Give it a better chance to reach all those nooks and crannies before it sets.
That makes sense. It's like having multiple entrances to a concert venue. You avoid bottlenecks, and everybody gets in faster.
That's a great analogy. And sometimes even multiple gates aren't enough.
Really?
That's when designers might turn to hot runner systems.
Okay.
Instead of injecting the plastic straight into the mold, it flows through a heated manifold first.
Right.
Keeps it at a consistent temperature, improves its flow Characteristics.
So it's like a preheating system for the plastic. Kind of like those heated pipes they use to prevent water from freezing in cold climates.
Precisely. It's all about maintaining that ideal temperature and viscosity for optimal flow. And speaking of tricky shapes, another challenge comes from sharp corners and intricate details on the product.
I can see how those would be a headache.
Yeah.
Sharp corners could easily get damaged or distorted during demolding, and those fine details might not get filled in properly.
Absolutely. That's where techniques like core pulling come into play.
Okay.
You essentially create a separate piece within the mold called a core, that forms that intricate detail. Once the part has cooled, the core is pulled away, leaving the detail perfectly intact.
It's like a mini mold within the main mold dedicated to capturing that specific feature. That's incredibly clever.
And for really complex shapes or high volume production runs, designers might use multi cavity molds.
Okay.
Instead of making one big mold cavity, they create multiple smaller cavities that are all filled at the same time.
So it's like baking a tray of mini muffins instead of one large cake.
Yeah.
You get more output in a single cycle.
Exactly. But with multi cavity molds, the parting surface design becomes even more crucial.
Right.
Each cavity needs its own gate and venting system.
Oh, wow.
And everything has to be perfectly aligned to avoid leaks or mismatches.
It sounds like a symphony of precision engineering, orchestrating the flow of plastic across multiple cavities simultaneously.
That's a great way to picture it. And to take that analogy even further, there's a technique called stack molding, where multiple molds are literally stacked on top of each other like levels in a building.
Wow. So you're essentially creating a high rise injection molding factory, maximizing output in a limited space.
Exactly. Stack molding is a great way to boost production volume.
Right.
But again, it requires an even more intricate parting surface design to ensure everything lines up perfectly and functions flawlessly.
This is all so fascinating.
Yeah.
I had no idea there was so much ingenuity and problem solving packed into those seemingly simple lines on a mold.
It's a hidden world of engineering and design, but it has a huge impact on the products we use every day.
Well, I think we've successfully navigated the intricate world of injection mold parting surfaces today.
Yeah.
We've explored the factors that influence their design, the challenges they present, and the clever solutions that engineers have developed.
Absolutely.
And hopefully we've given you a newfound appreciation for the complexity and ingenuity that goes into those seemingly simple parting lines.
So next time you pick up a plastic product, take a moment to appreciate the journey it took from molten plastic to finished form. And remember the unsung hero of that journey, the parting surface.
And on that note, we'll leave you with something to ponder. As manufacturing technology continues to evolve, what new innovations will shape the future of parting surface design? What challenges and solutions will emerge as we push the boundaries of what's possible with injection molding?
Until next time, keep exploring deep
