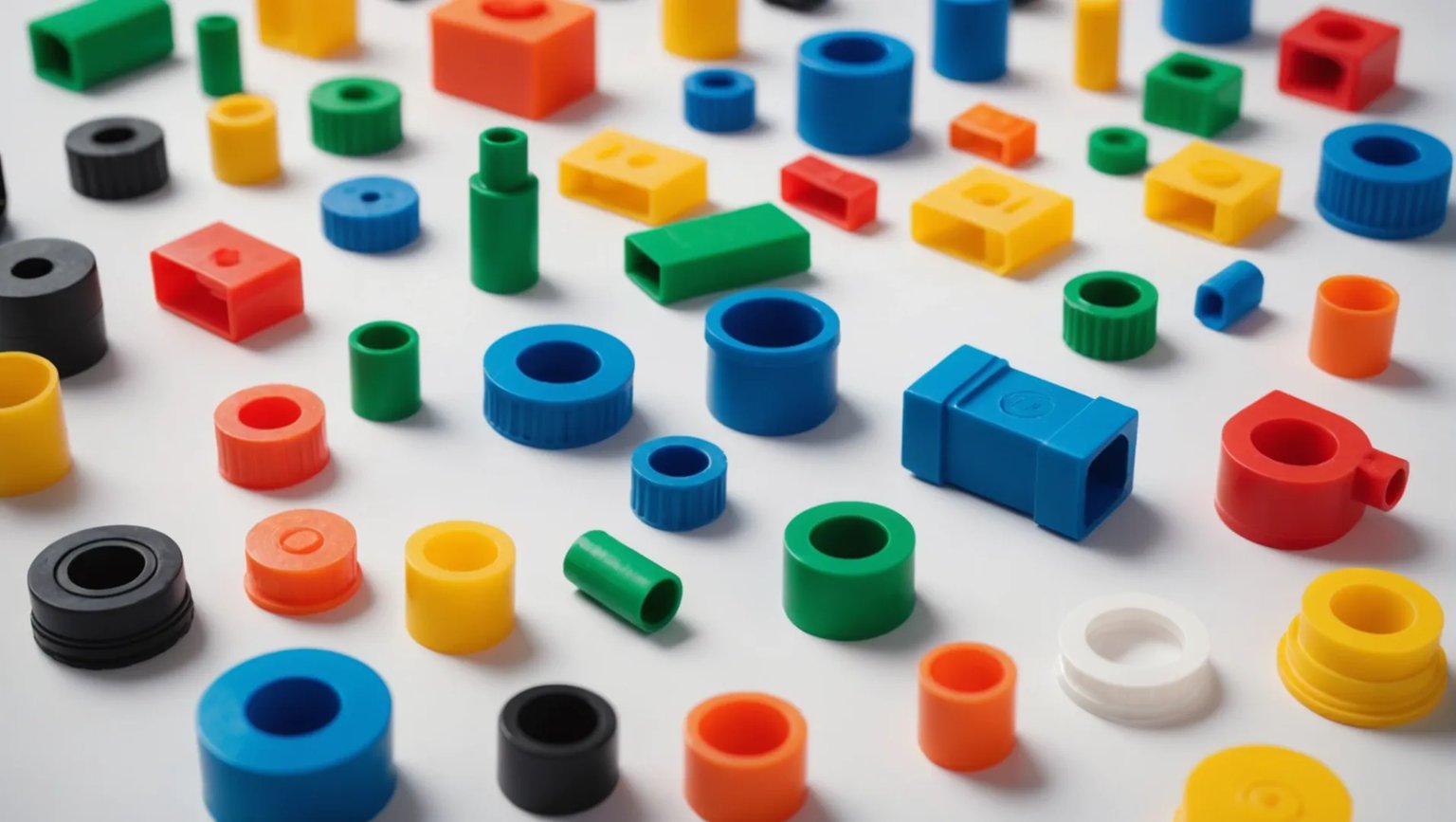

What Causes Color Variations in Injection Molded Parts?

Color consistency isn’t just about looks; it’s essential for functionality too!

Color variations in injection molded parts are often caused by unstable pigment quality, raw material base color differences, contamination, uneven process temperatures, pressure inconsistencies, mold issues, and environmental factors. Addressing these can significantly improve color uniformity.

Let’s dive deeper into each factor so you can arm yourself with effective strategies to tackle color discrepancies.

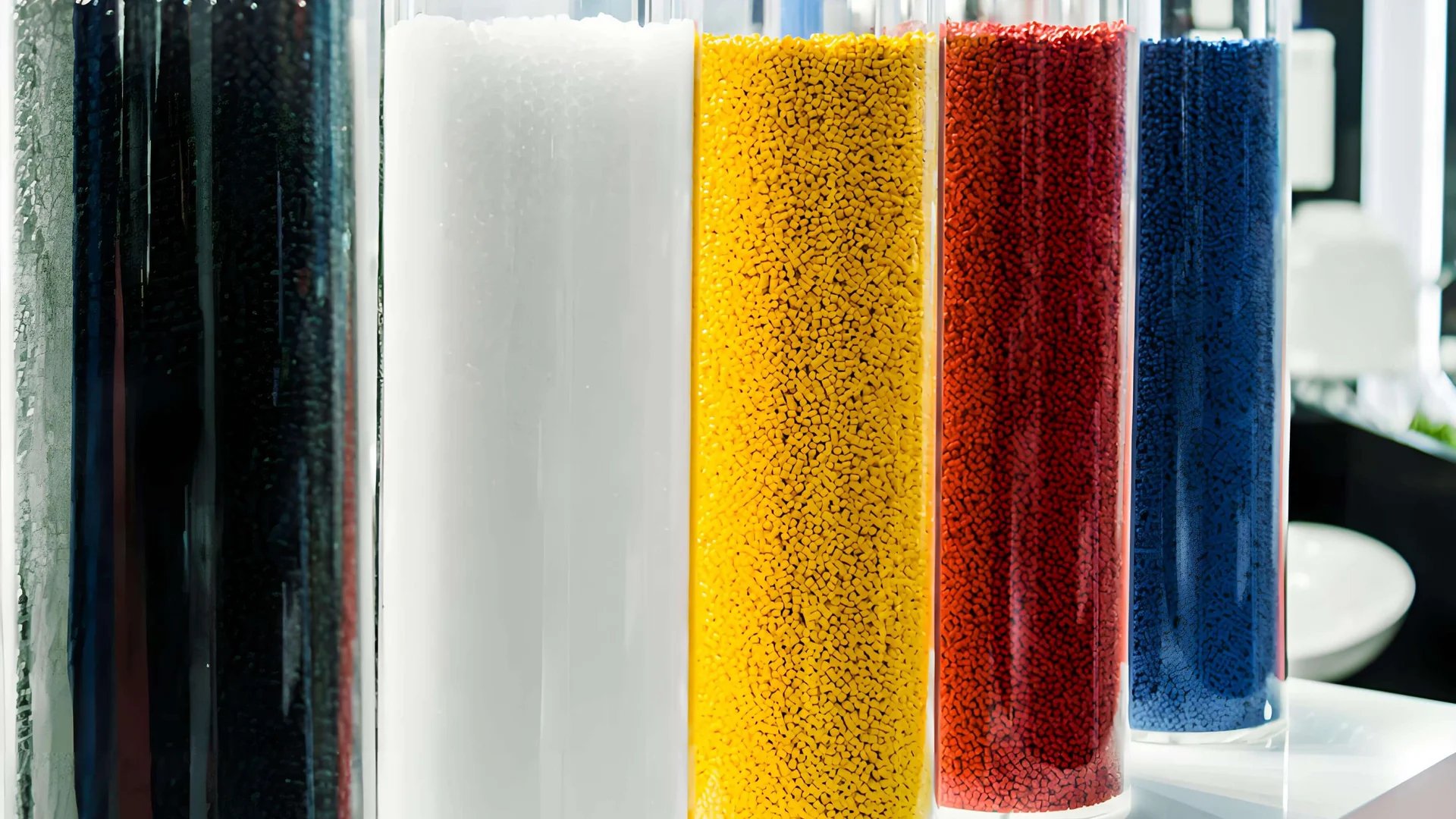

How Do Raw Materials Affect Color in Injection Molding?

Raw materials play a pivotal role in the color outcome of injection molded parts, impacting hue and consistency.

The color in injection molding can be affected by unstable pigment quality, base color differences, and raw material contamination. Ensuring stable pigment batches, choosing consistent material sources, and preventing contamination are crucial for achieving uniform color in molded parts.

Unstable Pigment Quality

The quality of pigments used in injection molding is paramount to color consistency. Variations in hue, saturation, or brightness across different pigment batches can lead to significant color discrepancies. This is often due to inadequate quality control measures during pigment production. To mitigate this, it is essential to select pigment suppliers known for their reliability and demand comprehensive quality assurance for each batch.

One effective strategy is conducting thorough quality inspections upon purchasing pigments to ensure they meet specified standards. By doing so, manufacturers can reduce the risk of color variations arising from pigment instability.

Base Color Differences in Raw Materials

Even plastics of the same brand can exhibit differences in their base colors due to variations in production processes or raw material sources. These base color differences can manifest as visible color variations once the parts are molded. This issue can be addressed by opting for raw materials from the same batch whenever possible, which reduces the chances of encountering inconsistencies.

Another solution is premixing the raw materials to achieve a more uniform base color before processing. This approach not only improves consistency but also enhances the predictability of the final product’s color.

Raw Material Contamination

Contamination of raw materials during storage, transportation, or processing can introduce unwanted color variations. This contamination could result from foreign particles, dust, or different colored impurities mixing with the plastic.

To prevent this, manufacturers should implement stringent storage and handling protocols to protect raw materials from contaminants. Additionally, thorough cleaning and impurity removal should be conducted before processing the materials.

By understanding and controlling these raw material factors, manufacturers can significantly enhance the color uniformity of their injection molded products. Exploring more about raw material quality control¹ can provide deeper insights into advanced techniques for managing these challenges.

What Process Parameters Influence Color Consistency?

Achieving consistent color in injection molded parts requires precise control over several process parameters.

Key process parameters affecting color consistency in injection molding include temperature, pressure, injection speed, and back pressure settings. Proper management of these variables ensures uniform color by maintaining stable material flow and preventing defects during production.

The Role of Temperature Control

Temperature is a critical parameter in injection molding, significantly influencing the color of the final product. Different stages of the process, including barrel, nozzle, and mold temperatures, must be managed to prevent color discrepancies.

Uneven Temperature Effects:

• Variations in barrel temperature² can cause inconsistencies during plastic melting, leading to color variations. Ensuring uniform temperature helps maintain consistent material properties.

• Solution: Implementing multi-stage temperature control allows for precise adjustments at each phase, tailoring the process to specific material and part requirements.

Pressure Stability for Uniformity

Pressure during the injection process is equally important. Injection pressure and holding pressure directly affect how the material fills the mold and solidifies.

Unstable Pressure Implications:

• Inconsistent pressures can lead to uneven material density and color variations. Stable pressure maintains a uniform flow rate and prevents discoloration.

• Solution: Employ closed-loop pressure control systems to maintain stability and regularly inspect hydraulic systems for optimal performance.

Balancing Injection Speed

Injection speed affects how the molten plastic fills the mold cavity. Both overly fast and slow speeds can introduce color differences.

Speed Considerations:

• A fast injection speed may cause turbulence, leading to uneven color distribution. Conversely, slow speeds can result in thermal degradation, altering color.

• Solution: Adjust speed based on part thickness—opt for faster speeds for thin parts and slower for thicker components.

Optimizing Back Pressure Settings

Back pressure impacts plasticization and color consistency during the molding process.

Back Pressure Challenges:

• Incorrect back pressure settings lead to poor plasticization, causing uneven color distribution.

• Solution: Set back pressure according to material type and part requirements. Observing plasticization quality can guide optimal adjustments.

In essence, meticulous control over temperature, pressure, speed, and back pressure can mitigate color issues, ensuring high-quality, consistent injection molded parts. Understanding these parameters allows manufacturers to preemptively address potential color inconsistencies before they manifest.

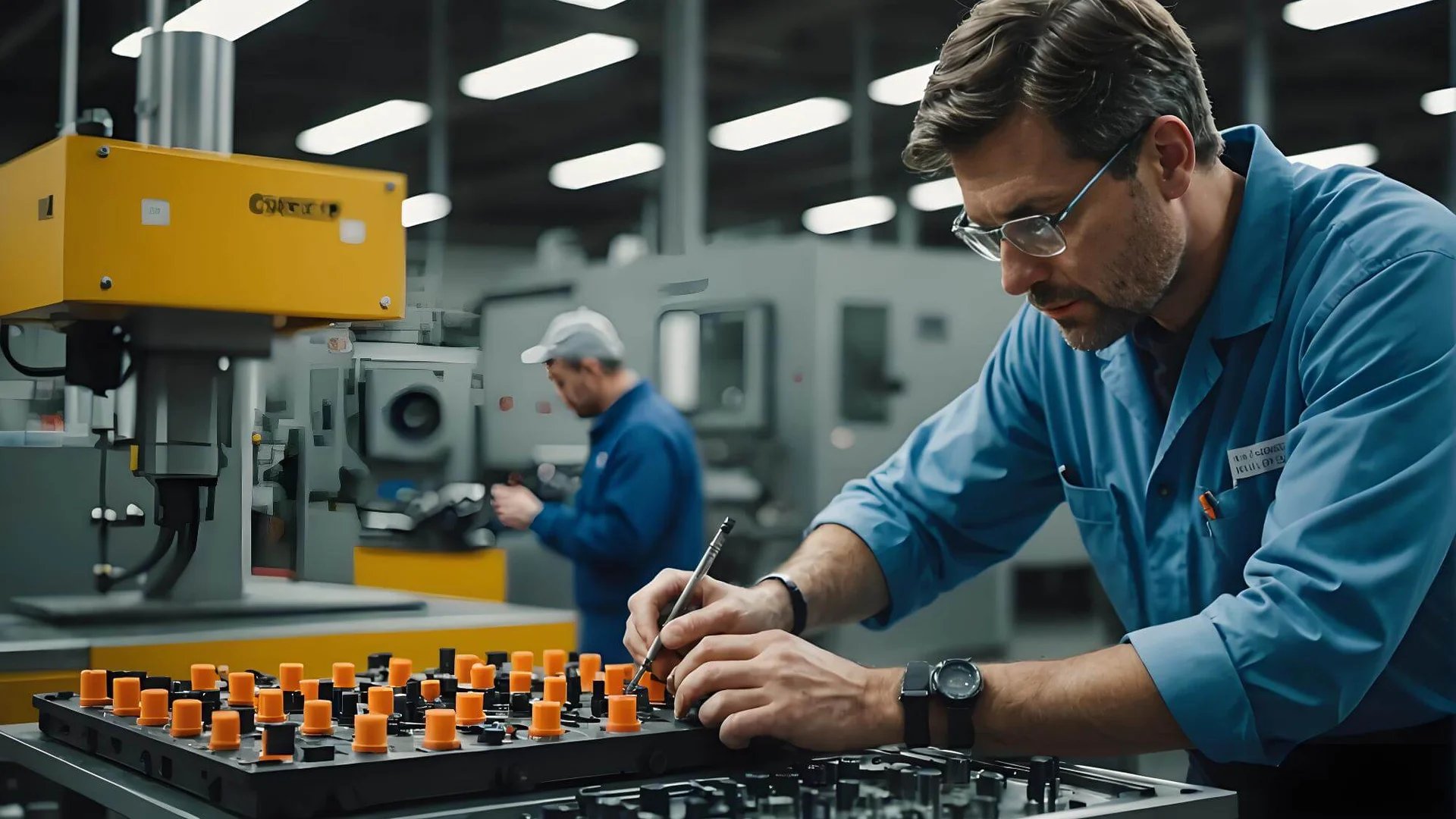

Why Is Mold Maintenance Critical for Color Uniformity?

Mold maintenance is pivotal in achieving color uniformity in injection molded parts, preventing defects that mar aesthetics.

Proper mold maintenance ensures consistent temperatures and prevents wear and tear, reducing color variations in injection molded parts.

The Role of Mold Temperature in Color Consistency

One of the primary mold-related factors influencing color uniformity is the temperature. An uneven mold temperature can lead to inconsistent curing speeds, causing variations in color. Optimizing the mold’s cooling system is crucial for maintaining a uniform temperature across the mold. Techniques such as multi-point temperature control and conformal cooling systems can be employed to enhance the cooling effect and ensure consistency.

• Example: If a mold section is significantly cooler than others, it could lead to faster curing, resulting in lighter shades in those areas. Conversely, hotter sections might cure more slowly, causing darker spots.

Ensuring Effective Mold Exhaust

Poor mold exhaust can result in defects like bubbles or burn marks within the molded parts, impacting their color. Enhancing the exhaust system by adding exhaust grooves and holes can help. During the injection process, adjustments to speed and pressure can also minimize gas formation, ensuring a uniform color appearance.

• Case Study: A manufacturing plant faced issues with dark streaks on molded parts due to inadequate exhaust. By integrating additional exhaust channels, they successfully eliminated these defects.

Addressing Mold Wear for Consistent Color

Mold wear, particularly around gates and runners, can lead to uneven plastic flow, affecting color consistency. Regular inspections and timely repairs or replacements of worn mold parts are essential. Utilizing wear-resistant materials during the mold design phase can also prolong mold life and maintain uniform flow.

• Real-world Application: A company noticed slight color discrepancies in products made from older molds. After replacing key worn components, they achieved more consistent results.

Importance of Routine Mold Maintenance

Regular maintenance activities such as cleaning, lubrication, and inspection ensure that molds function optimally. This routine upkeep prevents build-up that can lead to surface imperfections affecting the final product’s color. Implementing a structured maintenance schedule ensures that issues are identified and rectified promptly.

Learn about maintaining injection molds effectively³.

By understanding these mold-related factors and implementing proactive maintenance strategies, manufacturers can significantly improve the color uniformity of injection molded parts.

How Can Environmental Factors Impact Injection Molded Part Colors?

Environmental conditions in a manufacturing facility can greatly influence the color consistency of injection molded parts.

Variations in ambient temperature and humidity can lead to thermal degradation or moisture absorption, affecting part colors. Maintaining optimal environmental conditions is crucial to ensure consistent coloring during injection molding.

The Role of Ambient Temperature

Ambient temperature plays a critical role in the injection molding process. High temperatures in the workshop can accelerate the thermal degradation of plastics, altering their color. Conversely, cooler temperatures might slow down the molding process, leading to potential color inconsistencies.

Managing Temperature Effects

To mitigate these issues, manufacturers should install reliable HVAC systems to maintain stable temperature levels. By doing so, they can prevent temperature-induced color deviations, ensuring that the injection molded parts⁴ maintain their intended appearance.

Impact of Humidity Levels

Humidity can be an insidious factor, subtly influencing the final color of molded parts. Plastics, especially hygroscopic ones, tend to absorb moisture from the environment. This moisture can cause unwanted chemical reactions during the molding process, affecting the color and quality of the finished product.

Solutions for Humidity Control

Dehumidifiers are crucial tools in controlling humidity levels within a manufacturing facility. Keeping humidity at optimal levels not only protects the integrity of the material but also helps maintain color consistency across production batches.

Importance of Controlled Environments

A controlled environment is essential for maintaining consistent color in injection molded parts. Beyond temperature and humidity, factors such as dust and contamination must also be managed effectively.

Implementing Clean Room Practices

Adopting clean room practices, like those used in semiconductor manufacturing, can help reduce airborne particles and contaminants that could alter part colors. Implementing such practices ensures that environmental factors do not compromise product quality.

Maintaining an optimal environment is a multi-faceted challenge but one that can greatly enhance product quality. By controlling these variables, manufacturers can produce parts with consistent color and finish, meeting customer expectations and industry standards.

Conclusion

By addressing raw material quality and optimizing process parameters, manufacturers can achieve consistent color in injection molded parts. Continuous monitoring is key to minimizing variations and ensuring product quality.
