How Do Injection Molding Machines Create Plastic Balls?

Do you ever wonder how plastic balls become perfectly round? This process combines art and science. It is really fascinating. I’m thrilled to tell you about it!

Injection molding machines create plastic balls through mold design, material selection, and precise injection control, ensuring high-quality products that meet both functional and aesthetic requirements.

The process of making plastic balls through injection molding is complex. This involves both machines and creative thinking. Every step, from the first mold design to the finished product, really counts. I have years of experience in this field. A well-made mold changes everything. I recall a project with sports equipment. The choice of material was key. We picked polycarbonate because it is strong. Our balls needed to endure very tough conditions.

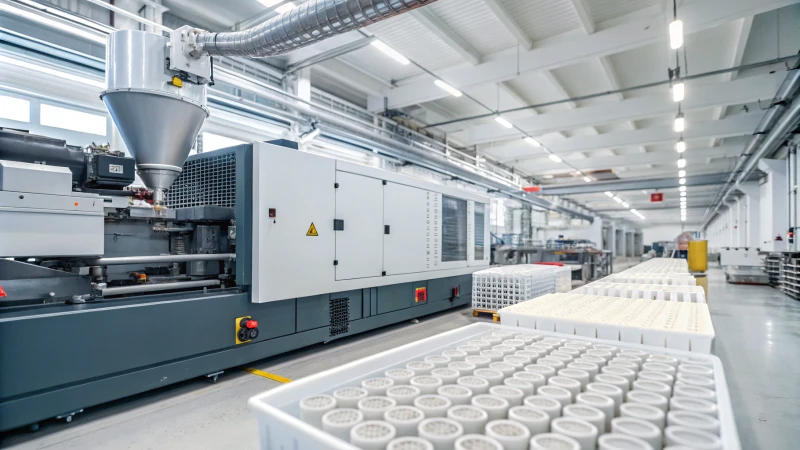

What Makes Up an Injection Molding Machine?

Do you ever think about how smooth plastic items we use daily are created? Injection molding machines are the hidden heroes in this process. These machines play a really important role in manufacturing. Let’s explore their main parts and reveal the magic behind them!

An injection molding machine comprises mold design, injection process, material selection, and parameter control, crucial for efficient, high-quality production of items like toys and industrial parts.

Injection molding machines are vital for producing a variety of plastic products, including plastic balls. Understanding the key components of these machines can significantly enhance the design and production process.

1. Mold Design

The mold is a critical component that determines the shape and quality of the final product.

• Spherical Mold Structure: For creating plastic balls, a specialized mold is necessary. A split mold is often used for smaller balls, forming a spherical cavity when closed. In contrast, larger balls may require a multi-petal mold to ensure precision and roundness. This consideration is crucial for maintaining product quality.

• Gate Design: The gate serves as the entry point for the molten plastic into the mold. Two common types are:

• Mold Release Design: Effective ejection mechanisms are essential for smooth demolding. Options include:
  • Push Plate Ejection: Pushes the entire ball out, preventing damage.
  • Pneumatic Ejection: Uses gas pressure to eject the ball gently.

2. Injection Molding Process

This process involves several stages that impact the quality of the final product.

• Plastic Material Selection: The type of plastic chosen affects the product’s application:

• Process Parameter Control: Maintaining optimal parameters is key:
  • Injection Pressure: Must be balanced; excessive pressure causes flash, while low pressure results in incomplete shapes.
  • Injection Speed: Should be adjusted to fill the cavity evenly, ensuring uniform density.
  • Cooling Stage: Proper cooling prevents deformation and maintains roundness.

Understanding these components and their functions can significantly improve your efficiency in production and design processes. For more detailed insights on injection molding techniques, feel free to explore our resources on mold design principles¹ and material selection strategies².

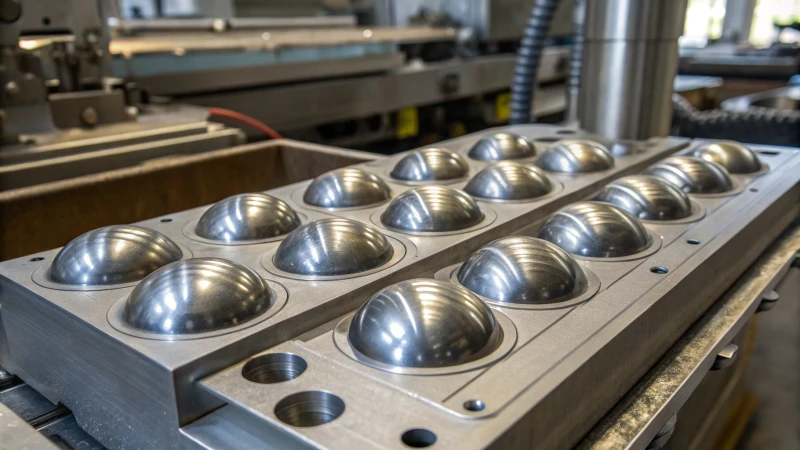

How Does Mold Design Impact the Quality of Plastic Balls?

Some plastic balls perform much better than others. Mold design is the reason. Mold design shapes their quality. Mold design shapes their performance.

Mold design significantly influences plastic ball quality, affecting strength, consistency, and appearance through structural design, gate selection, and material choice—all crucial for ensuring high-quality outcomes.

Understanding Mold Design

Mold design plays a crucial role in the production of high-quality plastic balls. The choice of mold structure affects both the precision and the aesthetic quality of the final product.

For instance, a spherical mold structure is commonly utilized in manufacturing plastic balls. A split mold is often employed for smaller diameters, forming a precise spherical cavity when closed. However, for larger balls or those requiring higher precision, a multi-petal mold is preferable. This design not only enhances the roundness of the sphere but also ensures uniformity in production.

Key Components of Mold Design

The following elements are essential in mold design:

The gate design selection is critical for ensuring that the melted plastic flows evenly within the spherical cavity. Point gates facilitate this by distributing the flow in all directions, leaving minimal marks on the surface. In contrast, latent gates can reduce visible residues post-demolding, enhancing the appearance of the plastic ball.

Impact of Injection Molding Process

The injection molding process is another critical factor influencing the quality of plastic balls. Proper plastic material selection is vital depending on the intended use. For example:

Each type of material has specific properties that dictate its suitability for different applications. The choice impacts not only the ball’s durability but also its overall functionality.

Process Parameter Control

Control over process parameters during injection molding is vital to avoid defects:

• Injection Pressure: Too high can cause flash; too low may lead to incomplete shapes.
• Injection Speed: Needs to be adjusted for even filling of the cavity.
• Cooling Stage: Ensures uniform cooling to maintain roundness and prevent deformation.

Efficient management of these parameters ensures that the resulting plastic balls meet quality standards while achieving desired characteristics like strength and consistency.

By focusing on these aspects of mold design and injection molding processes, manufacturers can significantly enhance the quality and performance of plastic balls produced.

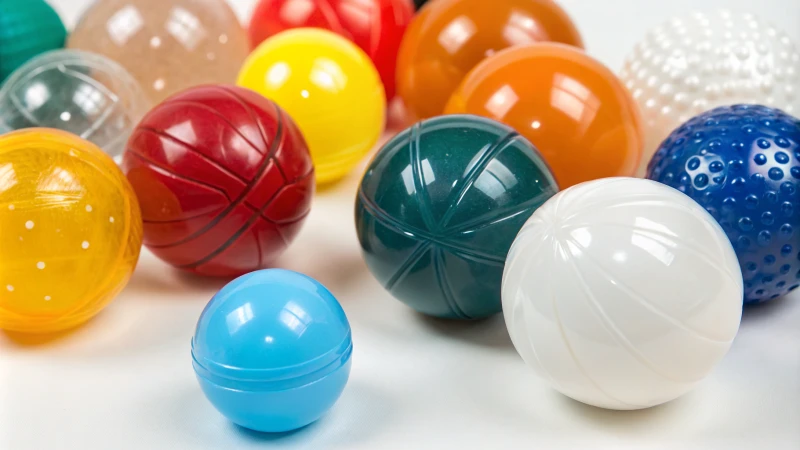

What Materials Are Best for Injection Molding Plastic Balls?

Selecting the best materials for creating plastic balls through injection molding is not only a technical job. It is a pursuit to develop something sturdy and useful. What factors should you truly think about?

Polyethylene is ideal for flexible toys, polypropylene for lightweight applications, polyamide for high strength, and polycarbonate for durability. Choose materials based on specific application needs.

Understanding Material Properties

Choosing the right material for injection molding plastic balls is crucial as it influences the final product’s performance and durability. Here are some common materials used:

• Polyethylene (PE): Known for its flexibility and impact resistance, making it ideal for toys. I once created colorful balls for children’s playrooms and I chose PE because I knew it could survive rough play. It’s a really good choice.
• Polypropylene (PP): Offers excellent fatigue resistance and is often used in applications requiring a lightweight material. For example, when designing parts for a small sports bag, PP’s lightness was a big benefit. It changed everything.
• Polyamide (PA): Provides higher strength and thermal stability, suitable for sports equipment. I’ve made sports equipment with it, knowing it could take a lot of stress. It doesn’t break easily.
• Polycarbonate (PC): Renowned for its toughness and transparency, making it perfect for applications needing durability. Think of safety glasses or electronic cases – PC always performs well.

Comparison of Materials

By understanding the strengths and weaknesses of these materials, designers can select the best option based on application needs. For instance, toys require softer materials like PE or PP, while high-strength applications might prefer PA or PC.

Process Considerations

Material selection must also align with the injection molding process to ensure optimal outcomes:

• Injection pressure must be controlled; too high may lead to defects while too low may cause incomplete filling.
• Injection speed should be adjusted to allow even melt distribution in the mold.
• Cooling stages are vital to prevent deformation; uniform cooling ensures that all parts of the ball maintain their intended shape.

To dive deeper into injection molding processes, check out injection molding techniques³.

Final Thoughts on Material Selection

When selecting materials for injection molding plastic balls, it’s important to consider both the physical properties of the materials and the specifics of the intended application. Each material has unique properties that can enhance product performance. To explore more on material specifications, visit material specifications⁴.

What Are Common Challenges in the Injection Molding Process?

Injection molding is a really interesting process. It is also complex, with many potential issues that may impact product quality. Do you sometimes wonder about usual problems in the world of molded plastics?

Common injection molding challenges include mold design issues, material selection, process parameter control, and defects like flow lines and sink marks. Addressing these can enhance product quality and efficiency.

Understanding Common Challenges in Injection Molding

The injection molding process is very efficient for mass production but presents some difficulties. Knowing these obstacles can help improve quality and reduce waste.

1. Mold Design Issues

Mold design is a major challenge. The right mold structure is very important for high-quality plastic parts. Even simple shapes like spheres need perfect molds. I once worked on making plastic balls and had to get the mold exactly right. For smaller balls, we used a split mold. This mold created a round cavity when closed. For larger balls or when precise sizes were needed, we chose a multi-petal mold. It was amazing to see how mold design choices affected the final product.

Gate design also matters for how plastic flows into the mold:
Point Gate: Ensures even flow, reducing surface marks.
Latent Gate: Seals automatically during demolding for a better look.

Mold release design must prevent damage when removing the item from the mold. Ejection methods like push plate ejection or pneumatic ejection are popular; both help keep the molded products intact.

2. Material Selection Challenges

Picking the right plastic is vital. Different uses need different qualities and I learned this lesson through experience! Using the wrong material can lead to failed products or unsafe results. This was a tough lesson after dealing with some failed prototypes.

3. Process Parameter Control

Controlling parameters is really important in injection molding:
Injection Pressure: Needs balance; too high causes flash, too low results in incomplete parts.
Injection Speed: Affects how evenly the mold fills.
Cooling Stage: Uneven cooling causes warping and can change the shape and function.

These parameters require ongoing checks and changes, which can be hard in a busy production setting. I stay vigilant to prevent avoidable errors.

4. Common Defects in Injection Molding

Several defects may appear during injection molding:
Flow Lines: Surface lines appear from uneven cooling or speed.
Sink Marks: Indentations form as the material shrinks while cooling.
Short Shots: Happen when the mold lacks enough material.

To explore more about these defects, look at resources like defects in injection molding.

Understanding these problems is crucial for those in product design and manufacturing. Tackling these drawbacks early has improved my molding processes, increasing both efficiency and quality. It truly made the effort worthwhile.

Understanding Common Challenges in Injection Molding

I explored the world of injection molding and found it complex and sometimes frustrating. It feels like solving a puzzle. Every piece, like the mold, material, and machine settings, needs a perfect fit. This alignment creates a successful product. I encountered several key challenges on this journey. Here are some insights to navigate them.

The injection molding process, while highly efficient for mass production, is not without its challenges. Recognizing these hurdles can help improve product quality and reduce waste.

1. Mold Design Issues

One of the primary challenges arises from mold design. Proper mold structure is crucial for producing high-quality plastic parts, such as spheres. For instance, using a spherical mold structure requires a specific design:

Additionally, the gate design affects how plastic flows into the mold:

• Point Gate: Allows even flow, minimizing surface marks.
• Latent Gate: Cuts off automatically during demolding to enhance appearance.

Proper mold release design is also essential to prevent damage during demolding. Ejection mechanisms like push plate ejection or pneumatic ejection are commonly used.

2. Material Selection Challenges

Choosing the right plastic material is critical. Different applications require different properties:

Selecting the wrong material can lead to product failure or compromised safety standards.

3. Process Parameter Control

Controlling parameters during injection molding is vital:

• Injection Pressure: Must be balanced; too high can cause flash, too low may lead to incomplete parts.
• Injection Speed: Adjusting speed ensures uniform filling of the mold cavity.
• Cooling Stage: Uneven cooling can result in warping and affect the part’s shape and functionality.

Maintaining these parameters requires ongoing monitoring and adjustments to achieve optimal results, which can be challenging in a high-volume production setting.

4. Common Defects in Injection Molding

Several defects can occur during the injection molding process:

• Flow Lines: Visible lines on the surface due to uneven cooling or injection speed.
• Sink Marks: Indentations on the surface caused by shrinkage of the material as it cools.
• Short Shots: Occur when insufficient material fills the mold cavity.

To learn more about these defects and how to address them, explore resources like defects in injection molding⁵.

Understanding these common challenges is essential for professionals involved in product design and manufacturing. By addressing these issues proactively, you can enhance the efficiency and quality of your injection molding processes.

Conclusion

This article explores how injection molding machines produce plastic balls, detailing the importance of mold design, material selection, and process parameter control in achieving quality results.
