What Are the Best Techniques to Improve Dimensional Stability in Injection Molding?

Are you grappling with inconsistent part sizes in your injection molding process? Trust me, you’re not alone!

To improve dimensional stability in injection molding, focus on selecting the right plastic resin, designing accurate molds, optimizing injection process parameters, and implementing thorough quality control. These steps help ensure consistent product dimensions and reduce defects.

While these basic steps provide a solid foundation, diving deeper into each aspect reveals specific strategies that can significantly enhance dimensional stability. Let’s explore these techniques together!

How Does Raw Material Selection Affect Dimensional Stability?

Raw material selection is crucial in determining the dimensional stability of injection-molded products. Choosing the right resin and ensuring material quality can minimize shrinkage and deviations.

Selecting appropriate raw materials significantly impacts dimensional stability by influencing shrinkage, stability, and the uniformity of the final product. The choice of resin and control over impurities and moisture are key factors.

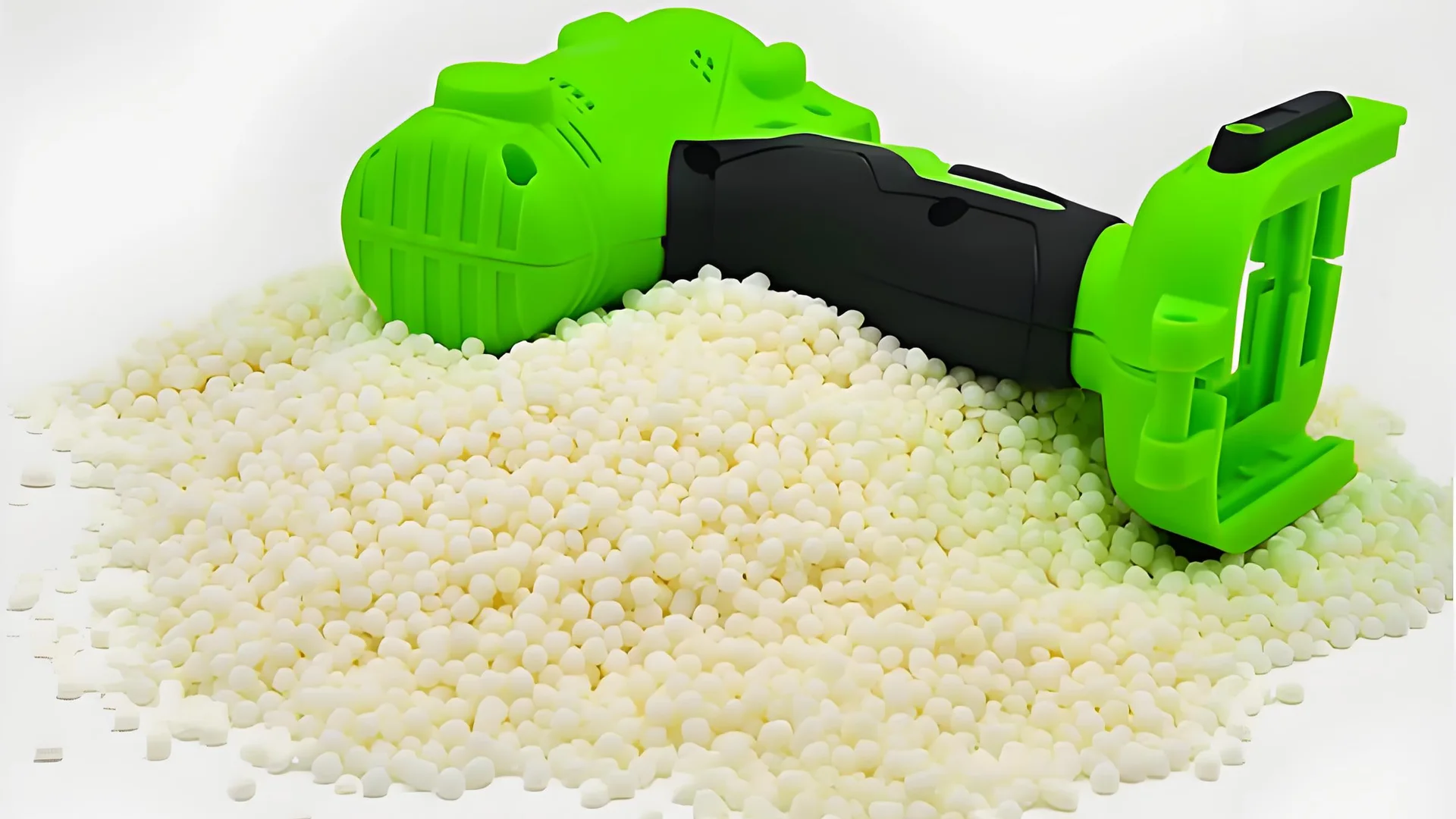

Choosing the Right Plastic Resin

The selection of plastic resin¹ plays a pivotal role in ensuring dimensional stability. Different resins exhibit varying degrees of shrinkage and thermal expansion. For instance, resins with low crystallinity, such as amorphous polymers, tend to offer better dimensional stability due to their consistent molecular structure.

1. Resin Characteristics: The molecular weight distribution and crystallinity of the resin are critical. Resins with narrow molecular weight distribution are less prone to variations in shrinkage and warping.
2. Fluidity Considerations: High fluidity resins fill molds more uniformly, reducing the likelihood of dimensional discrepancies due to incomplete filling.

Controlling Raw Material Quality

Consistency and purity of raw materials are equally important. Impurities and uneven compositions can lead to defects such as warping or surface irregularities.

• Supplier Reliability: Opting for reliable suppliers ensures that the raw material’s quality remains consistent across batches.
• Moisture Management: Moisture content in raw materials can significantly affect the dimensional stability, leading to problems such as silver streaks or voids. Ensuring proper drying protocols based on resin type can mitigate these issues.

Table: Impact of Material Properties on Dimensional Stability

Conclusion

Incorporating a strategic approach to raw material selection² can greatly enhance the dimensional stability of injection-molded products. By focusing on resin characteristics and stringent quality controls, manufacturers can achieve high precision in their molded parts.

What Role Does Mold Design Play in Achieving Precision?

Mold design is a critical factor in ensuring the precision of injection-molded parts.

Mold design significantly influences precision in injection molding by determining the dimensional accuracy, surface quality, and stability of parts. Key aspects include the mold structure, cooling system, and manufacturing processes that collectively reduce defects and improve product quality.

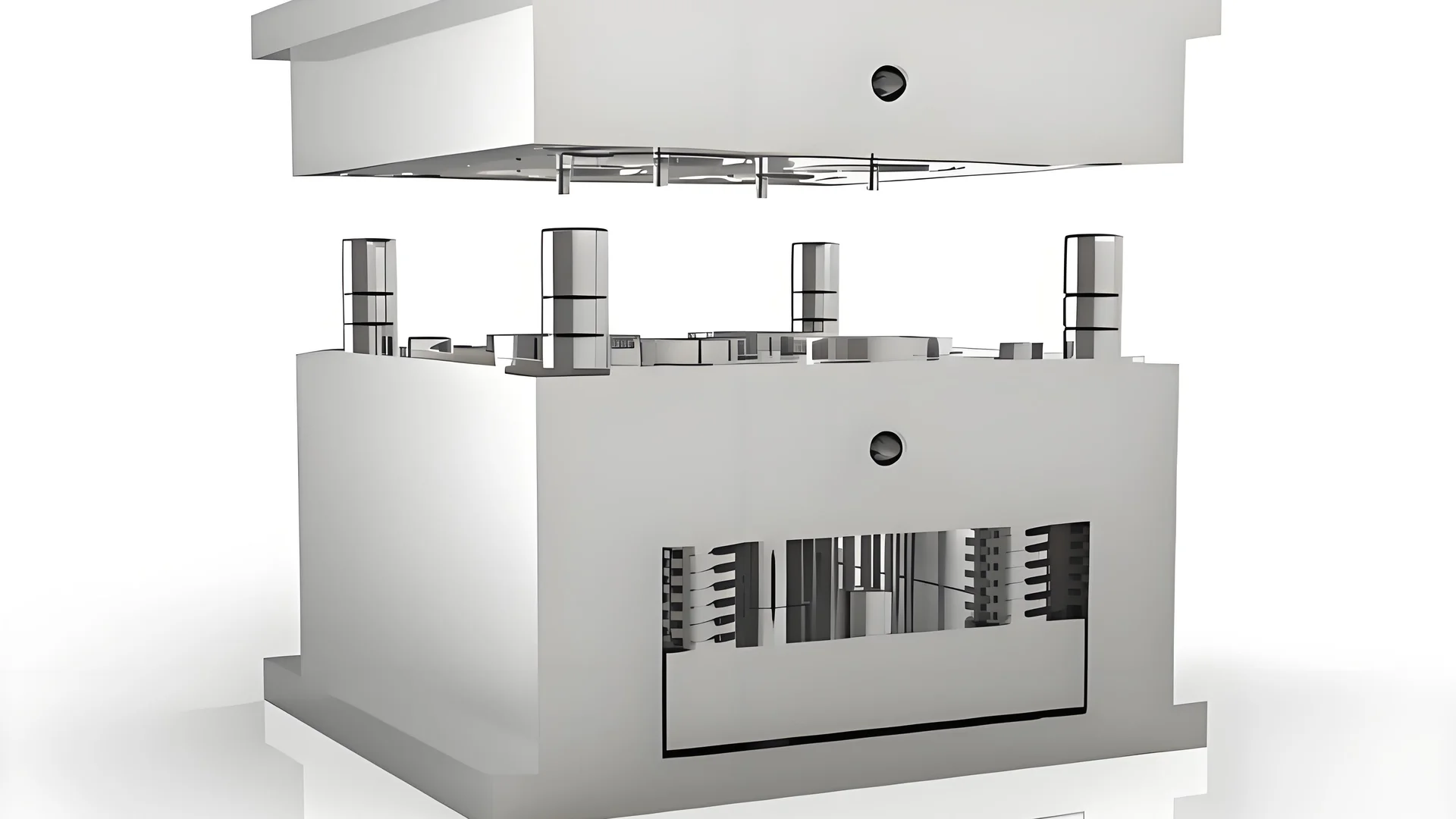

Understanding Mold Structure

The mold structure forms the foundation of precision in injection molding³. A well-designed mold structure accounts for parting lines and gate positions, which are pivotal in ensuring even filling of the mold cavity. This reduces the likelihood of warping and dimensional deviations.

Parting Surface and Gate Design

The positioning of the parting surface should minimize disruptions at critical dimensions. By carefully selecting gate locations, manufacturers can ensure uniform flow and pressure distribution, reducing inconsistencies.

Simulation Software

Utilizing simulation software for mold design can preemptively identify potential issues such as air traps or weld lines. By rectifying these issues early, manufacturers can enhance the precision and reliability of the molding process.

Cooling System Design

Effective cooling system design is another cornerstone of achieving high precision in molded parts. Uniform cooling helps mitigate differential shrinkage, which is a common cause of dimensional inaccuracies.

• Cooling Channels Layout: The layout should be optimized to ensure consistent temperature across the mold. This requires precise calculations and sometimes innovative designs to cater to complex part geometries.

• Thermal Analysis: Conducting a thorough thermal analysis can highlight hot spots or areas with uneven cooling, allowing for adjustments that enhance dimensional stability.

High-Precision Mold Manufacturing

Once the design phase is optimized, translating it into a physical mold with high precision is crucial.

• Advanced Processing Equipment: Utilizing state-of-the-art CNC machines and high-precision tools ensures that each mold component adheres to exact specifications, minimizing errors in final parts.

• Surface Treatments: Polishing and surface treatments reduce friction during demolding, which not only facilitates easier part removal but also preserves the integrity and dimensions of the molded components.

The Impact of High-Precision Molds on Production

High-precision molds deliver multiple benefits:

Overall, the intricacies of mold design directly affect production outcomes. By focusing on precision in each design aspect—from structural layout to cooling system efficiency—manufacturers can consistently achieve high-quality, precise parts. Explore more about advanced mold technologies⁴ to see how they can be applied to your processes.

Which Process Parameters Are Crucial for Dimensional Accuracy?

Understanding key process parameters is essential to achieving precise dimensions in injection molded parts.

Crucial process parameters for dimensional accuracy include temperature, pressure, speed, and time control. These parameters impact how materials fill and solidify within molds, directly influencing the final dimensions. Properly adjusting and monitoring these factors ensures minimal shrinkage and warping, enhancing overall precision.

Temperature Control

Temperature significantly influences the fluidity of the plastic resin and its ability to fill the mold completely. The three main temperature zones to manage are:

• Barrel Temperature: It affects the melting of the resin. Too high a temperature can degrade the material, while too low may result in incomplete filling.
• Nozzle Temperature: Ensures the material remains molten as it enters the mold.
• Mold Temperature: Affects the cooling rate of the resin, impacting shrinkage and crystallinity.

Implementing stable temperature control systems is crucial. For instance, maintaining consistent barrel temperatures⁵ can prevent fluctuations that lead to inconsistent part dimensions.

Pressure Control

Injection pressure, holding pressure, and back pressure are pivotal for ensuring complete mold filling and reducing defects like sink marks:

• Injection Pressure: Determines how effectively the resin is injected into the mold cavity. Insufficient pressure can lead to incomplete parts.
• Holding Pressure: Maintains pressure on the resin during cooling to counteract shrinkage.
• Back Pressure: Impacts the melt quality by ensuring proper homogenization of the material.

Fine-tuning these pressures based on material type and mold design can lead to significant improvements in dimensional accuracy. Explore strategies to optimize injection pressure settings⁶ for better results.

Speed Control

Adjusting speeds during different phases of injection molding—such as injection, holding, and cooling—can minimize dimensional deviations:

• Injection Speed: Affects how quickly the mold fills. High speeds might lead to turbulence and air entrapment.
• Holding Speed: Influences how uniformly pressure is applied during solidification.
• Cooling Speed: Impacts how evenly the part cools, affecting internal stresses and shrinkage.

Conduct experiments to establish the ideal speed settings that balance flow with material properties. Consider exploring how cooling speed adjustments⁷ can enhance dimensional precision.

Time Control

Properly timed cycles ensure materials are neither under nor overprocessed, which can affect size consistency:

• Injection Time: Dictates how quickly material is injected into the mold.
• Holding Time: Ensures pressure is maintained until the gate freezes.
• Cooling Time: Allows sufficient solidification before ejection to minimize post-molding shrinkage.

Experimentation with these timings based on product specifications can help achieve better accuracy. Discover effective cooling time strategies⁸ that optimize dimensional outcomes.

Together, these process parameters form the backbone of achieving dimensional accuracy in injection molding. By carefully adjusting and monitoring these factors, manufacturers can reduce waste and improve product quality.

How Can Post-Processing Enhance Dimensional Stability?

Post-processing can be the unsung hero in achieving dimensional stability for injection molded parts.

Post-processing techniques such as annealing and humidity adjustment can significantly enhance dimensional stability by relieving internal stresses and balancing moisture content in plastics.

Understanding Annealing in Injection Molding

Annealing is a heat treatment process that involves heating the plastic parts to a specific temperature, maintaining that temperature for a period, and then slowly cooling them down. This process helps in relieving internal stresses that can lead to warping and distortion. For instance, annealing temperature⁹ and time vary depending on the plastic resin type, and precise control is crucial to achieving optimal results. Polycarbonate parts, for example, may require different annealing conditions than polyamide parts.

The annealing process reduces internal stresses formed during the molding process, particularly in high-precision products. As these stresses are relieved, the material becomes more dimensionally stable, reducing post-mold shrinkage and improving the consistency of part dimensions.

The Role of Humidity Adjustment

Some plastics, like nylon, are hygroscopic, meaning they absorb moisture from the environment. This can lead to changes in dimensions after molding. Implementing a humidity adjustment treatment involves exposing the molded part to controlled humidity conditions so it can absorb a stable amount of moisture before it goes into use. The goal is to reach an equilibrium state where further moisture absorption during product use is minimized.

Choosing the right conditions for humidity adjustment¹⁰ is essential. This involves determining the specific humidity level and exposure time based on the plastic type and intended product application. By ensuring consistent moisture content throughout the material, dimensional changes caused by environmental humidity fluctuations can be mitigated.

Combining Techniques for Maximum Effect

While annealing and humidity adjustment are effective separately, combining these methods can lead to even greater improvements in dimensional stability. For example, a product subjected to both annealing and humidity control might exhibit enhanced performance in environments with varying temperatures and humidity levels.

By integrating these post-processing techniques into your manufacturing process, you can ensure that your injection-molded products meet stringent dimensional requirements while reducing defects.

Conclusion

By implementing these techniques, you can significantly improve the dimensional stability of molded parts. Consider these strategies to optimize your processes and enhance overall production efficiency.
