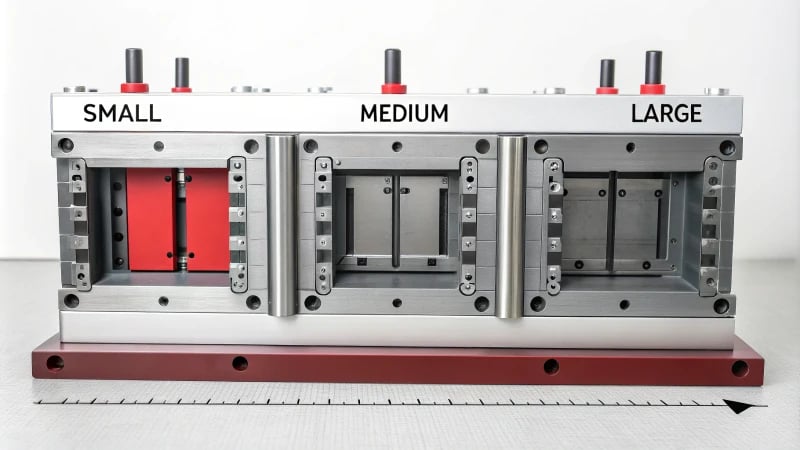

In the world of injection molding, I learned that proper film gate width creates a big impact on product quality and efficiency. Correct width is very important.
The best way to find the film gate width is by looking at the product size and wall thickness. Small products need a gate width that is 50%-100% of the product’s width. Medium products need a width between 30% and 70%. Large products usually need a width from 20% to 50%. This depends on wall thickness. Wall thickness matters.
Understanding these guidelines transformed how I improve mold design and production results. I want to share these important points and extra ideas I have learned over time. These will help refine your method. Settings must be adjusted whether you work with a small plastic card or a large car part. Tweaking these settings really prevents future problems. This knowledge is useful. These ranges are crucial. They helped me. They probably help you achieve smoother production.
Small products need a gate width of 50%-100% of their width.True
For small products, the recommended gate width is 50%-100%.
Large products require a gate width of 70%-100%.False
Large products need a gate width of 20%-50%, not 70%-100%.
How does product size influence gate width?
I remember my first encounter with injection molding. It felt like a maze full of technical details and important choices. Diving deeper, I realized something. The size of a product controls the gate width completely. It really is like the secret ingredient for perfect molding.
Product size plays a big role in injection molding. Molded parts need specific gate widths. Smaller items may require a gate width that is half to the full size of the product. Medium-sized items likely benefit from a gate width that is 30% to 70% of the item’s width. Large objects need a narrower gate size. This size ranges from 20% to 50% to help with balanced flow. Structural strength is crucial. This really is crucial.
Influence of Product Size on Gate Width
When I started working with injection molds, it felt like solving a puzzle. One day, I learned how important the product’s size was while deciding gate widths for plastic cards. For small items, gate widths between 50% and 100% of the product’s width worked well. This simple change led to smooth and even material distribution. It was amazing!
| Product Size | Recommended Gate Width |
|---|---|
| Small | 50% – 100% |
| Medium | 30% – 70% |
| Large | 20% – 50% |
Medium-sized items, like panels, needed different widths. A gate width of 30% to 70% did wonders. It balanced the melt flow. The flow was not too fast and not too slow. This reduced defects like shrinkage marks1. Large automotive parts needed a different approach. A narrow gate width of about 20% to 50% was best. Careful planning was needed to manage mold costs and complexity.
Impact on Mold Design
Gate width choice affects the mold’s design and how it works. Smaller gates mean simpler molds. They are useful when time is short. Larger gates require stronger mold structures to handle more flow.
Injection molding techniques2 help designers keep quality high and cut production costs.
Considerations for Wall Thickness
I once designed thin-wall products where a wider gate was necessary for quick cavity filling. Thin walls need fast action like a sprint to avoid weld marks or poor filling. On the other hand, thick walls need a narrower gate; a slow entry speed prevents defects like internal voids.
In injection molding, gate design calculators3 offer precise dimensions for good results.
Small products need a gate width of 50% to 100%.True
Small products require wider gates for uniform melt distribution.
Large products use gates over 70% of their width.False
Large products require gates of only 20% to 50% of their width.
Why Is Wall Thickness Crucial in Gate Design?
Picture creating a product where just a few millimeters decide if it succeeds or fails. Wall thickness in gate design is extremely important. It really matters.
Wall thickness is very important in gate design. It determines melt flow rate, cooling time and strength of the product. Right thickness allows even spread of material. It reduces defects. It matters a lot.
Understanding Wall Thickness in Injection Molding
Early in my journey with injection molding, wall thickness stood out as something very important. It acts as the backbone of the whole process, influencing everything from how smoothly the melt moves to the final quality of the product.
Impact on Melt Flow
One project involved designing thin-wall products. They were tricky, less than 1.5mm thick. We faced challenges without a wide gate. Quick and even filling4 was really hard. Trial and error guided us to find the solution, reducing defects like weld marks.
Cooling Time Considerations
Medium-wall products have a thickness of 1.5-3mm. They are like the perfect middle in injection molding – not too thin, not too thick. Adjusting the gate width was important for controlling melt flow and avoiding problems like shrinkage or warping required balance. This needs both experience and sometimes intuition.
| Product Type | Wall Thickness | Recommended Gate Width |
|---|---|---|
| Thin-wall | < 1.5mm | 40% – 80% of product width |
| Medium-wall | 1.5-3mm | 30% – 60% of product width |
| Thick-wall | > 3mm | 20% – 50% of product width |
Structural Integrity
Thick-wall products need careful stress distribution. A narrow gate helped manage entry speed, which was key in preventing internal voids that can harm structural strength.
Product Size and Gate Width Correlation
Size is important when designing small items like compact plastic parts; a wide gate fills small spaces quickly. But with large items like car parts, gate width considerations5 became crucial for balancing mold structure and flow perfectly.
These lessons taught me about wall thickness details, showing how understanding these can really improve design functionality and production efficiency. Using this knowledge has allowed me to optimize injection molding processes successfully every time.
Thicker walls reduce risk of weld marks.False
Thicker walls may not directly reduce weld marks; thin walls with wider gates help.
Medium-wall products have balanced cooling rates.True
Medium-wall thickness balances fluidity and cooling, reducing defects.

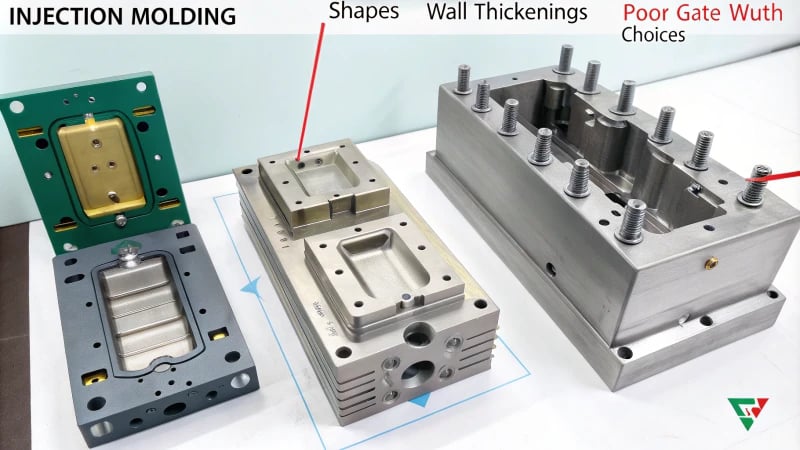

What Are Common Mistakes in Gate Width Selection?
Have you ever wondered why some products end up with defects even after detailed planning? One reason could be the choice of gate width during injection molding. This part is very important.
Common mistakes in choosing gate width often happen when ignoring product size, wall thickness and material properties. Correct gate size helps the melt flow smoothly. This flow reduces problems like warping and incomplete fills. Warping and incomplete fills reduce.
Overlooking Product Size
People often forget how product size affects choosing a gate width. Early in my career, I missed this with a small electronic case. The gate width was too thin, causing uneven filling and delays. Small products, under 50mm wide, need gate widths around 50%-100% of the product width for efficient filling. Medium products, about 100mm wide, usually require 30%-70% gate width to balance flow and mold design. Large products over 200mm wide usually need 20%-50% gate width to keep the melt moving smoothly. Remember, product size matters a lot.
| Product Size | Recommended Gate Width |
|---|---|
| Small (<50mm) | 50%-100% |
| Medium (50-200mm) | 30%-70% |
| Large (>200mm) | 20%-50% |
Overlooking Wall Thickness
Thin walls caused me problems once because I chose the wrong gate width. It was an expensive mistake. Thin walls, less than 1.5mm, require wider gates, maybe around 40%-80% of the product width, for even filling. Medium walls, 1.5-3mm thick, need 30%-60% gate widths to prevent warping and shrinkage. Thick walls do better with narrower gates, about 20%-50%, to regulate melt speed and avoid voids.
Ignoring Material Properties
Material traits might surprise you if you don’t pay attention. I remember using a thick polymer and didn’t adjust the gate width—defects followed that could have been avoided. Each material has different flow characteristics; ignorance here can lead to warping or worse.
Material Considerations6
High-viscosity materials often need wider gates due to their unique flow properties during molding.
Misjudging Mold Design Impact
Mold designs can be tricky. I once handled a complex mold and realized precise gate adjustments were vital for even distribution.
Complex designs require careful gate width choices to ensure good quality and fewer errors.
Mold Design Factors7
Understanding specific mold features is crucial as they necessitate precise gate width calculations for achieving defect-free products.
Not Using Simulation Data
Simulations really change things; skipping them is costly and leads to lots of trial and error.
They provide data for better gate dimension decisions, increasing efficiency and product quality.
Incorporating simulation data helps predict and refine gate dimensions effectively.
Avoiding these common mistakes will make your injection molding projects smoother. Your products will probably reach quality goals more consistently—really worth paying attention to these factors.
Small products need gates 10%-30% of their width.False
Small products require gates 50%-100% of their width for proper filling.
Ignoring wall thickness can cause internal voids in products.True
Not adjusting gate width for wall thickness can lead to defects like voids.
How Can Mold Design Tools Aid in Optimizing Gate Width?
Ever been lost in a project, where every little detail affects the final outcome? Adjusting gate width in injection molding resembles this. It is a critical part. Precision truly counts.
Mold design tools assist in finding the best gate width by giving simulations. These predictions show how the melt flows. Designers then adjust gate sizes for the best filling and fewer defects. The product quality increases. Really improves.
Importance of Gate Width Optimization
Perfectly molded plastic parts impress with their precision. Perfection often depends on something simple: optimizing gate width. Proper flow into the mold cavity is essential. Perfect flow means no defects or waste in the final product. I once worked on a project where every millimeter was crucial. A tiny gate width change made a big difference. It felt like discovering a secret.
| Product Size | Gate Width % of Product Width |
|---|---|
| Small (<50mm) | 50% – 100% |
| Medium (50-200mm) | 30% – 70% |
| Large (>200mm) | 20% – 50% |
Role of Mold Design Tools
Mold design tools act like helpful sidekicks. They offer insights you might miss. CAD software8 and simulation tools help show how gate width changes affect products. Watching my first simulation felt like a movie. Every scene was vital to the story.
Simulation Insights
These tools offer priceless insights. They show pressure drops and temperature distribution, which really matter. For example, in thin-wall products, tweaking gate width can remove weld marks. It’s like having a map straight to treasure.
Case Studies: Application of Design Tools
- Small Products: Small plastic cards show this idea well. Setting gate width between 15-30mm helps a 30mm-wide product fill quickly and evenly. That tiny tweak makes a big impact.
- Medium Products: A 100mm wide panel might need a gate width of 30-70mm, balancing melt distribution and flow rate.
- Large Products: For products over 200mm wide, simulations find a gate width that balances flow without high mold costs.
Exploring Various Tools
When looking for mold design tools, find ones with many features for simulating injection molding. Some tools offer integrated design and analysis solutions9, simplifying your tasks.
Additional Considerations
Consider wall thickness when choosing gate width. Thin-wall products require wider gates for fast filling, while thick-wall products work better with narrow gates to control melt speed and avoid shrink marks.
Using these modern tools, produce high-quality products with few defects—it’s like being an artist using technology as a brush, crafting precision in every piece.
Gate width affects melt flow in mold cavities.True
Gate width controls how the melt flows into the cavity, affecting filling.
Simulation tools predict gate width impact on product.True
Simulation tools help predict how changes in gate width affect product quality.
Conclusion
Determining film gate width in injection molding is crucial for product quality, varying by product size and wall thickness, ensuring efficient melt flow and minimizing defects.
-
