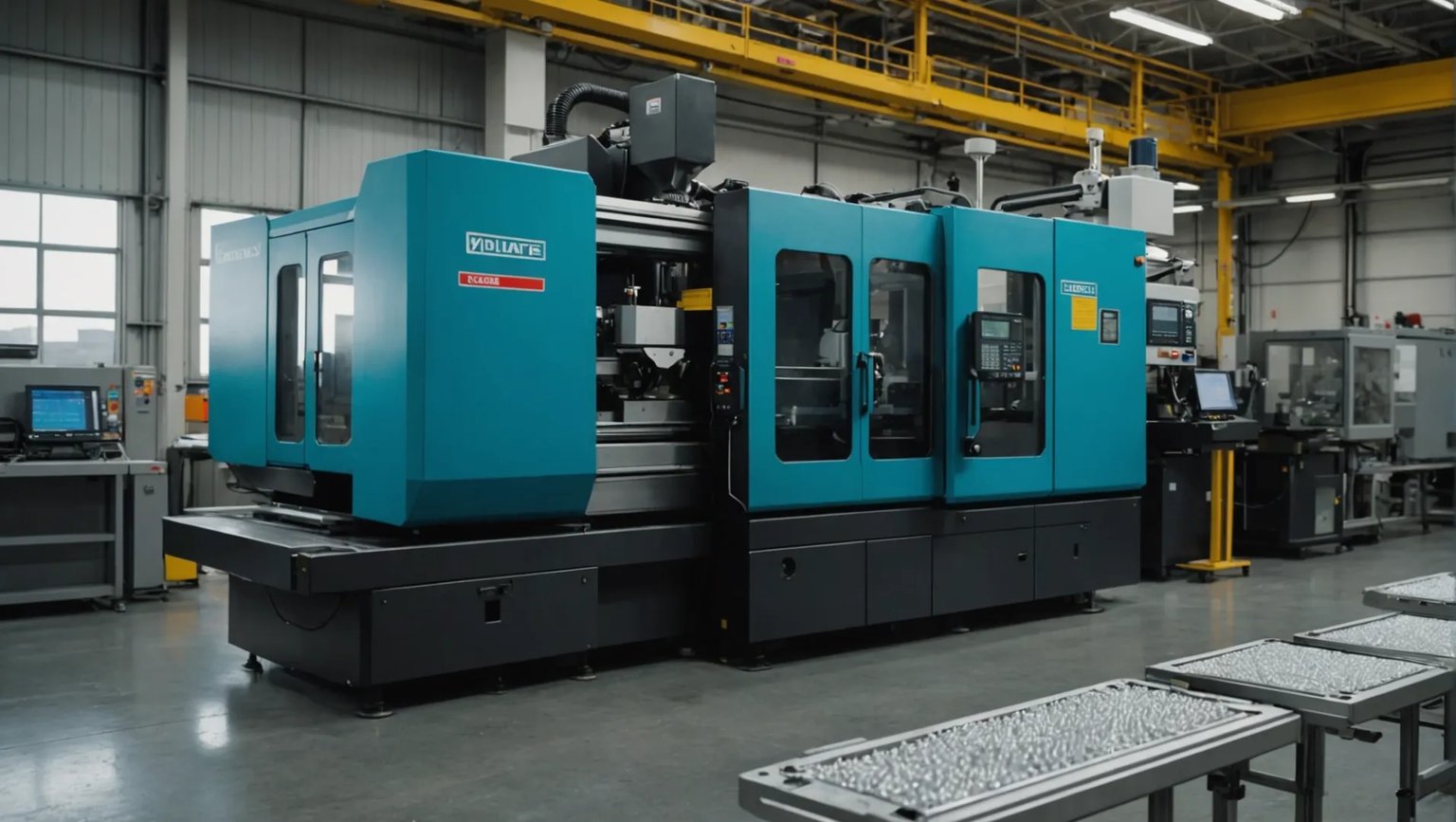

Have you ever struggled with the frustrating phenomenon of incomplete filling in injection molding? You’re not alone.
Incomplete filling in injection molding is primarily caused by poor material fluidity, inadequate mold design, and insufficient machine parameters. Adjustments in material choice, mold configuration, and machine settings can significantly improve filling effectiveness.
While the root causes of incomplete filling are multifaceted, they present opportunities for optimization. Delve into the detailed adjustments for materials, mold design, and machine settings to enhance your injection molding process.
Material fluidity affects mold filling effectiveness.True
High fluidity materials flow easily, ensuring complete mold filling.
How Does Material Choice Affect Injection Molding?
Material selection in injection molding is pivotal, influencing everything from cycle time to product quality. The right choice can mean the difference between success and failure.
Material choice impacts injection molding through factors like fluidity, drying requirements, and thermal stability. Selecting materials with optimal properties enhances mold filling, reduces defects, and ensures consistent product quality.
The Role of Material Fluidity
The fluidity of the plastic material is a critical factor in the injection molding1 process. Materials with high fluidity can flow easily into the intricate spaces of a mold, ensuring complete filling. Conversely, materials with poor fluidity might result in ‘short shots,’ where the mold is not entirely filled.
Example: Consider using a polycarbonate with high melt flow index (MFI) for components with complex geometries. It offers better flow characteristics compared to a low MFI polypropylene.
Importance of Material Drying
Moisture content within the material can severely impact the molding process. Inadequately dried materials can generate steam during molding, leading to incomplete filling or surface defects.
Example: Nylon, which is hygroscopic, requires thorough drying to remove moisture content before molding. Using a desiccant dryer set at appropriate temperatures can mitigate issues.
Thermal Stability and Its Influence
Thermal stability determines how well a material can withstand the heat applied during injection molding without degrading.
Example: Selecting an ABS with a higher thermal stability ensures that it maintains its properties during molding cycles. This prevents issues like discoloration or material degradation.
Material Additives and Their Effects
Incorporating additives such as fillers or plasticizers can modify the material’s properties significantly.
Example: Adding glass fibers to a polymer increases its strength and thermal resistance but may reduce its fluidity, affecting mold filling.
Selecting Materials for Optimal Results
When choosing materials for injection molding, consider:
- Compatibility with Mold Design: Ensure material complements gate sizes and runner design.
- Processing Conditions: Align material properties with machine capabilities and processing conditions.
- End-use Requirements: Material should meet the mechanical and aesthetic requirements of the finished product.
By selecting materials that align with these considerations, manufacturers can optimize their injection molding processes2.
High fluidity ensures complete mold filling.True
Materials with high fluidity fill intricate mold spaces effectively.
Nylon does not require drying before molding.False
Nylon is hygroscopic and needs thorough drying to prevent defects.
What Role Does Mold Design Play in Filling Issues?
Mold design is crucial in injection molding, impacting the efficiency and quality of the filling process. Understanding its role helps optimize production.
Mold design affects filling issues in injection molding through factors like gate size, runner layout, and exhaust systems. Properly designed molds ensure efficient plastic flow and reduce defects such as incomplete filling.
Understanding the Impact of Gate Design
The gate size3 in a mold plays a pivotal role in filling issues. A gate acts as the entry point for molten plastic into the mold cavity. If the gate is too small, it restricts the flow of plastic, leading to incomplete filling. An optimal gate size ensures that the plastic flows with minimal resistance, reducing the risk of defects.
Designers often adjust gate dimensions based on material characteristics and product specifications. This adjustment allows for more controlled pressure and speed during injection, enhancing overall filling quality.
Runner Layout and Flow Efficiency
Runner systems are the channels that guide molten plastic from the injection unit to the mold cavity. A well-designed runner layout4 ensures that the plastic reaches all parts of the mold evenly, minimizing pressure drops and flow resistance.
Common issues arise when runners are too narrow, excessively long, or have sharp bends. These design flaws increase friction, which can impede the smooth flow of plastic. Optimizing runner designs by shortening lengths, widening passages, or smoothing curves can significantly improve filling performance.
The Importance of Exhaust Systems
Proper exhaust systems are vital for effective mold operation5. Without adequate venting, trapped air can create pressure imbalances, preventing full cavity filling. Gas accumulation is another consequence of poor exhaust design, leading to voids and surface defects.
Incorporating venting channels or adding exhaust grooves can alleviate these issues. By ensuring gases escape smoothly, these features allow for unobstructed plastic flow, crucial for achieving complete and defect-free fills.
Balancing Cost and Design Complexity
While intricate mold designs can enhance filling efficiency, they may also increase production costs. Designers must balance complexity and cost6 to maintain economic viability. Using advanced simulation software can aid in predicting flow patterns and identifying potential problem areas without incurring excessive tooling expenses.
Ultimately, thoughtful mold design is a critical aspect of addressing filling issues in injection molding. By focusing on gate size, runner configuration, and exhaust capabilities, manufacturers can achieve superior results and mitigate common defects.
Gate size directly affects filling efficiency.True
Gate size impacts how easily molten plastic flows into the mold.
Exhaust systems have no impact on filling issues.False
Proper exhaust systems prevent trapped air, aiding complete filling.
How Can Machine Settings Be Optimized for Better Results?
In injection molding, fine-tuning machine settings can dramatically enhance product quality and minimize defects like incomplete filling.
Optimizing machine settings in injection molding involves adjusting injection pressure, speed, and barrel temperature. These adjustments help achieve full cavity filling by enhancing plastic flow and reducing cooling time.
Fine-Tuning Injection Pressure
Injection pressure is crucial for ensuring that the molten plastic fully fills the mold cavity. Insufficient pressure can lead to incomplete filling, known as ‘short shots’. To address this, gradually increase the pressure, keeping it within the machine’s maximum capacity to prevent damage. This ensures the plastic is adequately driven into all areas of the mold.
Adjusting Injection Speed
A slower injection speed can cause the plastic to cool and solidify too quickly, reducing its ability to flow smoothly into the mold. Speeding up the injection process can mitigate this issue by maintaining a higher temperature of the plastic during the fill phase. However, ensure that the speed is not too high to avoid potential defects like melt fracture.
Optimizing Barrel Temperature
The barrel temperature needs careful adjustment based on the type of plastic used. A low barrel temperature may result in insufficient melting, affecting fluidity and mold filling. Conversely, excessively high temperatures can cause degradation of the plastic. It’s essential to set the temperature slightly above the melting point to facilitate smooth flow without decomposition.
Importance of Step-by-Step Adjustments
Adjusting machine parameters7 should be done incrementally. This methodical approach allows you to observe changes in filling effectiveness with each adjustment. Start by modifying one parameter at a time, such as increasing injection speed or pressure, and assess its impact before moving on to another adjustment.
Monitoring and Feedback
Real-time monitoring systems can provide feedback on filling effectiveness and highlight areas needing further optimization. Employing technologies like sensors and software analytics helps in fine-tuning the process and achieving consistent quality.
Further Considerations
Apart from these primary settings, consider other factors such as mold temperature, holding time, and pressure. Each of these parameters can contribute to achieving optimal results in the injection molding process. Regularly reviewing and adjusting these settings as part of a maintenance routine8 ensures long-term success in production efficiency and quality.
Increasing injection pressure prevents short shots.True
Higher pressure ensures molten plastic fills the mold completely.
High barrel temperatures improve plastic decomposition.False
Excessive heat degrades plastic, reducing quality and flow efficiency.

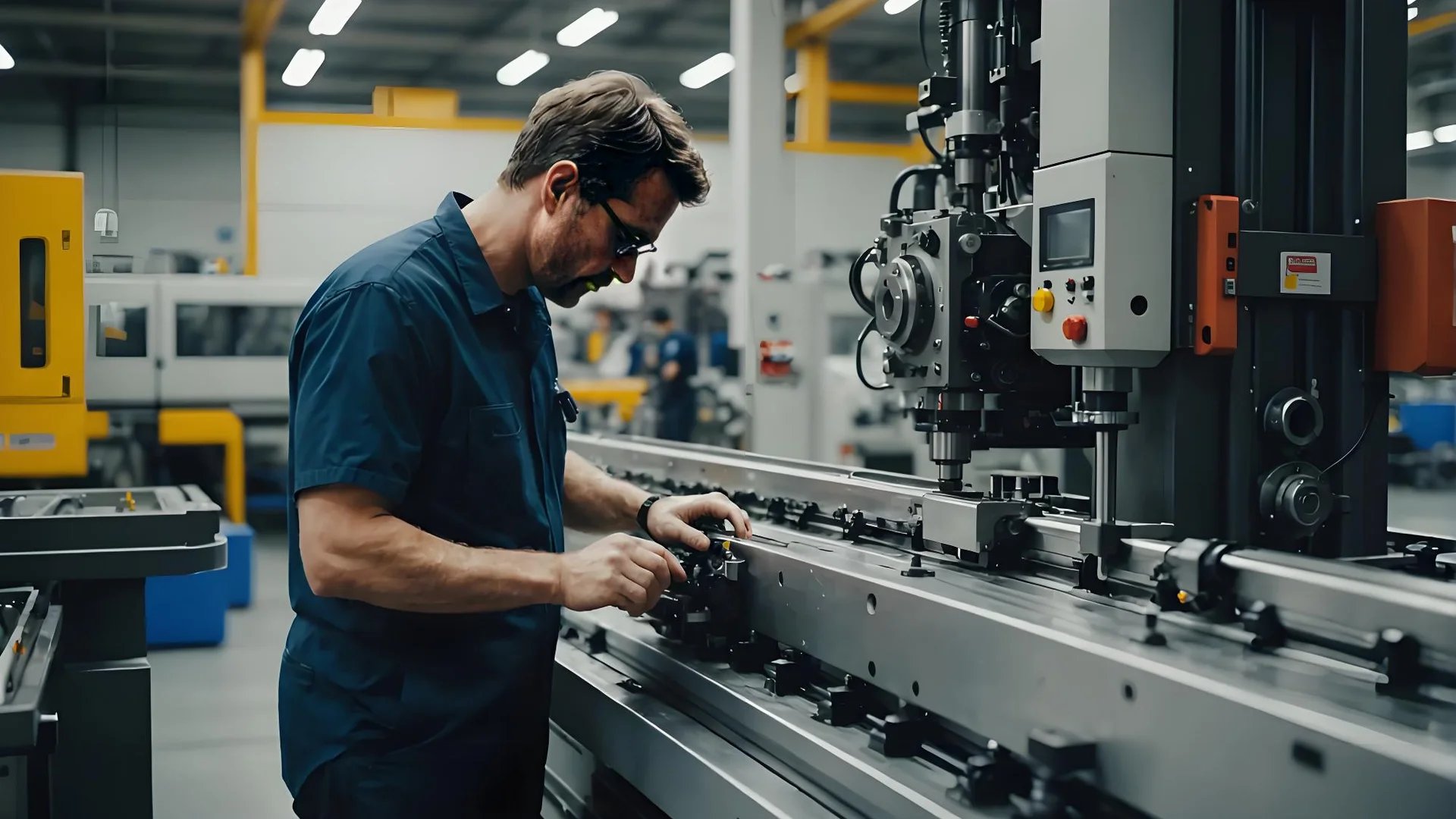

Why Is Regular Maintenance Crucial for Injection Molding Success?
Regular maintenance is the backbone of a successful injection molding operation, ensuring consistent quality and efficiency while minimizing costly downtime.
Routine maintenance in injection molding prevents defects, extends machine lifespan, and ensures optimal performance. It addresses wear and tear, aligns machinery, and maintains precise tolerances necessary for high-quality production.
The Role of Maintenance in Preventing Defects
Injection molding machines are complex systems with numerous moving parts, each critical to the process’s precision. Over time, components such as screws, barrels, and molds can wear out, leading to defects like incomplete filling9. Routine maintenance helps identify these issues early, ensuring that machines continue to operate at peak efficiency.
-
Preventing Wear and Tear: Regular inspections can detect worn parts before they cause significant damage or lead to production errors. Replacing or refurbishing components as needed ensures the machine’s integrity and prolongs its life.
-
Maintaining Precision: Injection molding relies on precise tolerances. Misaligned or worn-out parts can disrupt this precision, leading to defects. Regular alignment checks and calibrations maintain these tolerances, ensuring consistent product quality.
Enhancing Machine Performance through Maintenance
Well-maintained machines not only last longer but also perform better. Regular maintenance includes lubrication of moving parts, cleaning of components, and updating software and controls.
-
Lubrication and Cleaning: Proper lubrication reduces friction between moving parts, preventing wear and enhancing efficiency. Cleaning removes residues that can affect the machine’s operation or contaminate products.
-
Software Updates and Calibration: Keeping the machine’s software up to date ensures it operates with the latest improvements and fixes. Calibration aligns the machine’s output with design specifications, maintaining product consistency.
Economic Benefits of Regular Maintenance
While some may view maintenance as an additional cost, it is an investment that pays off by minimizing downtime and preventing expensive repairs. Consider the following:
| Maintenance Aspect | Benefit |
|---|---|
| Preventative Repairs | Avoids costly emergency repairs |
| Operational Efficiency | Reduces downtime, maximizing output |
| Extended Machine Life | Lowers long-term capital expenses |
Regular maintenance not only ensures smooth operations but also aligns with sustainability efforts by extending machinery lifespan and reducing waste. Exploring expert insights on maintenance strategies can further enhance operational success in injection molding.
Routine maintenance extends machine lifespan.True
Regular upkeep prevents wear and tear, prolonging machinery life.
Ignoring maintenance reduces production efficiency.True
Neglect leads to defects and downtime, lowering output quality.
Conclusion
Understanding the intricacies of incomplete filling can transform your injection molding operations. By systematically adjusting parameters and analyzing results, you can achieve optimal production efficiency and quality.
-
Understand how material fluidity affects mold filling effectiveness.: The fluidity of plastic molding material refers to the ability of plastic materials to flow within the injection mold in the manufacturing of plastic products. ↩
-
Discover strategies to enhance your injection molding efficiency.: Steps to INJECTION MOLDING Process Optimization · 1. Tool functionality examination · 2. Short shot testing · 3. Gate seal studies · 4. Sample parts evaluation/ … ↩
-
Explores how adjusting gate size impacts filling efficiency.: Get the sprue, runner and gate sizes close to ideal the first time around. ↩
-
Guides on optimizing runner systems for improved flow.: Figure out what the runner and sub-runner are in the mold and understand their design guidelines, from basic to advanced. ↩
-
Highlights the need for proper venting to prevent defects.: 5. The presence of a large amount of gas in the cavity can reduce the filling speed, affecting the molding cycle and reducing production … ↩
-
Discusses how to manage design complexity without overspending.: Mold complexity directly relates to higher cost; Balance desired finishes vs. budgets; Specify only necessary tolerances; Match production … ↩
-
Explores detailed procedures for optimizing machine settings effectively.: 1. Temperature Control: · 2. Injection Speed: · 3. Cooling Time: · 4. Plastic Material Selection: · 5. Screw Speed and Back Pressure: · 6. Injection … ↩
-
Highlights how maintenance impacts machine performance and product quality.: However, like any machinery, injection molding equipment requires regular maintenance to ensure optimal performance, longevity, and safety. ↩
-
Explore detailed causes and solutions for incomplete filling issues.: Sometimes the material is too viscous or the mold is too cold to allow the molten material to completely fill the mold before cooling. ↩
