All right, get ready, because today we are really diving deep into a problem that's probably made all of us want to twist a few things ourselves. Yeah. War page in plastic injection molding.
Oh, yeah.

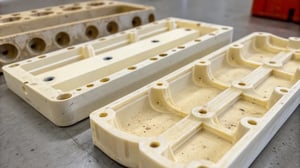

We're talking about those annoying bends and twists that can make your parts just a little bit off, like a wonky phone case or a Tupperware lid that just won't sit right.
I've definitely experienced that.
You've actually sent us a ton of research and notes on this topic.
I have.
Clearly, you're ready to level up those warpage warrior skills.
Absolutely.
So let's Skip Injection Molding 101 and get right to the good stuff. Our intel points to three main culprits behind war mold design, the injection molding process parameters, and of course, those ever so tricky material properties.
It's true. It's like a delicate balancing act. And to get those perfectly flat, stable parts, you have to understand how all these factors interact for sure. It's key.
So let's dive into that first suspect mold design. Your research highlighted some really interesting points about cooling, especially for large, flat products. It seems like just concentrating cooling pipes in the center can be a recipe for disaster.
It's true. It's like baking a giant cookie with just one heating element in the middle. The edges are going to end up undercooked. And in our case, that means uneven cooling, different shrinkage rates, and ultimately warpage.
So what's the solution? Well, should we be aiming for something like a spiral cooling layout?
That's a great starting point. Yeah. Spiral layouts or even conformal cooling channels which follow the contours of the part.
Oh, wow.
Can dramatically improve cooling uniformity. Interesting. Especially for those complex geometries. But it's not just about the layout. We also need to consider things like pipe diameter and spacing.
You mentioned a project in your notes where you ignored those seemingly minor details and ended up paying the price.
I did.
What happened there?
Well, I had this project, and I was so focused on the overall cooling system design that I didn't pay enough attention to the specifics of the pipe dimensions and spacing. I thought, hey, as long as the coolant is flowing, we're good, right? Wrong. The pipes were too small, which restricted the flow, And. And they were spaced too far apart, creating these annoying hotspots. And the results? A batch of beautifully designed yet horribly warped products.
Ouch. That's a painful lesson.
It is.
It seems like even seasoned warpage warriors can make those rookie mistakes sometimes.
Absolutely. It's a constant learning process. Even small details can have a huge impact on the final product.
Right.
But cooling isn't the only mold design factor we need to be mindful of.
Right.
Demolding. The art of getting that part out of the mold without twisting it out of shape is equally important.
Speaking of demolding.
Yeah.
You mentioned in your research that products with those tricky inverted structures are particularly susceptible to warping if mechanisms like sliders aren't perfectly balanced.
Yeah.
What's the best way to approach these designs?
It's all about applying even pressure during ejection. For those complex geometries, standard ejector pins might not cut it.
Yeah.
We might need to incorporate features like sliders or collapsible cores that gently guide the part out of the mold and that prevents uneven forces that can lead to warping.
So it's like we're performing surgery on the mold.
Yeah.
Making sure every cut and every movement is precise.
Right.
But even with the most perfectly designed mold, things can still go wrong during the injection molding process itself.
Yes.
Right.
You are absolutely right.
Especially if we're not careful with those process parameters.
Yes.
And one of the biggest culprits.
Injection pressure.
Well, your notes mentioned something about overpacking a suitcase.
Ah, yes. That's my little analogy to explain how excessive injection pressure can backfire. Okay. Think of it this way. When you overpack a suitcase, everything gets crammed in, creating all sorts of stress and strain. Similarly, if you crank up the injection pressure too high, you force the molten plastic into the mold, creating residual stress within the part and making it prone to warpage once it cools down.
So what's the sweet spot? How do we know how much pressure is too much?
It's not a one size fits all answer.
Okay.
Each material has its own personality when it comes to injection pressure. Some can handle a bit more force, while others are more sensitive.
Okay.
And of course, the geometry of the part plays a role as well.
Right.
Thin walled sections require less pressure than thick ones.
It seems like finding the right pressure balance is a bit of an art form. It is relying on both experience and a deep understanding of the material's behavior.
Absolutely.
But hold on. Your notes mention a time when you cranked the mold temperature way up to improve flow. I did, but it completely backfired.
It did.
What happened there?
Oh, that was a fun experiment. I was working with a somewhat stubborn material that wasn't flowing as smoothly as I wanted it to, so I thought, hey, let's crank up the mold temperature. That should make things more fluid.
Okay.
But alas, it didn't quite go as planned.
What happened?
The higher mold temperature actually increased the shrinkage of the material, leading to.
Don't say it.
More warpage. It was a good reminder that sometimes those seemingly logical solutions can have unexpected consequences.
So it's not always as simple as. Hotter is better.
Exactly. It's about finding that delicate balance between flow and shrinkage.
Right.
Which can vary depending on the specific material and part geometry.
Yeah.
And speaking of finding that right balance, let's not forget about injection speed.
Oh, right. Injection speed.
You know, your research highlighted some concerns about going too fast.
Yeah.
And I have to admit, I've fallen into that trap myself.
Really? What happened? Did you end up with a warpage nightmare?
Not quite a nightmare, but definitely a headache. I was rushing a project and I thought, let's crank up the injection speed and get this done quickly. But the rapid injection created high shear stresses in the plastic melt, leading to uneven distribution within the mold cavity. The result?
Tell me.
Unexpected warpage and a lot of head scratching.
Oh, no.
Trying to figure out what went wrong.
So sometimes slow and steady wins the race.
It does.
Even in the fast paced world of injection molding.
That's right.
It seems like every step of this process is a potential pitfall if you're not careful.
It's true.
But there's one final piece of the puzzle we need to discuss. Material properties.
Yes.
After all, you can have the perfect mold design.
Right.
The most finely tuned process parameters.
It's true.
But if you choose the wrong material, you're still going to have problems.
That's where the fun begins.
Okay.
Choosing the right material can make or break your project for sure. Especially when it comes to warpage. Okay, you know what? I think we've covered enough ground for part one of our deep dive.
Sounds good.
Let's take a quick pause, and in part two, we'll delve into the world of material selection and those pesky shrinkage rates that can really make or break your efforts to conquer warpage.
Sounds good.
How about that?
Let's do it. Welcome back. Before our quick pause, we were knee deep in the battle against warpage, dissecting mold design, and those tricky process parameters.
Yeah.
But now it's time to face the final boss. Material properties.
And this is where things get really interesting. Choosing the right material is like assembling a team of superheroes, each with their own unique strengths and weaknesses.
So let's talk about those superpowers in kryptonite.
Okay.
When it comes to materials.
All right.
You've mentioned shrinkage rates. Before.
Yes.
And your notes highlight polyamide as a notorious offender.
Polyamide, or nylon as it's commonly known, is like that overeager teammate who always jumps into action without thinking things through.
Okay.
Strong versus versatile, but man, does it shrink. We're talking shrinkage rates that can reach up to 2%, which can really wreak havoc on your dimensional stability if you're not careful.
Ouch. That's a lot of shrinkage.
It is.
So polyamide is our impulsive teammate who's the calm and collected hero we should be drafting for our warp free squad?
Well, if we're looking for dimensional stability, certain grades of polycarbonate and pps.
Pps?
Polyphenoline sulfide.
Got it.
Are all stars.
Okay.
They're known for their low shrinkage rates and overall robustness. Think of them as the reliable veterans who always get the job done without any drama.
That's reassuring.
Yeah.
But your research also delves into this concept of anisotropic shrinkage.
Yes.
Shrinkage that varies with direction.
Yes.
That sounds like a whole other level of complexity. Can you unpack that a bit for us?
Imagine stretching a rubber band.
Okay.
It stretches more in one direction than the other. Right? Well, anisotropic shrinkage is kind of like that. The material shrinks differently along different axes, which can lead to some unpredictable warping, especially in long, thin parts.
So it's not just about the overall shrinkage rate, but also how that shrinkage is distributed within the part.
It's true.
And to make things even more challenging, you've noted that crystalline plastics could be particularly tricky when it comes to anisotropic shrinkage.
Crystalline plastics are like those intricate jigsaw puzzles where every piece needs to fit perfectly for the picture to be complete. If the crystallization process, those molecular chains aligning themselves isn't uniform, you can end up with different shrinkage rates within the part leading to those dreaded warpage issues.
So we need to be extra careful with those crystalline plastics.
Yes, we do.
Making sure those molecular puzzle pieces are all in the right place.
That's right.
But wait a minute. Your research mentions a technique called annealing.
Oh, yeah.
That can actually help relieve internal stresses and reduce warpage even after the part has been molded.
Yes.
Sounds like a bit of a magic trick.
Annealing is like giving those stressed out molecular chains a spa day. Okay.
A chance to relax and realign themselves.
About it.
We heat the part to a specific temperature, hold it there for a while.
Okay.
And then slowly cool it down.
Ok.
This controlled cooling allows those Internal stresses to dissipate, making the part more dimensionally stable.
It's amazing. So even if we've made a few mistakes along the way, annealing can come to the rescue.
It can definitely help, but it's not a cure all.
Okay.
And it's important to note that annealing can also affect the material's mechanical properties.
Okay.
So it's not something you'd want to do with every part. It's like secret weapon to be used strategically, not just a free pass to make careless mistakes.
But speaking of secret weapons, your notes mention a technique called sequential ejection that can be incredibly useful for demolding those complex parts with undercuts or intricate features.
Yes.
Can you walk us through that?
Sequential ejection is like a carefully choreographed dance where different sections of the mold are ejected in a specific sequence, preventing those dreaded uneven forces that can lead to warpage.
Yeah.
Imagine a part with a deep undercut. Instead of trying to eject the entire part at once, we can first retract the core that formed the undercut.
Okay.
Then activate the ejector pins in a specific pattern to gently release the part without introducing any undue stress.
So it sounds like we're turning the demolding process into a delicate ballet.
Yeah.
Making sure every step is perfectly timed and executed exactly.
Sequential ejection requires a bit more planning and finesse.
Okay.
But it can be a game changer for those complex geometries.
Okay. So we've explored a whole arsenal of strategies to combat warpage.
We have.
From choosing the right materials to optimizing our cooling systems and mastering the art of demolding.
It's true.
I'm definitely feeling like a more informed warpage warrior now.
Me too.
But I have to ask. Is there a single silver bullet, A magic formula that guarantees warp free parts every time?
I wish there were.
Yeah.
Unfortunately, it's not that.
Preventing warpage is a holistic endeavor. A constant dance between design material selection and process optimization.
So it's not about finding one perfect solution.
No.
But rather about understanding the interplay of all these factors.
Yes.
And making informed decisions at every stage of the game.
You got it. It's about taking a holistic approach.
Okay.
Considering the entire life cycle of the part, from the initial design concept to the final demolding step, and making sure all those elements are working in harmony.
It sounds like becoming a true warpage warrior requires not just technical knowledge, but also a healthy dose of intuition and a willingness to experiment.
Absolutely.
But, you know, I'm starting to feel like we're missing something. Here.
What's that?
We've talked about all the things we can control, right? The design, the materials, the process. But what about the things we can't control?
Like?
Like the ambient temperature of the molding environment or even the variations within a batch of raw materials.
You've hit on a crucial point. Even with the most meticulous planning and execution.
Yeah.
There will always be external factors that can throw a wrench into our plans.
Of course.
And that's where experience and adaptability come into play.
So it's not just about eliminating warpage entirely, but ra about minimizing its impact and developing strategies to adapt to those inevitable variations that come with the territory.
Exactly. It's about understanding the limitations of our control.
Okay.
And developing robust processes that can handle those inevitable fluctuations.
It seems like the journey to conquer warpage is never truly over.
No, it's not.
It's a constant process of learning, adapting, and refining our skills.
That's right.
But I have to admit, I'm feeling a lot more confident about facing those warpage challenges now.
D2.
And you know what? I think we've crammed enough knowledge into this part of our Deep Dive. Okay, let's take another quick break. When we come back, we'll tackle some of the specific questions you sent in blind. All this warpage wisdom to real world scenarios. Sounds good. All right, let's wrap up our war page Deep Dive by tackling some of your specific questions. You've really put together a brain bending collection. I tried this first one caught my eye.
Okay.
It's about varying wall thicknesses. The listener wants to know if that can increase warpage.
It can.
I have a feeling I know the answer. But what do you think?
Well, let's just say that having drastic differences in wall thickness is like building a house with one side made of straw.
Okay.
And the other of bricks.
All right.
When things heat up or cool down in our case. Right. You're gonna have some serious structural issues.
So those uneven cooling and shrinkage rates come back to bite us again.
They do.
But in the real world, we can't always have perfectly uniform wall thicknesses. Right.
That.
What are some workarounds when you're stuck with those unavoidable variations?
That's where some clever design tricks come into play.
Okay.
Think of it like, strategically reinforcing those weaker areas. Ribs, gussets. These are our secret weapons for creating more even strength and stiffness throughout the part.
So it's like adding extra support beams to our house of straw and brigs.
Exactly.
I like it. Okay. What about using fillers?
Okay.
The listener's curious about their impact on warpage.
Right. Hero or villain, Fillers are tricky.
Okay.
They can either be your best friend or your worst enemy.
Okay.
Depending on the specific filler and how much you use. Some, like glass fibers, are like adding steel reinforcements to our structure.
Okay.
They can actually reduce shrinkage and boost dimensional stability.
So glass fibers are on team. Warp free.
They are.
What about fillers that we should avoid?
Well, some fillers, like Talc, can actually increase shrinkage, which is the opposite of what we want. It's like adding those flimsy balsa wood supports.
Yeah.
They might look like they're helping, but they'll just buckle under pressure.
All right, so we need to choose our fillers carefully.
Yes.
Making sure they're actually fighting on our side. Now, another question that popped up is about the gate location. Does it really matter where the molten plastic enters the mold?
The gate location is like the starting line for our molten plastic marathon.
Okay.
If we choose the wrong starting point, we can end up with runners bunching up.
Yeah.
Taking detours and ultimately finishing the race at different times.
So we need to ensure our plastic melt has a smooth and even flow path.
Exactly. We want to avoid any dead zones or areas where the melt hesitates.
Okay.
A strategically placed gate, often in a central location, helps to ensure that the entire mold cavity fills uniformly and at a consistent rate.
Okay. One last question before we wrap up.
All right.
This listener is wondering if there are any post molding processes that can help reduce warpage.
Oh, yeah.
Kind of like a last ditch effort to salvage those not so perfect parts.
Well, there's annealing, which we talked about earlier, and it's like giving those stressed out molecules a relaxing massage, helping to relieve some of that built up tension. But honestly, it's always better to get things right during the molding process itself rather than relying on post molding fixes.
So prevention is key. It is just like with most things in life.
Absolutely.
You know, we've covered so much ground in this deep dive we have, from the intricacies of mold design to the fascinating world of material properties. I'm definitely feeling like a more informed warpage warrior now.
Me too. But as we've learned, the journey to conquer warpage is never truly over.
That's true.
It's a constant evolution. And I'm sure there are even more advanced techniques and materials just waiting to be discovered.
Well, we'll have to save those for another deep dive.
We will.
But in the meantime, I want to thank you for joining us on this warp filled adventure.
It's my pleasure.
And remember, the next time you encounter a wonky phone case or a twisted Tupperware lid, you'll know exactly what went wrong.
You will.
And how to fix it.
That's right.
Thanks for joining
