All right, so you've sent over this whole stack of info on nylon for injection molding. We're talking nylon 6, 66, 11, 12, 46, even those high performance 16, 90, and 10P types.
Yeah, there's a lot to cover.
Let's say you're considering nylon for a project. By the end of this deep dive, you'll be able to pick the right one and avoid some common pitfalls.
That's the goal. Choosing the right nylon impacts everything from how easily it's processed to how well the final product actually performs.
You know, one of the sources starts with this great line, and I love this picture. A world where one material fits many uses. That's nylon and injection molding. But then it goes on to list all these different nylon. So why is that?
Well, that quote perfectly captures nylon's versatility. Right, and that comes from some inherent properties. Strength, abrasion, resistance, low friction. Okay, but like a toolbox full of different wrenches, each type of nylon kind of shines in specific situations. Oh, some handle heat better. Others resist water absorption, things like that.
Okay, that makes sense. So let's dive into some specifics. We got to start with the classics, Nylon 6 and 66.
Right.
What's the real difference between these two? They always seem to be neck and neck in popularity.
It's a bit like Coke versus Pepsi. Right? Everyone has their favorite. One of the key differences is their melting point. Nylon 6 melts at around 220 degrees Celsius, while Nylon 66 is closer to 260.
So Nylon 66 can take the heat a bit better.
Exactly. That means it's the better choice for high heat applications. But here's the trade off. Nylon 6's lower melting point makes it easier to work with during processing.
Interesting. Looking at this comparison table, I see Nylon 66 also boasts higher tensile strength. So for something like gears that need to be super durable, Nylon 66 would be the winner. But. But if I'm making, say, a plastic housing that doesn't need to withstand a ton of force, Nylon 6 might be the more practical, cost effective choice.
You got it. You're thinking like a true engineer already. But there's another factor that often comes into play, especially in injection molding. Water absorption.
Right. The sources mention that, but how big of a deal is it, really? Does it just mean the part gets a bit softer if it gets wet?
It's more insidious than that. Think of water molecules acting like tiny wedges, pushing the nylon molecules apart. This is what a plasticizer does. It Reduces strength and increases flexibility.
Ah, okay. So it's not just about getting softer. The whole part could actually warp or change dimensions if it absorbs too much water.
Exactly. Imagine you've designed a precision part with tight tolerances. Then it gets humid, absorbs water, and suddenly nothing fits anymore. Not good.
That's a nightmare scenario. So which nylons are the best at resisting this water absorption?
That's where nylon 11 and 12 really shine. They're the champions of dimensional stability because their water absorption rates are much lower compared to types like 6 or 66.
Okay, so for anything exposed to moisture or humidity, 11 or 12 are the go to options. Got it. Now I'm looking at this image of nylon samples under some serious testing equipment. It looks intense. This brings us to thermal properties. Right.
You're right. This is where we see the huge EU range of possibilities with nylon.
Yeah.
Thermal properties are co. In determining where each type can be used. Just look at this table of melting points.
Wow. Nylon 6T has a melting point of 370 degrees Celsius. That's almost twice the boiling point of water. What kind of magical properties let it survive that kind of heat?
It's pretty remarkable. That's why you find nylon 6T in car engine components. The kind that need to withstand extreme temperatures without failing. Speaking of heat, we should also talk about glass transition temperature or 2.
Okay, glass transition temperature, in plain English, what does that even mean?
Think of it as the temperature where the nylon goes from hard and rigid to soft and rubbery. Kind of like chocolate. Solid at room temperature, but melt in your mouth soft when it warms up.
So a higher tube means it stays strong even when things heat up. If I need a part that won't turn into a gummy mess under pressure, I want a high Teague.
You're catching on quick. And that's where those high performance nylons like 6T really come into their own.
All right, we've covered the popular choices and touched on some high temp heroes. Now, there's one more category that sounds particularly intriguing. Aromatic nylon. What makes this type so special that it gets its own section?
Aromatic nylon is like the superhero of the nylon world. It boasts incredible strength, wear resistance, and overall durability. You'll often find it in demanding industries like automotive and electronics, where components absolutely cannot fail.

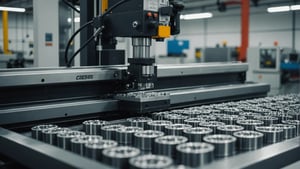

I'm looking at this image of an industrial setup, and it's clear this stuff is serious business. Lots of heavy duty machinery and high tech equipment. What's going on there?
Well, one of the challenges with aromatic nylon is its Processing temperature, we're talking 300 to 350 degrees Celsius. That's hot enough to melt lead.
Yikes, that's intense. Definitely not something you'd want to try at home with a DIY injection molding kit. So what kind of specialized equipment are we talking about here?
You need machines capable of reaching and maintaining those extreme temperatures, along with very precise control over the molding process to prevent the material from degrading. It's a delicate dance, but when done right, you get parts that can truly take a beating.
So it's not the most beginner friendly nylon out there. When would you absolutely need to use aromatic nylon? What are some examples of where it really shines?
Think high performance engine components, gears under constant stress, or electronic parts that need to withstand extreme temperatures or harsh chemicals. Aromatic nylon is the material of choice when failure is simply not an option.
Okay, that makes sense. It's like the difference between a regular hammer and titanium one forged in the heart of a volcano. You use the titanium hammer when you absolutely need to break through some serious barriers.
That's a great analogy. You wouldn't use a regular hammer to build a spaceship, would you?
Definitely not. So we've covered a lot of ground here, from the everyday workhorses like Nylon 6 and 66 to the high temperature heroes like 6T and the super tough aromatic nylons. If you're feeling a bit overwhelmed with all this information, what are the key takeaways you should keep in mind?
Well, the most important thing is to remember that choosing the right nylon is absolutely crucial for your project's success. There's no one size fits all solution. Each type has its strengths and weaknesses, and understanding those nuances is what separates the amateurs from the pros.
So it's not just about picking a nylon that sounds cool or looks good in the picture. You really need to think about how it will perform in the real world. Right?
Exactly. You have to think like an engineer. Start with the end in mind. What's the intended application of the part? What kind of environment will it be operating in? What are the critical performance requirements?
Okay, let's play a little what if game. What if I'm designing a gear for a high speed application that generates a lot of heat? What are my top considerations?
Well, in that case, you'd want to pay close attention to the melting point and glass transition temperature. Remember, you need a nylon that can withstand the heat without softening or deforming. Something like nylon 6T or even an aromatic nylon might be a good choice. Depending on the Specific temperature range.
Got it. High heat means looking at those high temp nylons. What if I'm designing a part that needs to maintain precise dimensions even in humid conditions?
Ah, then water absorption becomes a major factor. You'd want to go with nylon 11 or 12, known for their low water absorption and excellent dimensional stability.
And what if I need something incredibly strong and durable, but it doesn't need to withstand high temperatures? Is aromatic nylon still a good choice even with its processing challenges?
That's a great question. In that case, you might be able to achieve the desired strength and durability with a more readily processable nylon like nylon 66, perhaps with added reinforcements like glass fibers.
Aromatic nylon is fantastic, but it's not always the most practical or cost effective solution. So it sounds like the first step is really to define the needs of your project. Figure out what you're trying to achieve before you even start looking at specific nylons.
Exactly. It's like solving a puzzle. You need to gather all the pieces before you can start putting them together. And speaking of putting things together, let's talk about processing. We've touched on the challenges of working with different nylons, but are there any general tips or best practices that apply across the board when it comes to injection molding?
That's a great question, because even if you pick the perfect nylon, you still need to make sure you're handling it correctly during processing, right?
Absolutely. One of the most important things to remember is that nylon is hygroscopic, meaning it absorbs moisture from the air. We talk about how that affects the final product, but it can also cause problems during molding itself.
So you're saying that even if I choose a nylon that's known for low water absorption, I still need to be careful about moisture?
Exactly. It's all about minimizing risk and ensuring a smooth process. If the nylon pellets are too moist, you can end up with defects in the final part, like splay marks, bubbles, or even degradation of the material.
That doesn't sound good. So what's the solution? Do I need to keep my nylon pellets in a hermetically sealed vault?
Not quite that extreme, but pre drying is crucial. It's basically baking the moisture out of the pellets before you even start molding. This is especially important for nylons known for higher water absorption, like Nylon 6 and 66.
So it's like preheating the oven before you bake a cake.
Perfect analogy. It ensures that the material is properly dried and ready to go, preventing those moisture related Defects we talked about. Now, besides moisture control, another crucial factor is mold temperature.
Ah, right. The sources mention that. But how does the mold temperature actually affect the nylon during processing?
Mold temperature plays a key role in the cooling and crystallization of the nylon, which ultimately affects the properties of the final part. If the mold is too hot, the part might warp or have surface defects.
And if it's too cold, you might.
Not get proper crystallization, leading to reduced strength and toughness. It's like trying to make ice cream without freezing it properly. It'll be soft and mushy instead of firm and scoopable.
So finding that sweet spot for mold temperature is crucial. But is it something you can just look up in a chart, or does it depend on other factors?
It's often a matter of experimentation and fine tuning based on the specific nylon and the desired outcome. Experienced processors have a feel for it, but even then, some trial and error might be necessary to dial it in perfectly.
Okay. Pre drying and mole temperature control. Two big things to remember. Are there any other processing parameters our listeners should be aware of? What about injection pressure and speed?
Those are important, too. Too much pressure can cause flashing or short shots where the molten nylon squishes out of the mold or doesn't fill it completely. Too little pressure might result in incomplete filling, leaving you with a weak or misshapen part.
And injection speed? I imagine that affects how the molten nylon flows into the mold.
Right. You're exactly right. Injection speed can impact things like surface finish, weld lines where different flows of nylon meet, and even the overall structural integrity of the part. It's all about finding the right balance between filling the mold quickly and allowing the material to flow smoothly and evenly.
So it sounds like there's a lot more to nylon injection molding than just picking the right material. Yeah, it's a whole science in itself. It really is. It's like conducting an orchestra. Yeah, you have all these different instruments, and each one needs to be played at the right time with the right technique to create a harmonious sound.
That's a beautiful analogy. And just like a skilled conductor, experienced processors know how to fine tune all the variables to get the best possible results from each nylon. But even with all the right knowledge and skills, sometimes things go wrong. Are there any common mistakes people make when working with nylon that our listeners should try to avoid?
That's a great question. We've talked about the importance of pre drying, but I imagine that's something people might overlook if they're new to nylon injection molding.
You're right. Not Properly drying the material is one of the biggest mistakes I see. It seems like a simple step, but it's crucial for preventing those pesky defects and ensuring the nylon performs as expected.
Right. Because even a small amount of moisture can really mess things up. It's like adding a pinch of salt to a delicate dessert recipe. Suddenly everything tastes off.
Exactly. And another common mistake is not controlling the mold temperature effectively.
Yeah.
It's not enough to just have a thermometer. You need a system that can accurately control and maintain the desired temperature throughout the entire molding cycle.
So it's not a set it and forget it kind of situation. You need to constantly monitor and adjust to ensure the mold stays within that sweet spot.
Precisely. Think of it like baking a souffle. If the oven temperature fluctuates too much, it'll collapse and all your hard work will be ruined.
Okay. Moisture control, mold temperature. Are there any other pitfalls to watch out for? What about choosing the wrong type of nylon for the application? I imagine that could be a costly mistake.
It definitely can be. Sometimes people get caught up in the cost or availability of a particular nylon and don't fully consider the performance requirements of the part. They might go with Nylon 6 because it's cheaper, but then realize it doesn't have the strength or heat resistance they need for their application.
So it's important to resist the temptation to cut corners. Choosing the right nylon up front can save you a lot of headaches and wasted resources down the road.
Absolutely. Don't be pennywise and pound foolish. Think long term. Invest in the right material from the start, and you'll be rewarded with a product that performs as intended.
It all comes back to that initial step we talked about. Defining the needs of your project. Once you know exactly what you're trying to achieve, you can start narrowing down your options based on the specific properties of each nylon.
Exactly. It's all about matching the material to the demands of the application. And if you're ever unsure, don't be afraid to consult with experts. Experienced processors and material suppliers can be invaluable resources, helping you navigate the complexities of nylon and guide you toward the best possible solution for your project.
That's a great point. There's a whole community of nylon experts out there ready to share their knowledge and help you succeed. And speaking of knowledge, I know our sources mentioned there are even more resources out there about specific nylon types and their applications.
That's right. This deep dive has given you a solid foundation. But if you want to really geek out on nylon and become a true expert. Those additional resources would be a great next step. You can explore topics like different fillers and additives that enhance nylon's properties, delve deeper into specific processing techniques, or even research the latest advancements in nylon technology.
Consider this deep dive your launchpad into the fastest, fascinating world of nylon. There's so much more to discover.
Exactly. And remember, the world of material science is constantly evolving. So keep learning, keep experimenting, and who knows, maybe you'll be the one discovering the next big thing in nylon technology.
Maybe we'll be doing a deep dive into your groundbreaking research someday, but until then, we hope you've enjoyed this journey into the surprisingly complex world of nylon.
We've covered a lot of ground, from the basic properties to the nuances of processing, and even some cautionary tales about common mistakes. The key takeaway Nylon is a versatile and powerful material, but with great power comes great responsibility. Choose wisely, process carefully, and always keep learning.
And on that note, we'll wrap up this deep dive into the wonderful world of nylon. Until next
