All right, welcome to our deep dive into nitriding treatment.
Ooh, nitriding.
It's pretty cool stuff.
Yeah.
If you're listening to this, you probably work with molds or maybe you're just really into material science.
Right. Or maybe just how things work.
Yeah, exactly how things work. And we're going to go deep. We're going to look at the steps involved.
Yeah. Like, how does it even work?
How it compares to other methods.
Right. Is it the only way to harden a mold?
And we're going to look at some challenges that can come up.
Uh huh. Because nothing's perfect.
Exactly. So let's start with the basics. What is nitriding?
Okay, so nitriding is a process where we add nitrogen to the surface layer of a mold.
Okay.
To make it harder and more durable.
Okay. So it's not about like adding a coating or something?
No, no. It's like we're actually changing the metal itself.
Wow.
Yeah, we're changing the composition of that surface layer.
So you're saying it's like we're giving an old mold a new life?
Exactly. Like it's about to be thrown out and then bam. Nitriding.
Wow. So it's not a quick fix though, right?
No, it's a whole process. Lots of steps. I bet each one needs to be done really carefully.
I can imagine. So walk us through it. What are the steps involved?
Okay, so first we have mold acceptance and preparation.
All right.
That means we check the mold for any defects, we clean it really well, and we take precise measurements.
So you can't just like, throw any old mold in there?
No, no. We gotta make sure it's ready.
Gotcha.
Then there's pre treatment.
Okay. What does that involve?
So that might include things like tempering, which means we heat and cool the mold in a specific way.
Hmm. Interesting. Why is that step so important?
Well, it helps to make sure the mold is dimensionally stable.
Dimensionally stable?
Yeah, so that it doesn't change shape too much during the nitriding process.
Ah, so it's like minimizing the risk of warping or something.
Exactly.
Yeah. You got it.
So it's kind of like prepping a canvas before you paint on it, right?
Yeah. You don't want any imperfections messing things up.
Exactly. So what comes after pre treatment then?
We have anti seepage treatment.
Anti seepage treatment? Yeah, this is where we protect any areas of the mold that we don't want to be nitrited.
Okay. So it's like selectively hardening only the parts you Want? Yeah.
Like, imagine putting sunscreen on only certain parts of your skin.
Okay, that's a good analogy. So you're basically shielding those areas from the nitrogen.
Exactly. We use a special protective layer, usually graphite.
Interesting. So once a mold is prepped, protected, and ready, what's next?

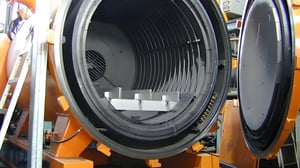

Then it's time for furnace loading.
Furnace loading?
Yep. This is where we carefully place the molds inside the furnace, making sure they're evenly spaced and secure.
Okay, and why is the arrangement so important?
Because we need to make sure there's even gas flow throughout the furnace.
Ah, I see. So it's about making sure all parts of the mold get the same treatment.
Exactly. Inconsistent gas flow could lead to uneven hardening.
Gotcha. So with the mold in place, what happens next?
Now comes the main event, the nitriding itself.
I've been waiting for this.
So we heat the mold to a specific temperature.
How hot are we talking?
Usually between 500 and 580 degrees Celsius.
Wow, that's hot.
Yeah. And we hold it there for a certain amount of time.
And what's happening to the metal at that temperature?
At that temperature, the nitrogen atoms can penetrate the metal's surface.
Okay.
And they start to form a really hardware resistant layer.
So it's like the nitrogen is diffusing into the metal.
Exactly. And the time we hold it at that temperature affects how deep that layer becomes.
Interesting. So it's not just about the temperature. It's about the time too.
Right. And we also have to control the gas composition really carefully.
Wow. There's a lot going on in that furnace.
Yeah, it's like a carefully choreographed dance with the metal.
So once the nitriding is done, what's the next step?
Then we move on to the cooling phase.
Cooling?
Yeah. This is where we slowly and carefully cool the mold down.
Why is that important?
Because if we cool it too quickly, it could create internal stresses in the.
Metal, and that could lead to warping or cracking. Okay, so it's like baking a cake. You can't just take it straight out of the oven.
Perfect analogy.
So after all that, what's the last step?
The final step is the final inspection.
The moment of truth.
Exactly. We check the dimensions, the hardness, and the overall quality of the nitrite mold.
Making sure it meets all the specifications.
Right, and if it doesn't? Well, then we might need to adjust the process and try again.
Wow. It sounds like a really precise and involved process.
It is. But the results are worth it.
Absolutely. So we've talked about how nitriding works, but why go through all this trouble? Good question. Why not just use a different hardening method? Like I've heard of carburizing?
Yeah, carburizing is another option, but it's different.
How so?
Well, nitriding has some unique advantages.
Like what?
Well, one big one is that it preserves the core properties of the metal while hardening the surface.
Okay, I'm not sure I follow.
So imagine a creme brulee.
Ooh, now you're talking about language.
It has that hard, crackly top layer, right? Yes. But underneath it's still soft and creamy.
Delicious.
Exactly. That's kind of like what nitriding does to metal.
Okay, so you get the best of both worlds. A tough exterior, but a flexible interior.
Precisely. And that makes it really useful for certain applications.
Okay, this is fascinating. I'm eager to hear more about those applications and how nitriding stacks up against other methods.
We'll definitely dive into that in more detail. But first, let's finish our creme brulee analogy.
Okay, I'm all ears. And maybe stomach too.
So with carburizing, you harden the whole piece. The whole thing, not just the surface. So yeah, it's harder overall, but it could be more brittle too.
Oh, so it might crack more easily.
Yeah, exactly.
Okay, so with nitriding, you're saying you get that surface hardness, but you don't lose the flexibility underneath.
Right. It's like reinforcing the walls of a building, but the inside is still flexible.
I see. That's a good analogy. So what kind of applications is nitriding really good for?
Well, think about the automotive industry.
Okay. Cars.
Yeah. Especially high performance engines.
Oh, yeah. Those things are under a lot of stress.
They are constant friction, heat and pressure.
So how does nitriding help?
Well, take gears, for example.
Okay.
They're constantly meshing and grinding against each other. Nitriding creates that wear resistant layer so they last much longer.
Ah, so less friction, less wear and tear.
Exactly. And that means the engine runs more efficiently too.
So you get more power and better fuel economy.
Yeah, exactly.
That's pretty impressive.
And it's not just gears. Think about camshafts and cylinder liners.
Okay. Those are critical components.
They are. And they benefit from nitriding too.
So it's not just about going fast. It's about making those engines last.
Right. And about safety, too.
Safety? How so?
Well, if those components wear down too quickly, they could fail.
Oh, yeah, that's not good.
Especially in something like the braking system. So nitriding helps to prevent those kinds of failures.
Okay, so it's like a safety feature built into the metal itself.
Exactly. And it's not just cars. Think about aerospace airplanes. Yeah. Turmine blades in jet engines operate under extreme conditions.
Super hot and spinning really fast.
Exactly. Nitriding helps them to withstand that stress and heat.
Wow. So it's keeping us safe in the air too.
Right. And then there's the medical field.
Okay, medical devices.
Yeah. Things like surgical instruments and implants.
They need to be super strong and sterile.
They do. And nitriding can help with both of those things.
That's amazing. So nitriding is literally everywhere.
It is. It's a very versatile process.
We're just scratching the surface of its potential.
Right, right. As technology advances, we'll find even more uses for it.
I'm sure we will. Okay, so we've talked about the benefits of nitriding, but what about the different types?
Ah, yes. There are a few ways to do it.
Okay, tell me more.
So the method we've been discussing so far with the furnace and the controlled atmosphere, that's called gas nitriding.
Gas nitriding. Okay.
It's the most common type and it's relatively simple.
So the classic method.
Exactly. But it does have some limitations.
Like what?
Well, sometimes it can create a surface layer that's a bit brittle.
Brittle? So it might crack under stress.
Yeah, especially with certain types of steel.
Okay, so it's not the best choice for everything. Right.
But if you need even greater hardness, there's salt bath nitriding.
Salt bath nitriding. Now that sounds interesting.
It is. Instead of a gas, we use a molten salt bath.
Molten salt? Wow.
Yeah. It contains nitrogen bearing compounds.
And that gives you even greater hardness.
It does. And it also creates a more uniform layer.
Okay. But I'm guessing it's more expensive.
You're right, it is. And you need to be careful about corrosion.
So it's a trade off. Higher performance, but more cost and complexity.
Exactly. And then there's plasma nitrating.
Plasma nitriding. What's that?
It's a more advanced technique. We use plasma to introduce the nitrogen plasma.
Like what they use in TVs.
It's similar. Yeah. It's a highly energized gas.
Okay.
And we can control it really precisely to create specific surface properties.
You can fine tune the hardness.
Exactly. And it operates at lower temperatures, so.
Less risk of warping.
Exactly. But it is more expensive.
Of course. So we've got gas nitriding, salt bath nitriding and plasma nitriding.
Those are the main ones.
Wow. A whole toolbox of options.
Exactly. And choosing the right one depends on the application.
Right. You got to consider the material, the cost, the desired properties.
You got it. It's all about finding the best fit.
So with all these different techniques, what are some of the challenges that can come up with nitriding in general?
Well, we've already touched on a few of them.
Like brittleness and dimensional changes.
Exactly. Those are important considerations, and I imagine.
There are others too.
There are things like surface contamination if the pre treatment isn't done properly.
Okay.
And the need for specialized equipment and.
Expertise, which can be expensive.
Right. So nitrating is powerful, but it's not a magic bullet.
You gotta know what you're doing.
Exactly. But the good news is that the technology is constantly improving.
So what's next for nitriding? What can we look forward to?
Well, one area of research is developing new alloys specifically for nitriding.
So even better materials.
Exactly. Materials that can achieve even higher hardness and wear resistance.
Wow. So pushing the boundaries of what's possible.
Exactly. And we're also seeing advancements in process control.
So even more precision.
Right. And of course, there's the push for.
Sustainability, making the process more environmentally friendly.
Exactly. So the future of nitriding is looking very bright.
I'm excited to see what comes next. Well, I think this has been a fantastic deep dive into nitriding.
I agree. We've covered a lot of ground.
We've learned how it works, the different techniques, the benefits and the challenges.
And a glimpse into the future.
Exactly. So the next time you see a tool that's super strong or a machine that runs like a dream, or a.
Medical implant that saves a life, remember.
The power of nitriding.
It's quietly shaping the world around us.
Absolutely. Well, thank you so much for joining us on this deep dive into nitriding.
It's been a pleasure.
And to all our listeners, keep on exploring the wonders of material science. So what are some of the things to watch out for?
Well, like we talked about before, that brittleness.
Right.
Especially with gas nitriding, you get that hard surface, but it could crack if it gets hit too hard.
Like a really strong shield that shatters.
Yeah, kind of.
Okay, so you gain hardness, but you might lose some toughness.
Exactly.
So it's a balancing act.
It is. You gotta choose the right technique for the job.
Right. Material matters.
Absolutely.
Those dimensional changes.
Yeah. Those tiny shifts in the metal.
Yeah, they're usually small, but they can be a big deal.
Especially for those really precise parts.
Exactly. Like if you're making a mold for a tiny medical device.
Right. Every micron counts.
Exactly.
So you're saying you need to be super careful with your measurements.
Absolutely. Every step of the way.
Okay. What else?
Well, contamination can be a problem.
Contamination?
Yeah, if the pre treatment isn't done right.
Ah, so you can mess up the whole process.
Yeah. You could end up with impurities in the surface.
That makes sense.
And of course, there's the cost factor.
Right. Nitriding isn't exactly cheap.
It's not. You need specialized equipment and expertise.
So it's not a DIY kind of thing?
Not really.
Okay. So nitriding has its benefits, but it's not without its challenges.
That's true. But the future is really exciting.
Oh yeah? How so?
Well, they're developing new alloys specifically for nitriding.
Wow. So even tougher materials. Yeah. Imagine materials that are super hard, but also really tough.
That's the dream.
It is. And we're also seeing advancements in process control.
So even more precision.
Exactly. And of course there's the push for sustainability.
Right. Making the process greener.
Absolutely. So there's a lot to look forward to.
I can't wait to see what they come up with next. Well, this has been an awesome deep dive into nitride.
I agree.
We've learned a lot from the basics to the challenges and the exciting future.
Yeah. It's amazing how this process is shaping the world around us.
It really is. So the next time you see a tough tool or a smooth running engine.
Or a life saving medical device, think.
About the power of nitriding.
It's often hidden, but it's making a big difference.
Absolutely. Well, thanks for joining us on this journey.
It's been a pleasure.
And to all our listeners, keep on exploring the wonders of material
